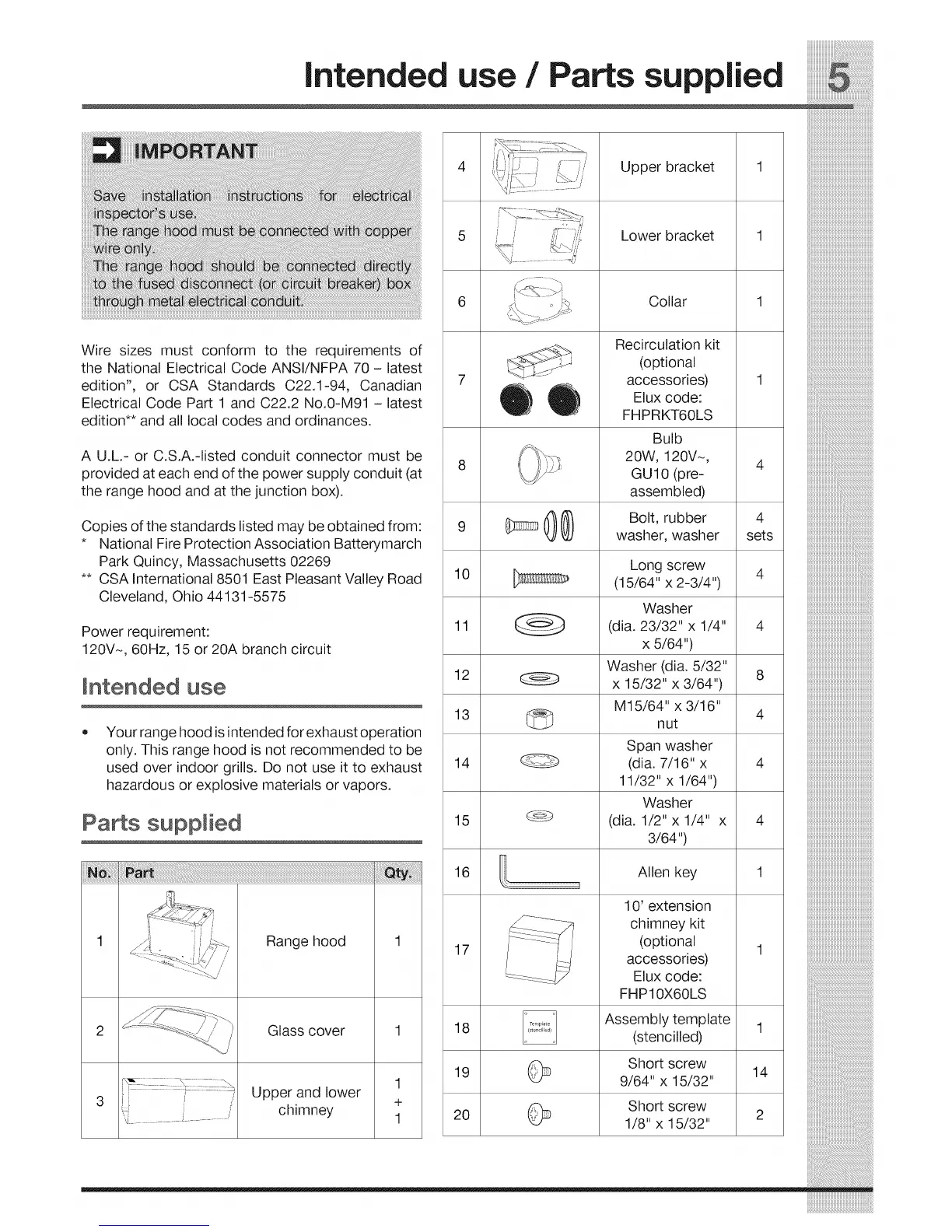

intended use / Parts supplied

Wire sizes must conform to the requirements of

the National Electrical Code ANSI/NFPA 70 - latest

edition", or CSA Standards C22.1-94, Canadian

Electrical Code Part 1 and C22.2 No.0-M91 -latest

edition** and all local codes and ordinances.

A U.L- or C.S.A.-listed conduit connector must be

provided at each end of the power supply conduit (at

the range hood and at the junction box).

Copies of the standards listed may be obtained from:

* National Fire Protection Association Batten!march

Park Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road

Cleveland, Ohio 44131-5575

Power requirement:

120V_, 60Hz, 15 or 20A branch circuit

Intended use

Your range hood is intended for exhaust operation

only. This range hood is not recommended to be

used over indoor grills. Do not use it to exhaust

hazardous or explosive materials or vapors.

PeAs supplied

Range hood

Glass cover

(optional

accessories)

Elux code:

FHPRKT60LS

Bulb

8 20W, 120V_, 4

GU10 (pre-

assembled)

_(_(_ Bolt, rubber 4

washer, washer sets

10 Long screw 4

(15/64" x 2-3/4")

Washer

11 (die. 23/32" x 1/4" 4

x 5/64")

12 Washer (die. 5/32" 8

x 15/32" x 3/64")

M15/64" x 3/16"

13 @ nut 4

Span washer

14 _ (die. 7116" x 4

11/32" x 1/64")

Washer

15 @ (die. 1/2" x 1/4" x 4

3/64")

16 Allen key 1

Upper and lower

chimney

10' extension

chimney kit

(optional

accessories)

Elux code:

FHP10X60LS

18 Assembly template 1

(stencilled)

Short screw

19 9/64" x 15/32" 14

Short screw

20 1/8" x 15/32" 2
