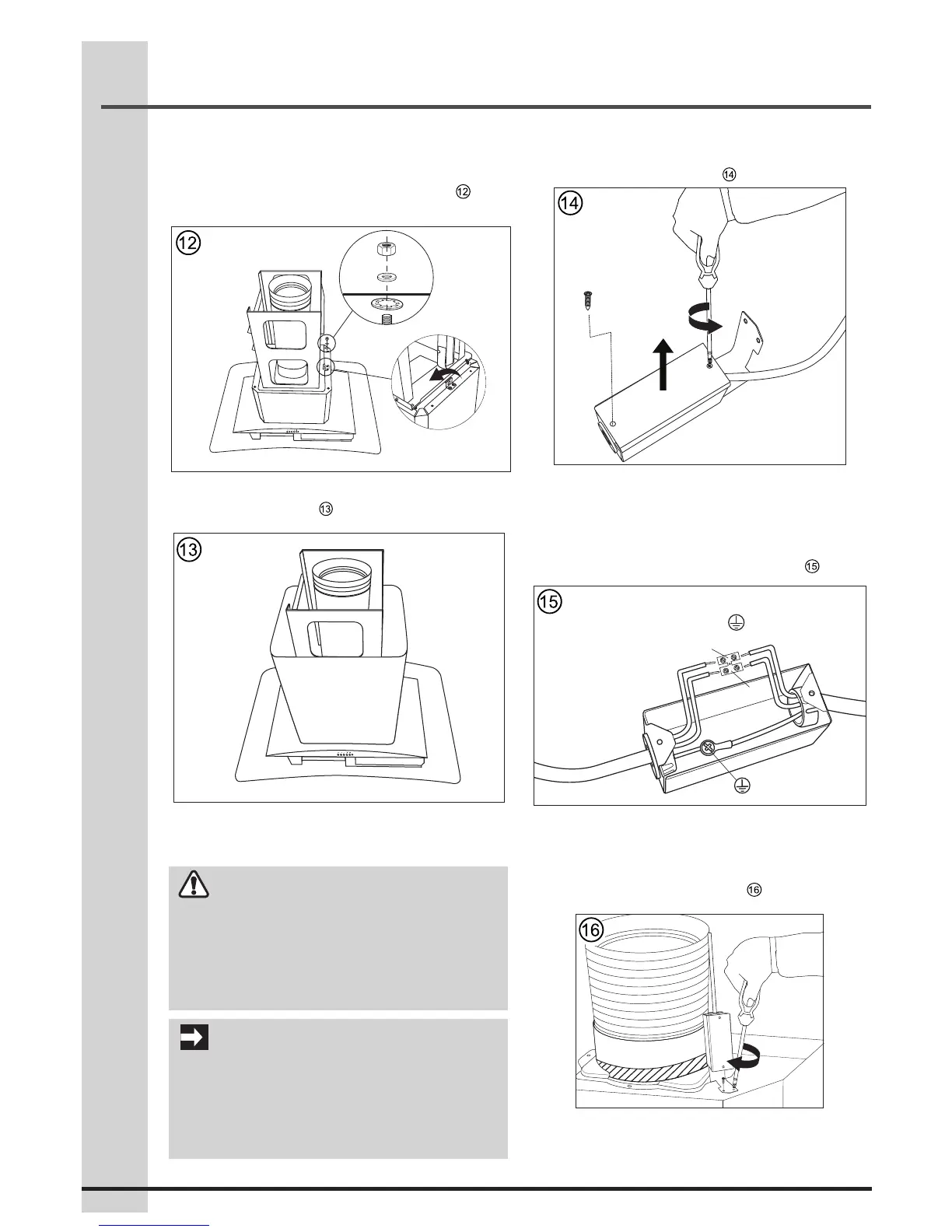

Step 6:
• Install the lower bracket (5) onto the range
hood (1) and secure it with 4 sets of nuts (13),
span washers (14) and washers (15) (fig.
)
.
• Install the upper and lower chimney (3) onto the
range hood (1) (fig.
)
.
Electrical connections
DANGER
Danger of electric shock! All fittings must be
installed by a competent person in accordance
with current wiring regulations and local
building regulations. If in doubt, consult a
qualified electrician.
IMPORTANT
Always switch off the electricity supply at
the mains during installation, cleaning and
maintenance. We recommend that the fuse is
withdrawn or circuit breaker switched off at the
distribution board while work is in progress.
Step 7:
• Loosen the 2 short screws from the junction box
and remove the cover (fig. ).
• Place the range hood above the cooktop.
• Connect the incoming positive, neutral and
ground cables to the respective terminals. The
ground cable is already pre-assembled onto the
junction box to provide grounding (fig.
).
L (live) = Black
(ground) = Green
N (neutral) = White
L
N
• Replace the junction box cover and secure it with
previously removed 2 short screws.
• Mount the junction box onto the range hood
using 2 short screws (20) (fig. ).
