8

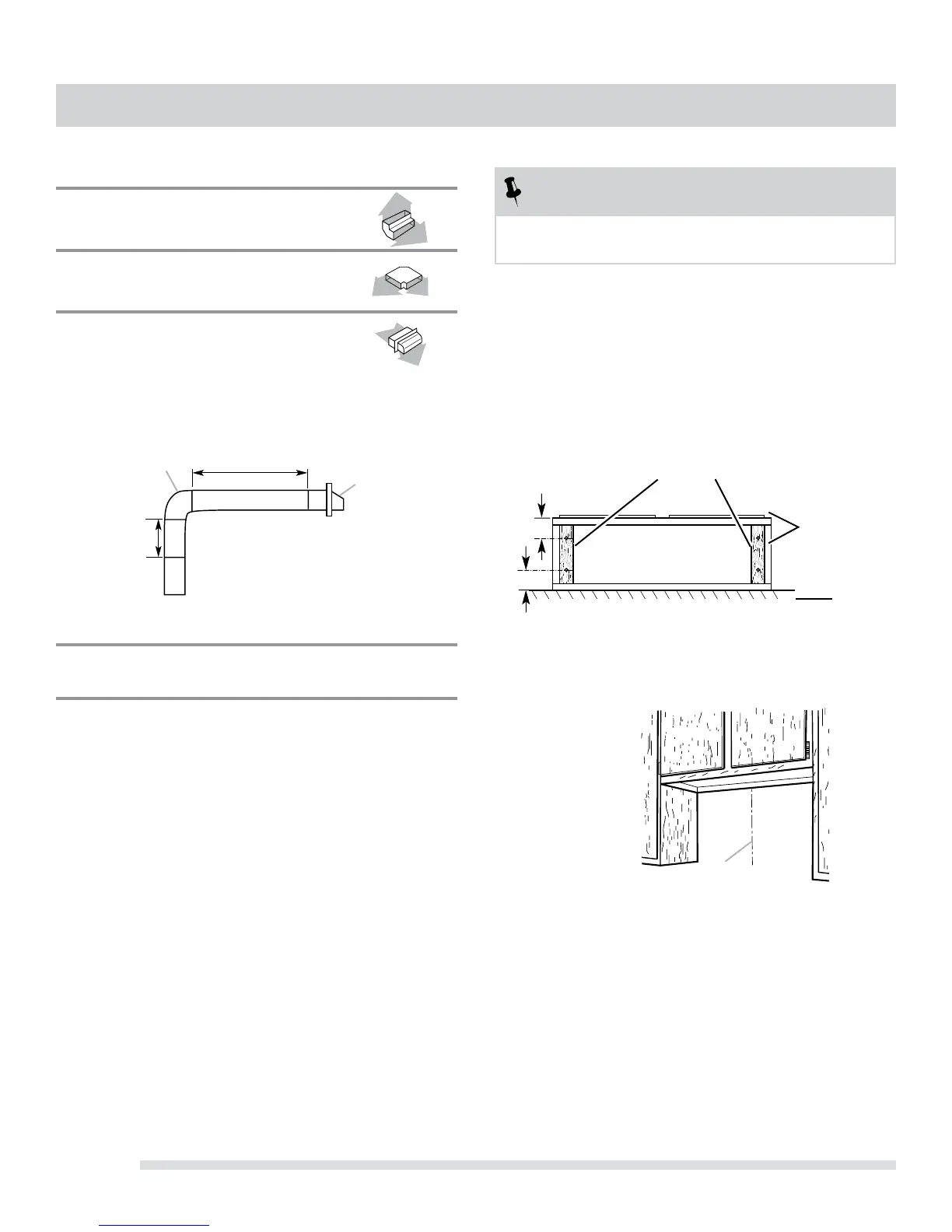

PREPARE THE LOCATION
NOTE
Before making cutouts, make sure there is
proper clearance within the ceiling or wall.
Disconnect power.
Selectaatsurfaceforassemblingtherangehood. 
Place covering over that surface.
Lift the range hood and set it upside down onto covered
surface.
Ifcabinethasrecessedbottom,addwoodllerstrips
 oneachside.Installscrewstoattachllerstripsin
locations shown.
Determine Wiring Hole Location
Determine and clearly mark a vertical centerline on
the wall and cabinet bottom.
1.
2.
3.
4.
1.
A
A Centerline
Wood filler strips
(recessed cabinet
bottoms only)
Wall
Cabinet
bottom
3” (7.6 cm)
3” (7.6 cm)
4.5x13mm
mounting screws
VENTING REQUIREMENTS
3¼” x 10” (8.3 cm x 25.4 cm) Vent System
Vent Piece
3¼”x10”(8.3cmx25.4cm) 5.0ft
90° elbow (1.5 m)
3¼”x10”(8.3cmx25.4cm) 12.0ft
flat elbow (3.7 m)
3¼”x10”(8.3cmx25.4cm) 0.0ft
wall cap (0.0 m)
Example Vent System
MaximumRecommendedLength =35ft(10.7m)
1-90°elbow =5.0ft(1.5m)
8ft(2.4m)straight =8.0ft(2.4m)
1-wallcap =0.0ft(0.0m)
Length of 3¼”x10” =13.0ft(3.9m)
(8.3cmx25.4cm)system
2 ft
(0.6 m)
3¼”x10”
(8.3x25.4cm)
elbow
6 ft (1.8 m)
Wall Cap
