HANDLE INSTALLATION
IMPORTANT
To ensure proper installation of handles,
please review these instructions and
illustrations thoroughly prior to installing
the handles.
CAUTION
Wear gloves and safety goggles and use
extreme CAUTION when installing these
handles. The rounded end of the handles
may be sharp (some models).

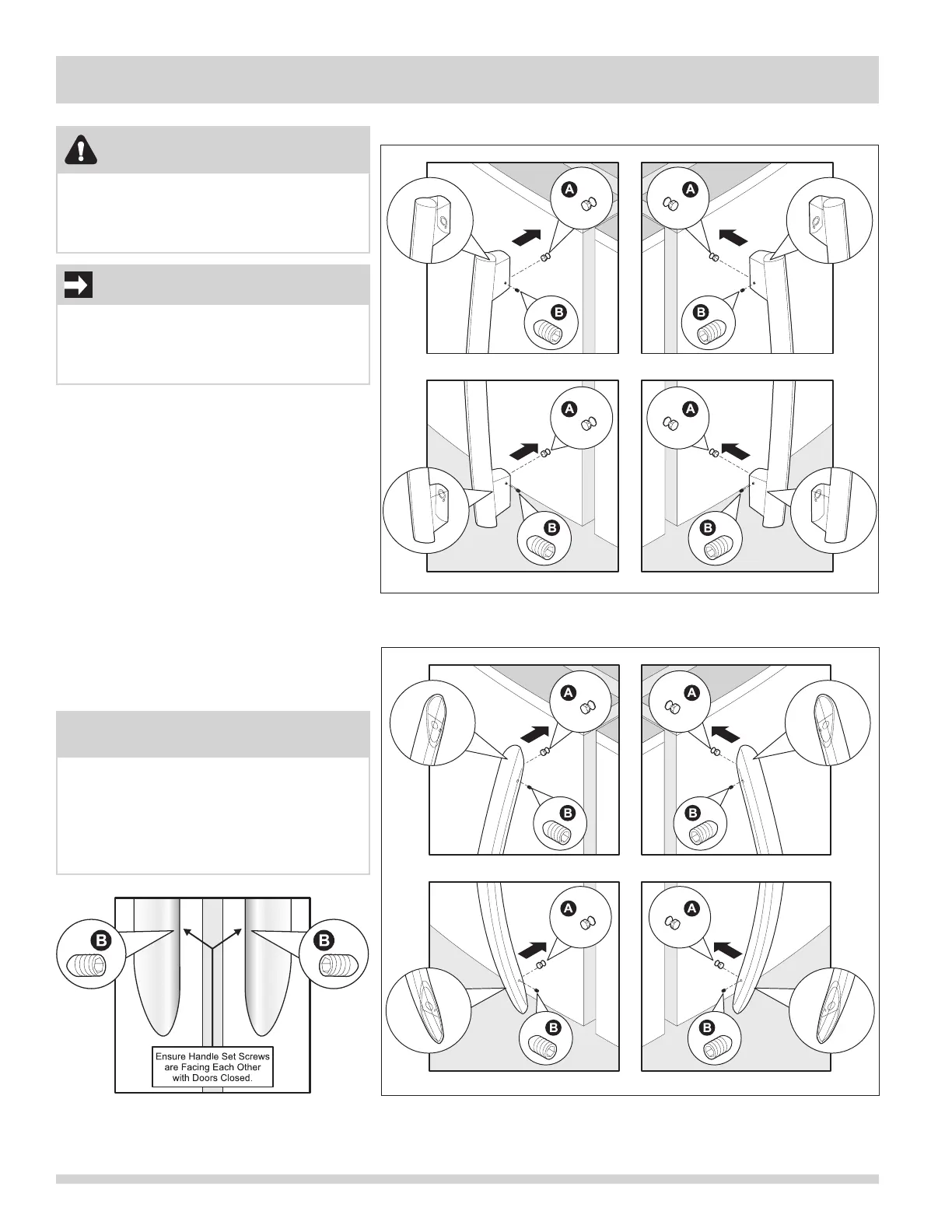

Freezer Upper End Cap
Refrigerator Lower End Cap
Refrigerator Upper End Cap
Freezer Lower End Cap
Frigidaire Professional®
1. Remove handles from cartoning and
any other protective packaging.
2. Position freezer handle end caps over
upper and lower preinstalled shoulder
bolts (A) that are fastened into door,
ensuring the holes for the set screws
are facing towards the refrigerator
door.
 3. Whileholdinghandlermlyagainst
door, fasten upper and lower allen set
screws (B) with supplied allen wrench.
4. Repeat steps 2 and 3 to install
refrigerator handle. Ensure the holes
for the set screws are facing towards
the freezer door.

NOTE
All set screws should be tightened and
sub-ush(allensetscrewshouldbeseated
just below the surface of the end cap) of
handle end cap. The end caps should be
drawn tight to freezer and refrigerator
doors with no gaps.
Freezer Upper End Cap
Refrigerator Upper End Cap
Frigidaire Gallery®
Refrigerator Lower End CapFreezer Lower End Cap
