NOTE
The refrigerator doors are designed to shut by
themselves within a 20 degree opening.
Your refrigerator should be positioned to allow easy
access to a counter or table when removing food. For
best use of drawers and freezer baskets, the refrigerator
should be in a position where both the refrigerator and
freezer doors can be fully opened.
• Allfourcornersofthecabinetmustrestrmlyon
theoor.
• Thecabinetshouldbelevelatthefrontandrear.
• Thesidesshouldtilt¼inch(6mm)fromfrontto
back (to ensure that doors close and seal properly).
• Doorsshouldalignwitheachotherandbelevel.
:
Open both doors and remove the toe grille (see
“” in the
“ section).
2 Closethedoorsanduseaat-bladescrewdriveror
3
/
8
inch socket wrench to raise or lower the front
rollers.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides.
Hinge
Flange
Set Screw
(some models)
Door Stop
Flange
Hinge
Open Door
7/16”Wrench
and 3/32” Hex Key
(some models)
Replacethetoegrillebyttingitintoplace
(see “Toe Grille Installation and Removal” in the
“Installation” section).
:
Before leveling either door, remove set screw that
locks door height into position. (The door cannot
be adjusted without set screw removed).

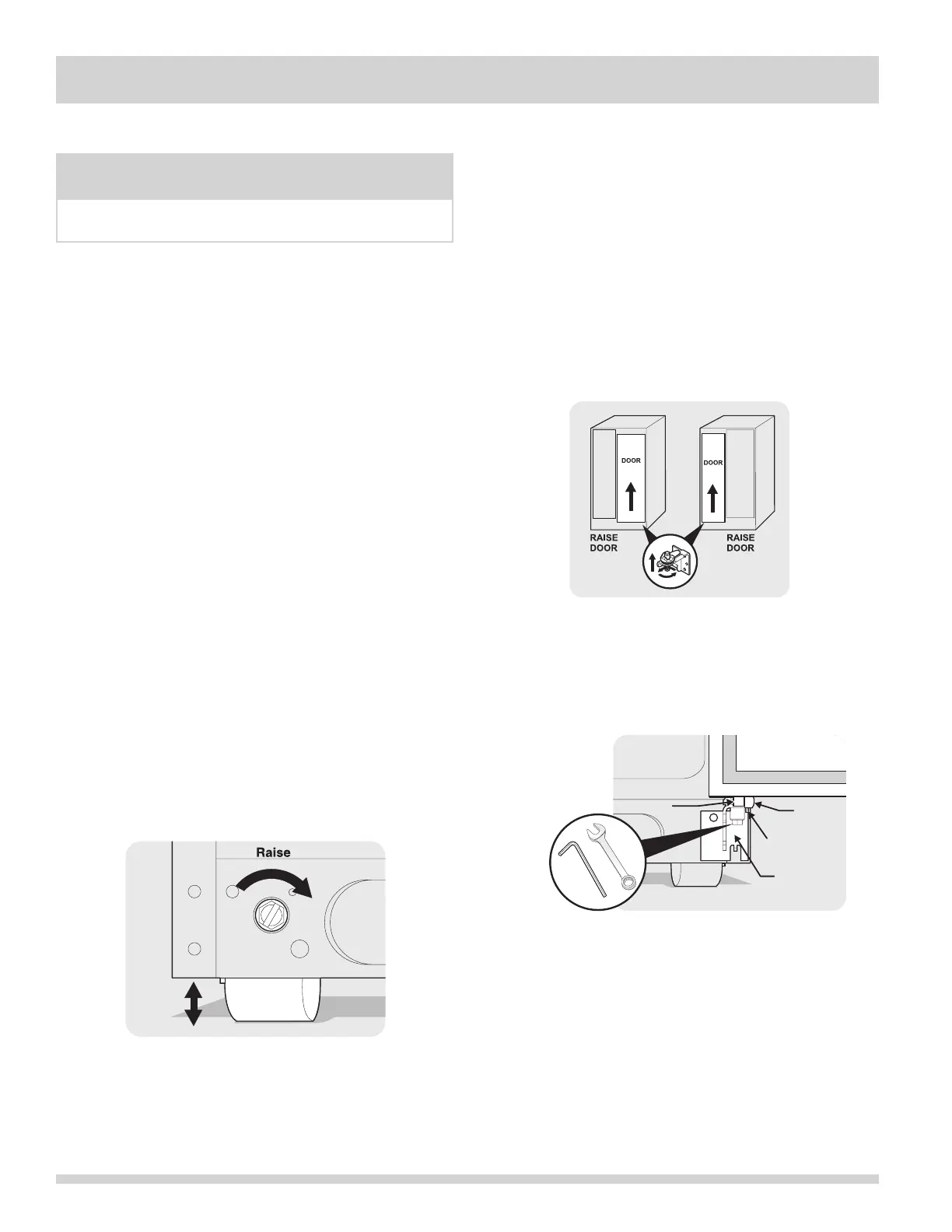

2 If the refrigerator door is lower than the freezer
door, raise the refrigerator door by turning the
adjustment screw clockwise using a
7
/
16
inch
wrench. (See illustration.)
3 If the freezer door is lower than the refrigerator
door, raise the freezer door by turning the
adjustment screw clockwise using a
7
/
16
inch
wrench. (See illustration.)
4 After leveling, verify door stop contacts lower hinge
and top of door does not contact upper hinge
through full movement of door (from fully closed to
fully open).
Reinstall set screw, locking the door height.
