1. FILTER PCB

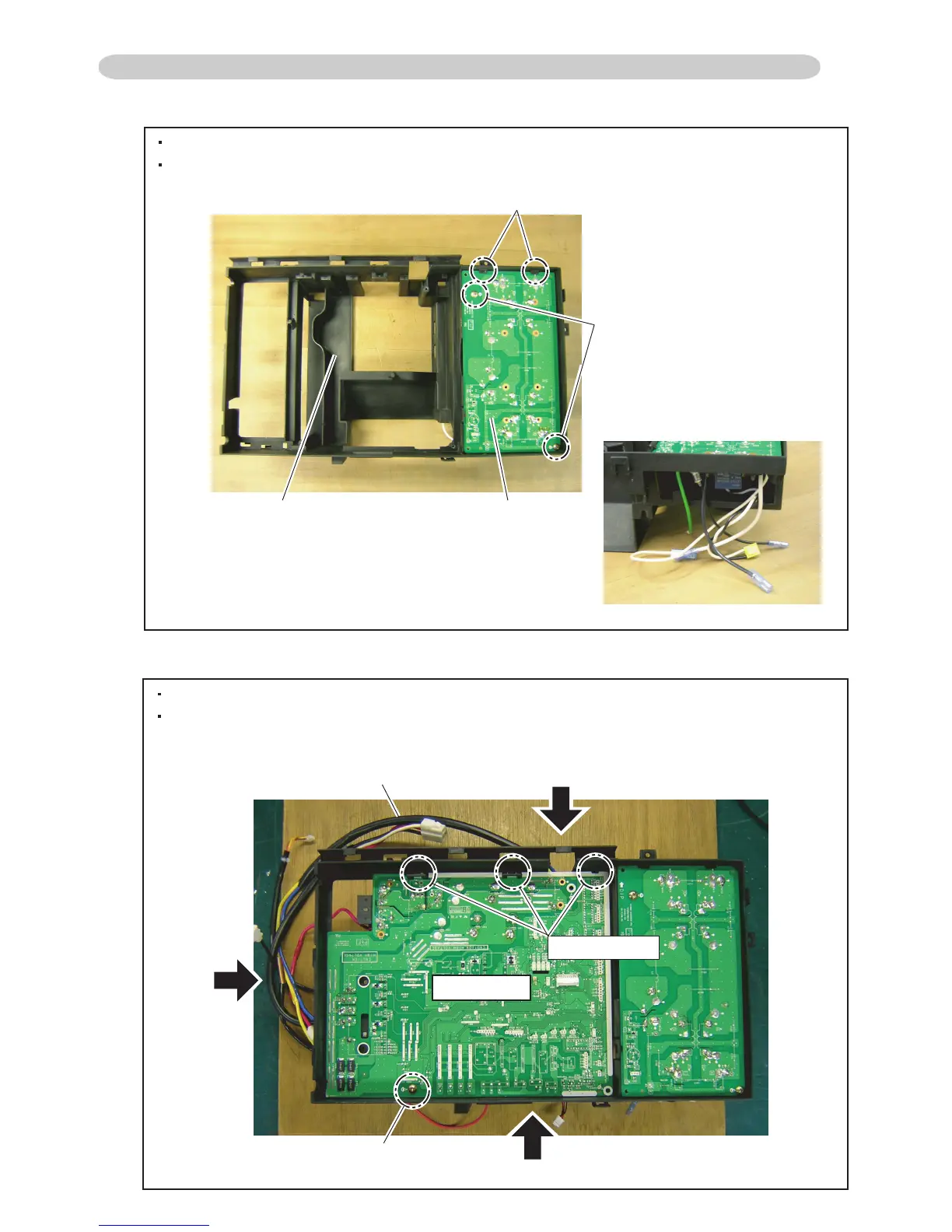

As shown in Fig.1, assemble FILTER PCB to INVERTER BOX A.
As shown in Fig.2, pull out the wires of FILTER PCB.
2. MAIN PCB
As shown in Fig.3, temporarily fix MAIN PCB to INVERTER BOX A.
After it is temporary fix of MAIN PCB, As shown in the Fig 4 - 7,
pull out the wires of MAIN PCB.
1-2-4 ASSEMBLY PROCESS of INVERTER UNIT (For AO*30LMAW4)
03-16
Screw (2 places)
Hook (2 places)
Fig.1
Fig.3
Fig.2
FILTER PCBINVERTER BOX A
W12(Yellow)
W13(Blue)
Screw
Fig.5
Fig.4
Fig.6/ 7
Hook (3 places)
MAIN PCB
