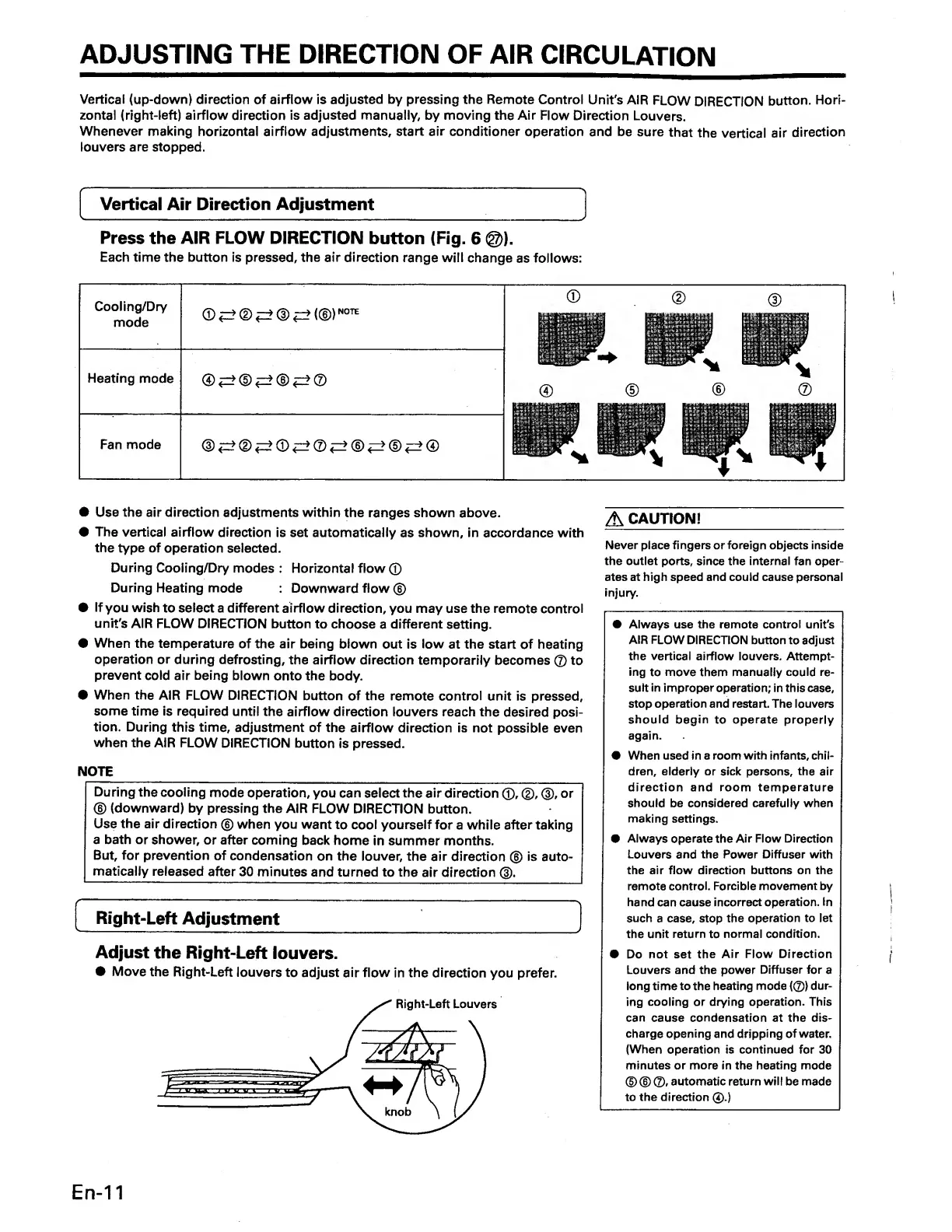

ADJUSTING THE DIRECTION OF AIR CIRCULATION
Vertical (up-down) direction of airflow is adjusted by pressing the Remote Control Unit's AIR FLOW DIRECTION button. Hori¬
zontal (right-left) airflow direction is adjusted manually, by moving the Air Flow Direction Louvers.
Whenever making horizontal airflow adjustments, start air conditioner operation and be sure that the vertical air direction
louvers are stopped.
Vertical Air Direction Adjustment
Press the AIR FLOW DIRECTION button (Fig. 6 <g>).
Each time the button is pressed, the air direction range will change as follows:
Cooling/Dry
mode
©«=> ©<=h©) note
IB -I' iLT-vHH
Heating mode
© © <=± © <=? ®
: : ■ ' •'
1
Fan mode
®<=?®<Z?®^®£±©^©«=*®
1 i H: i;:,' r::
1- ' ■ r*.. si- »“
• Use the air direction adjustments within the ranges shown above.
• The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooiing/Dry modes : Horizontal flow ©
During Heating mode : Downward flow ©
• If you wish to select a different airflow direction, you may use the remote control
unit's AIR FLOW DIRECTION button to choose a different setting.
• When the temperature of the air being blown out is low at the start of heating
operation or during defrosting, the airflow direction temporarily becomes © to
prevent cold air being blown onto the body.
• When the AIR FLOW DIRECTION button of the remote control unit is pressed,
some time is required until the airflow direction louvers reach the desired posi¬
tion. During this time, adjustment of the airflow direction is not possible even
when the AIR FLOW DIRECTION button is pressed.
NOTE _
During the cooling mode operation, you can select the air direction ©, ©, ©, or
© (downward) by pressing the AIR FLOW DIRECTION button.
Use the air direction © when you want to cool yourself for a while after taking
a bath or shower, or after coming back home in summer months.
But, for prevention of condensation on the louver, the air direction © is auto¬
matically released after 30 minutes and turned to the air direction ®.
Right-Left Adjustment _ _
Adjust the Right-Left louvers.
• Move the Right-Left louvers to adjust air flow in the direction you prefer.
A CAUTtON! _
Never place fingers or foreign objects inside
the outlet ports, since the internal fan oper¬
ates at high speed and could cause personal
injury.
• Always use the remote control unit's
AIR FLOW DIRECTION button to adjust
the vertical airflow louvers. Attempt¬
ing to move them manually could re¬
sult in improper operation; in this case,
stop operation and restart. The louvers
should begin to operate properly
again.
• When used in a room with infants, chil¬
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
• Always operate the Air Flow Direction
Louvers and the Power Diffuser with
the air flow direction buttons on the
remote control. Forcible movement by
hand can cause incorrect operation. In
such a case, stop the operation to let
the unit return to normal condition.
• Do not set the Air Flow Direction
Louvers and the power Diffuser for a
long time to the heating mode (®) dur¬
ing cooling or drying operation. This
can cause condensation at the dis¬
charge opening and dripping of water.
(When operation is continued for 30
minutes or more in the heating mode
© © ®, automatic return will be made
to the direction ©.)
En-11
