Fujitsu AOU24RLXFZ Service Manual

INDOOR UNIT
COMPACT CASSETTE
AUU9RLF, AUU12RLF, AUU18RLF
632010.07.01
DECORATION PANEL
UTG-CCGF

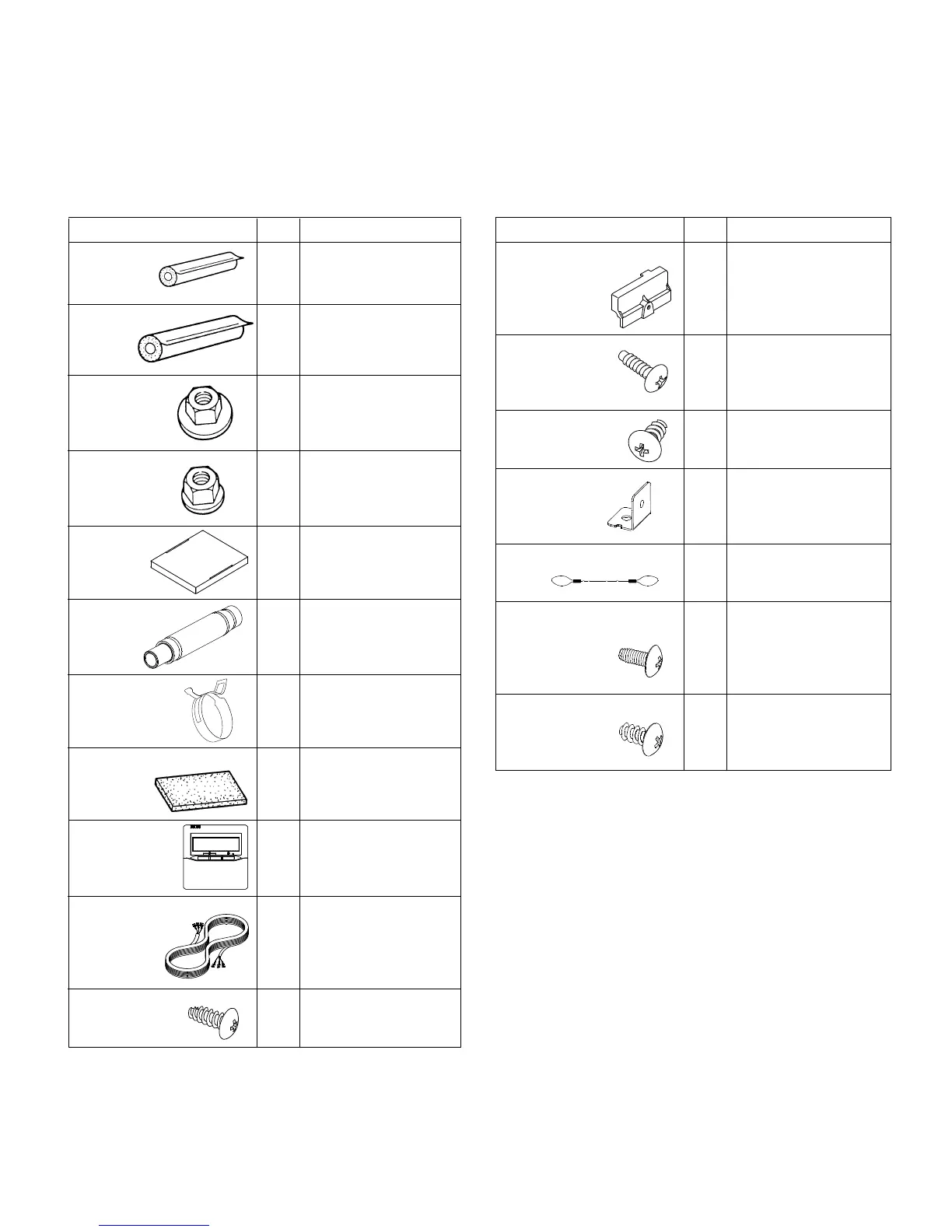

Name and Shape Q’ty Application
Connector cover
1
For covering connector
Tapping Screw
(M5 × 12 mm)
4
For mounting decora-
tion panel
Tapping Screw
(M4 × 12 mm)
1
For mounting connec-
tor cover
L angle
2
For mounting the Hook
Wire to the Decoration
panel
Hook wire
2
For suspending the
Decoration panel
Screw [pitch small]
(M4 × 10 mm)
2
For mounting the Hook
Wire (for metals)
Screw [pitch large]
(M4 × 10 mm)
4
For mounting the
L angle and Hook wire
(for resins)
Name and Shape Q’ty Application
Coupler heat
insulation
(Small)
1
For indoor side pipe
joint (Liquid pipe)
Coupler heat
insulation
(Large)
1
For indoor side pipe
joint (Gas pipe)
Special nut A
(Large flange)
4
For installing indoor
unit
Special nut B
(Small flange)
4
For installing indoor
unit
Template
(Carton
top)
1
For cealing openings
cutting
Also used as packing
Drain hose assy
1
For installing drain pipe
19 mm (3/4 in.) [O.D.
27 mm (1-1/16 in.)]
Hose band assy
1
For installing drain pipe
(3/4 in.)
Drain hose
insulation
1
For installing drain
hose
Wired remote
control
1
Remote control
cable
1
For connecting the
remote control
Tapping screw
(M4 × 16 mm)
2
For installing the wired
remote control
