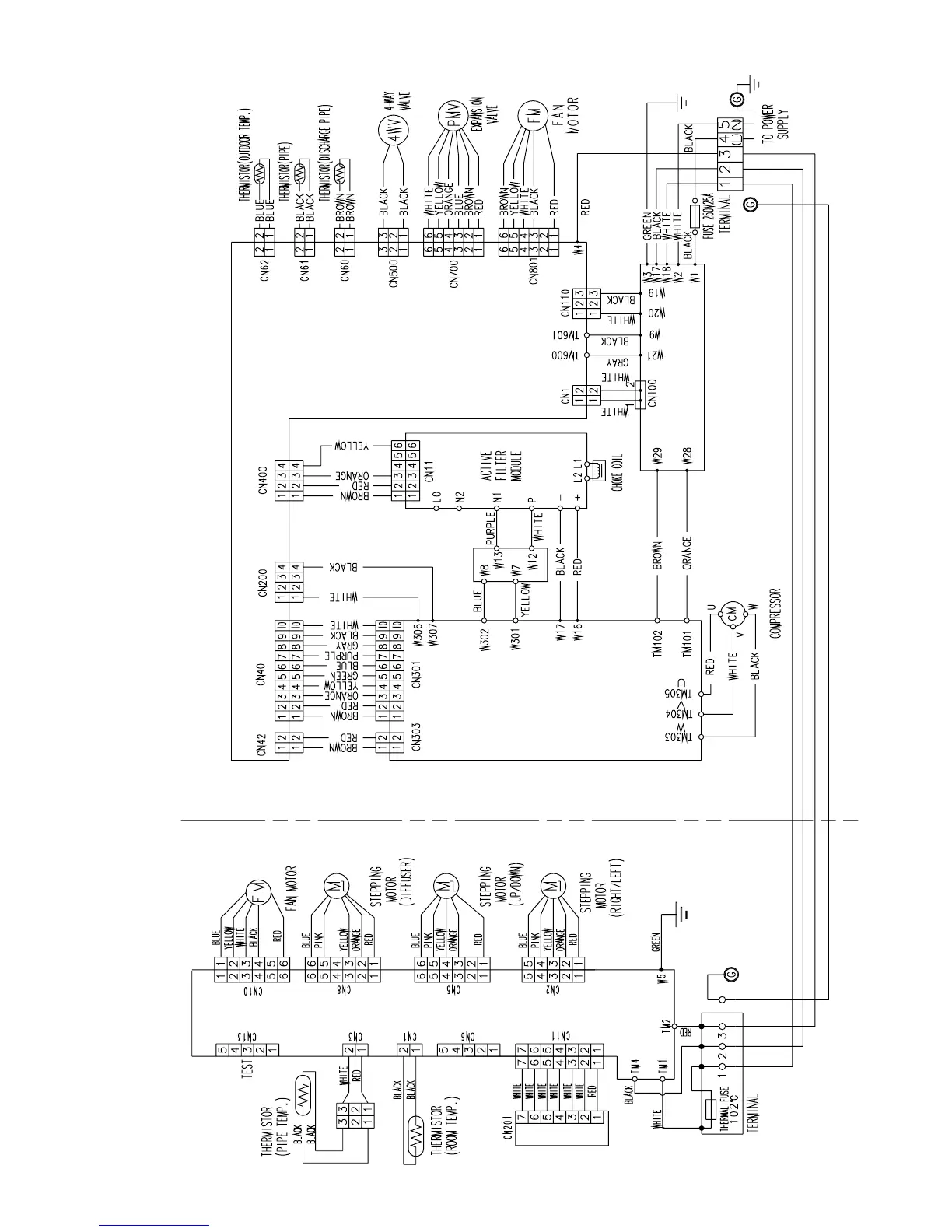

CIRCUIT DIAGRAM
2006.05.31
4
INDOOR UNIT OUTDOOR UNIT
TR PCB Assy
(IPM)
Power Supply PCB Assy
Controller PCB Assy
Capacitor PCB
Controller PCB Assy
Indicator PCB Assy
