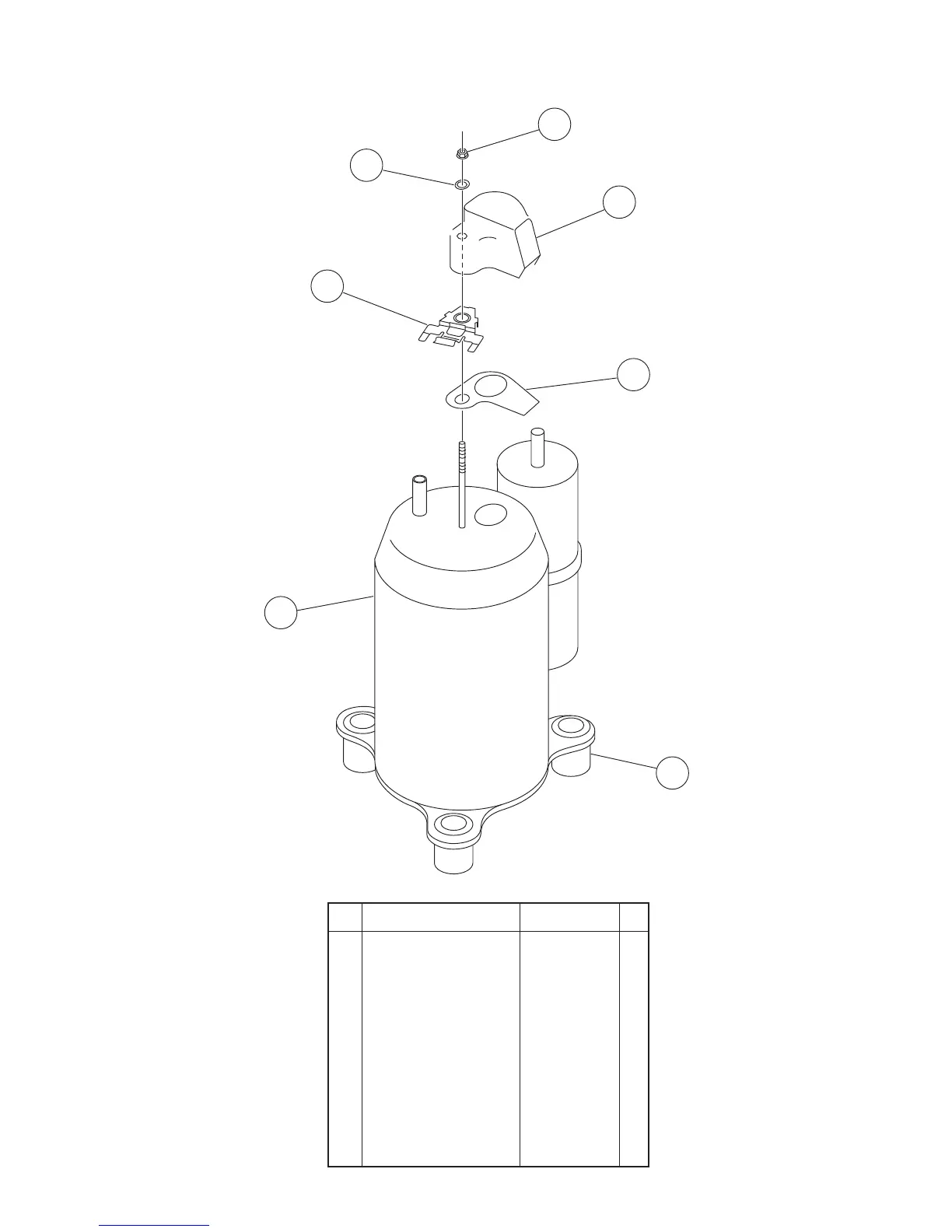

OUTDOOR UNIT
Compressor
2008.04.16
25
41
42
43
44
46
45
47
41
Compressor Assy
9377946010
46
Washer (Rubber)
47
Frange Nut
9377949011
9377950017
42
Rubber Seat
43
Terminal Packing
44
45
Holder
9377951014
9377948014
9377952011
Terminal Cover
9377947017
--
Compressor Cover B
--
Compressor Cover C
9374431052
9372067048
--
Compressor Cover A
9374430055
Ref.
Description
Part number
25
27
Table of Contents
Table of Contents
1
Air Conditioner
1
Wall Mounted Type
1
Indoor Unit
1
Specifications
2
Outline and Dimensions
4
Refrigerant System Diagram
6
Circuit Diagram
7
Indoor Pcb Circuit Diagram
9
Outdoor Pcb Circuit Diagram
10
Error Contents
13
PARTS (Indoor Unit)
15
PARTS (Outdoor Unit)
23
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fujitsu ASY18LBAJ and is the answer not in the manual?
Ask a question
Fujitsu ASY18LBAJ Specifications
General
Brand
Fujitsu
Model
ASY18LBAJ
Category
Air Conditioner
Language
English
