2009.10.06 12

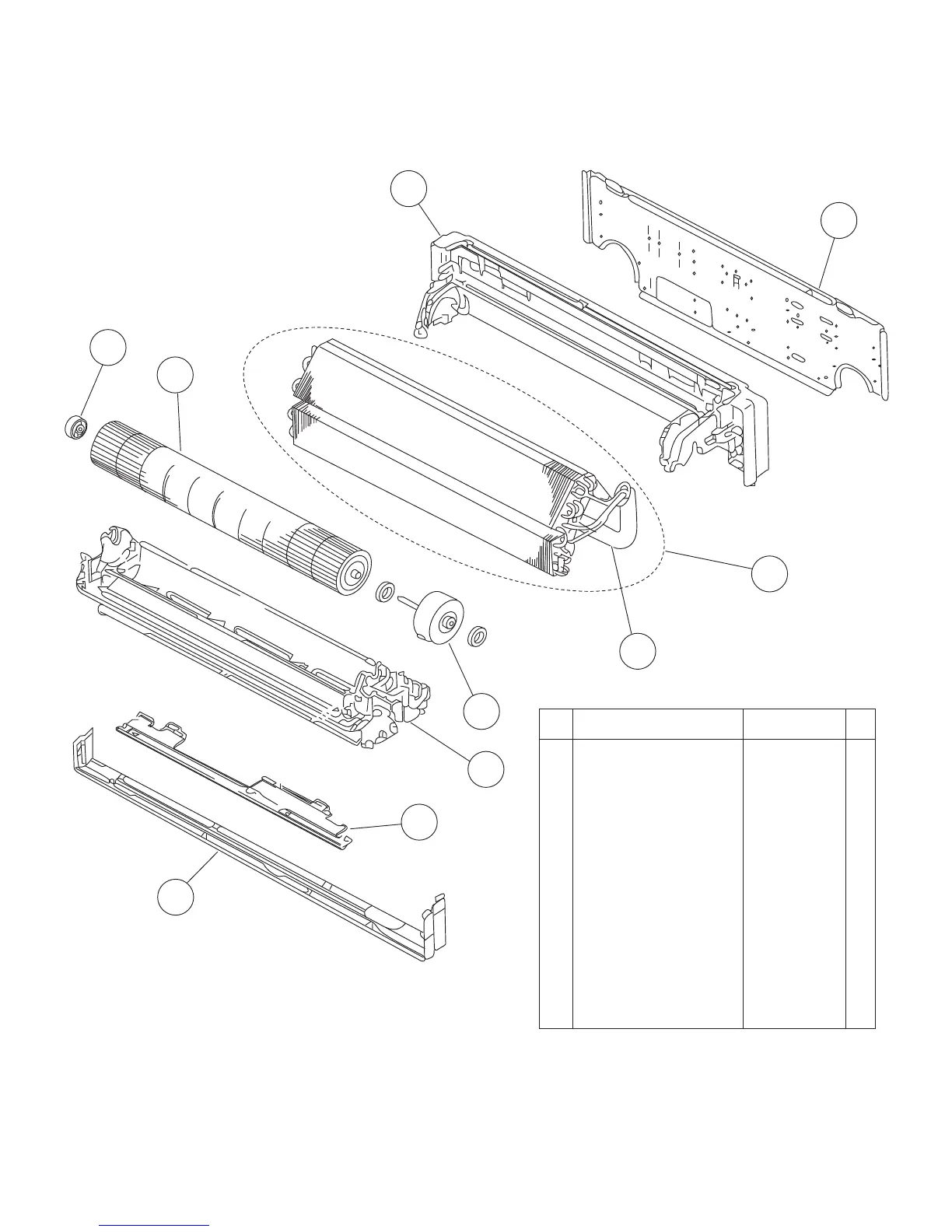

INDOOR UNIT
12 Base 9309755062
21 Casing Assy 9312173037
18 Shaft Holder B Assy 9303066010
13
Evaporator Sub Assy (7, 12)
9372217030
13 Evaporator Sub Assy (9) 9372217061
14 Connecting Pipe Assy 9306416010
15 Fan Motor Assy 9601844013
17 Crossflow Fan Assy 9307836015
19 Bracket (Pipe) 9330011014
11 Wall Hook Bracket 9304358008
20 Lower Cover 9330004016
Ref. Description
Part number
15
21
19
20
13
12
14
11
17
18
