Fujitsu Ceiling Type Service Manual

45
2012.09.20
25
22
23
26
24
21
23
27
31
28
32
30
29

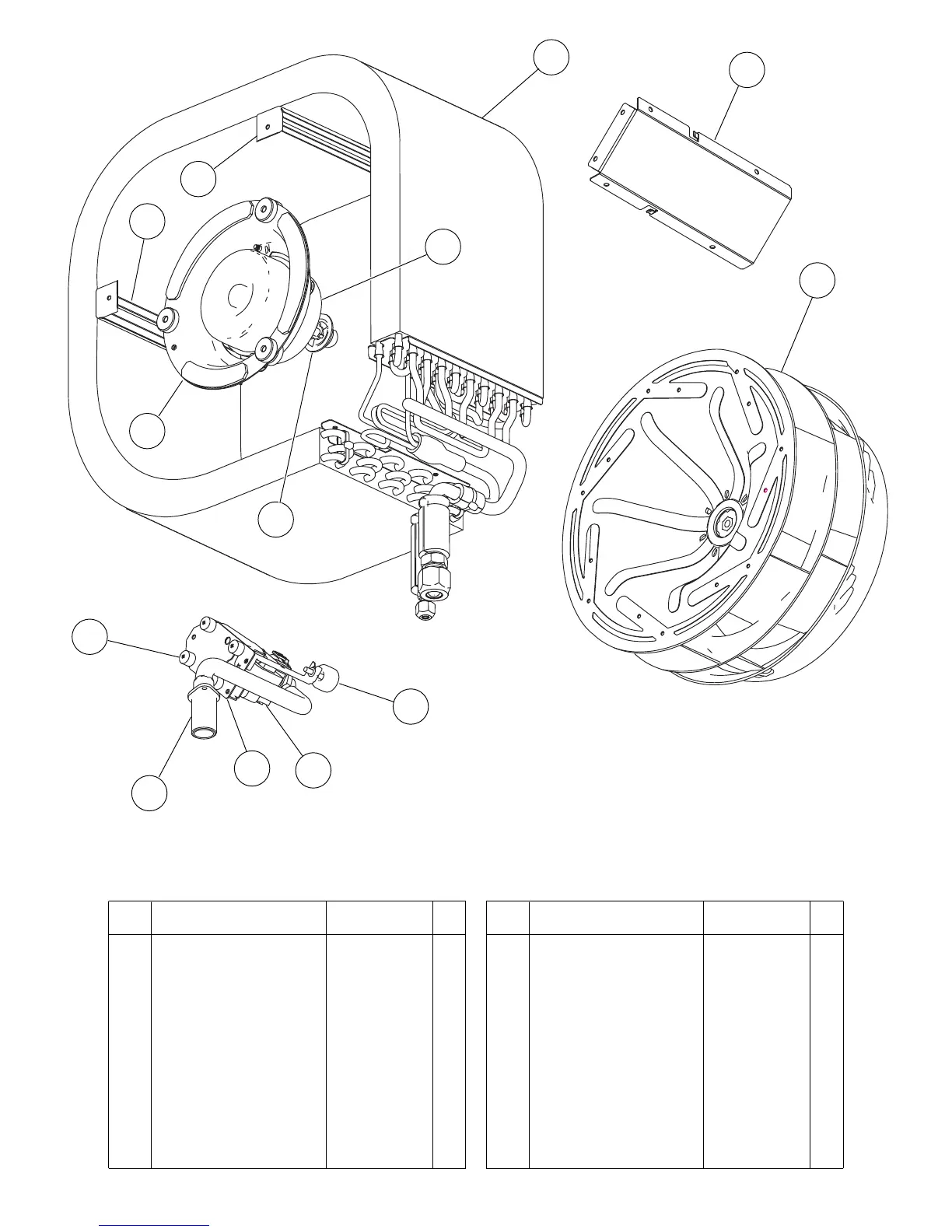

INDOOR UNIT
CASSETTE
AUYG22LVLA
AUYG24LVLA
25 2 Stage Turbo Fan Assy
22 Evaporator Total Assy
23 Evaporator Holder
26 Fan Motor
21 Separate Wall
9375480011
9375720018
9375507015
24 Turbo Fan Washer 9375487010
9602436019
9375506018
Ref. Description Part number
27 Fan Motor Holder
31 Float Switch
32 Drain Port Sub Assy
28 Pump Assy
29 Drain Pump Holder B
9900472030
9375518011
9375552015
9900361037
30 Rubber (Pump) 9378426016
9375718015
