En-10

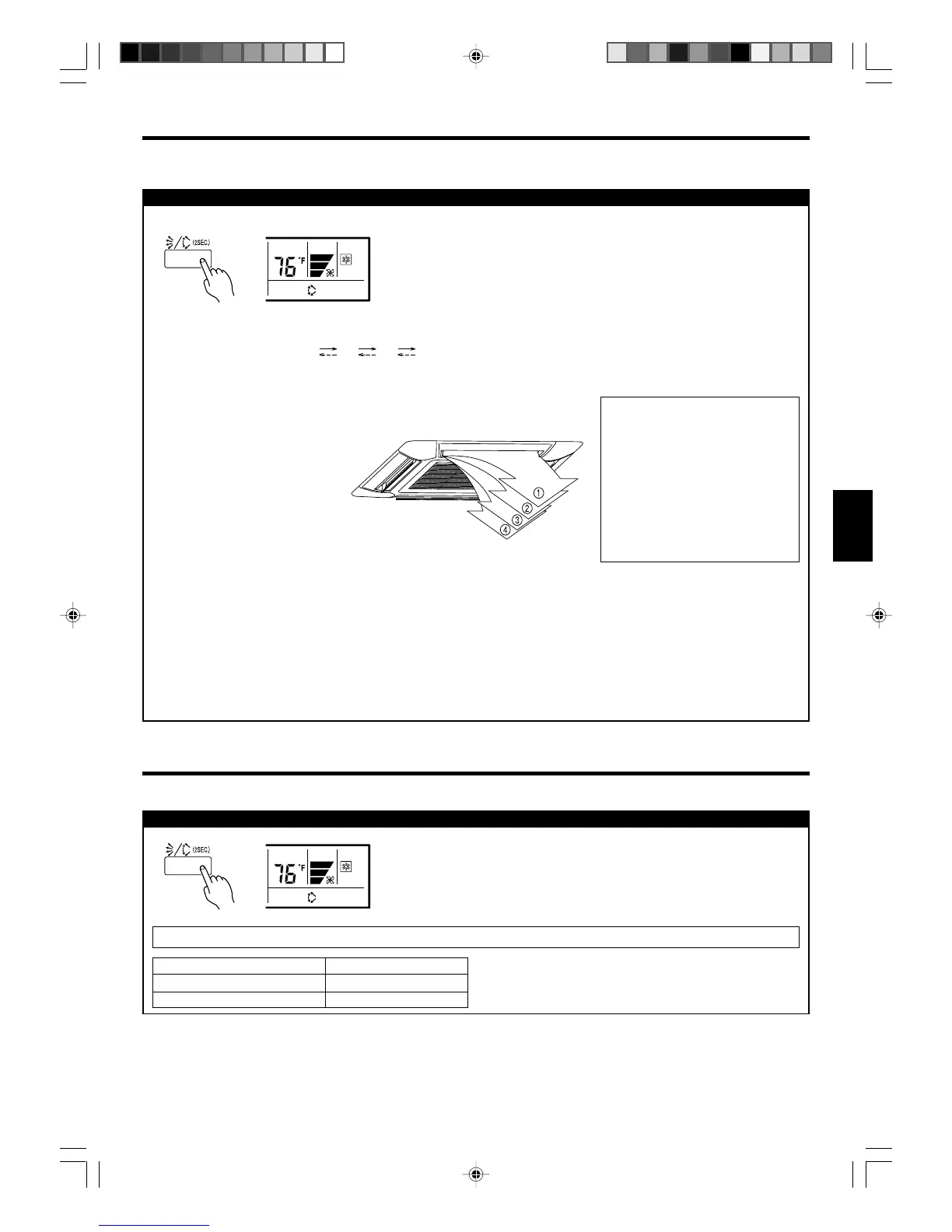

ADJUSTING THE DIRECTION OF AIR CIRCULATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Start air conditioner operation before performing this procedure.
* Press the START/STOP button to start the air conditioner, and then pro-
ceed as follows.
Press the VERTICAL AIRFLOW DIRECTION and SWING button to adjust
the direction of the vertical airflow.
To set the operation mode
●
Vertical air direction adjustment
Recommended Air Flow Direction Setting:
1, 2, 3, 4: During Cooling/Dry mode
2, 3, 4: During Heating mode
● The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooling/Dry mode : Horizontal flow 1
*During Heating mode : Downward flow 4
● During AUTO mode operation, for the first minute after beginning operation,
airflow will be horizontal 1; the air direction cannot be adjusted during this
period.
● Horizontal air direction adjustment.
The function cannot be used.
● Attempting to move up/down air di-
rection flaps manually could result
in improper operation; in this case,
stop operation and restart. The
louvers should begin to operate
properly again.
● When used in a room with infants,
children, elderly or sick persons, the
air direction and room temperature
should be considered carefully when
making settings.
Each time the button is pressed, the air direction range will change as follows:
1
2 3 4
The remote control unit’s display does not change.
SWING OPERATION
Begin air conditioner operation before performing this procedure.
Press the VERTICAL AIRFLOW DIRECTION and SWING button for more
than 2 seconds. (Stop the setting by pressing for more than 2 seconds
again.)
To select/stop swing operation
● The SWING operation may stop temporarily when the air
conditioner’s fan is not operating, or when operating at
very low speeds.
About Swing Operation
The type of operation
Cooling/Dry/Fan
Heating
Range of swing
1 to 4
2 to 4
08M516_9374379378_en 2009.01.19, 14:1310
