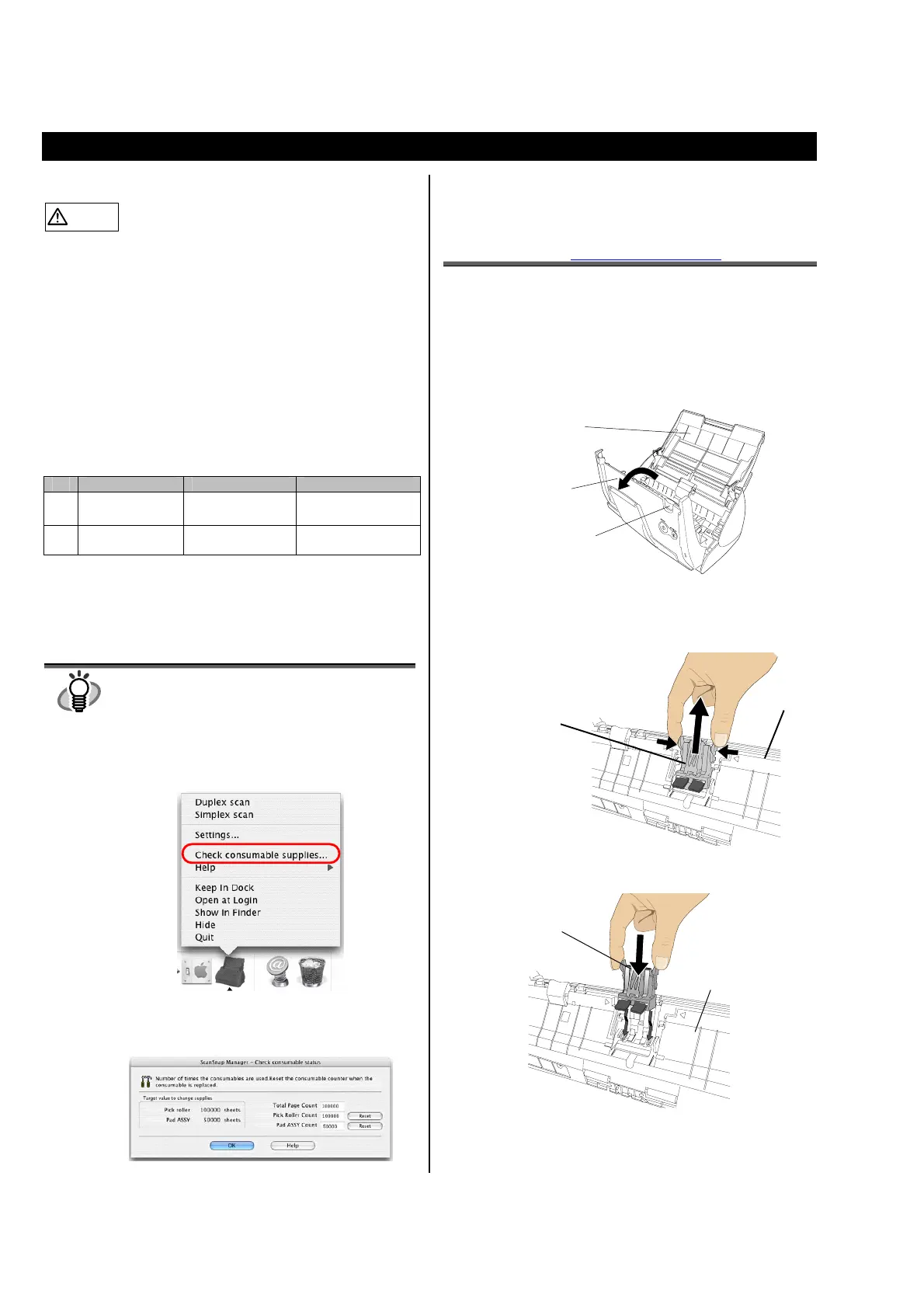

6. Replacing Consumables
This chapter describes how to replace consumables.
WARNING
Fire/Electric Shock
Before you replace the consumables of this scanner,
unplug the AC adapter cord from the outlet to turn off
the scanner.
6.1. Part Numbers and a
Replacement Cycle of
Consumable
The table below shows the part numbers of the
consumables and rough guidelines on the replacement of
consumables.
No.
Description P/N Replacement Cycle
1 Pad ASSY PA03360-0002
50,000 scan or one
year
2 Pick roller PA03360-0001
100,000 scans or
one year
Replacement cycles above are rough guidelines when
considering the use of A4/Letter wood-free paper 80 g/m
2
(21 lb). The actual cycle may vary depending on the types
of paper to be scanned. Use only the consumables
specified by PFU LIMITED.
HINT
To estimate the time when you have to replace the
consumables with new ones and to monitor the total
number of scanned pages, refer to the following:
1. Click and hold down the mouse button on the
"ScanSnap Manager" icon in the Dock menu
2. Select [Check consumable supplies] from the
pop-up menu.
Ö You will see the "Check consumable status"
window, which shows how many times
consumables have been used.
Replace the consumables according to "Target to
change supplies" as a rough guideline.
For details about consumables and where you can
purchase them, visit the following website or contact
the store where you purchased your scanner.
Website: http://scansnap.fujitsu.com/
6.2. Replacing the Pad ASSY
Replace the Pad ASSY following the procedures below.
1. Remove the documents on the Paper chute if any.
2. Pull the Cover open lever and open the ADF.
3. Remove the Pad ASSY.
While holding the both sides of the Pad ASSY, pull out
the Pad ASSY in the direction of the arrow.
4. Install the new Pad ASSY.
ADF
Paper chute
Cover open lever
Pad ASSY
ADF
Pad ASSY
ADF
