Version 1.0
INSTALLATION
Before any wiring and installation is performed, FUSION recommends you first plan the
complete installation. Look at wiring routing, amplifier location and mounting options. Please re-check the
installation at completion.
Appropriate mounting is very important for prolonged life expectancy of any amplifier.
Select a location that allows enough space for sufficient airflow to be maintained. Excessive heat will
shorten the amplifiers life. To maximize heat dissipation, be sure to leave at least 2.5 inches of clearance
around the amplifier.
INSTALLATION WARNING
1: Ensure the marine vessels +12V lead is removed from the battery before any equipment is
connected
2: Investigate the marine vessels fuel tanks and electrical wiring locations before you begin installation
3: Ensure all wiring is protected to avoid damage
When wiring the FUSION amplifier, ensure that the wires are away from sharp objects and that rubber
grommets and insulated bungs are used when routing the wiring. Ensure that when connecting the wires
to the speakers and audio system, the terminals and connections are protected from shorting to each
other.

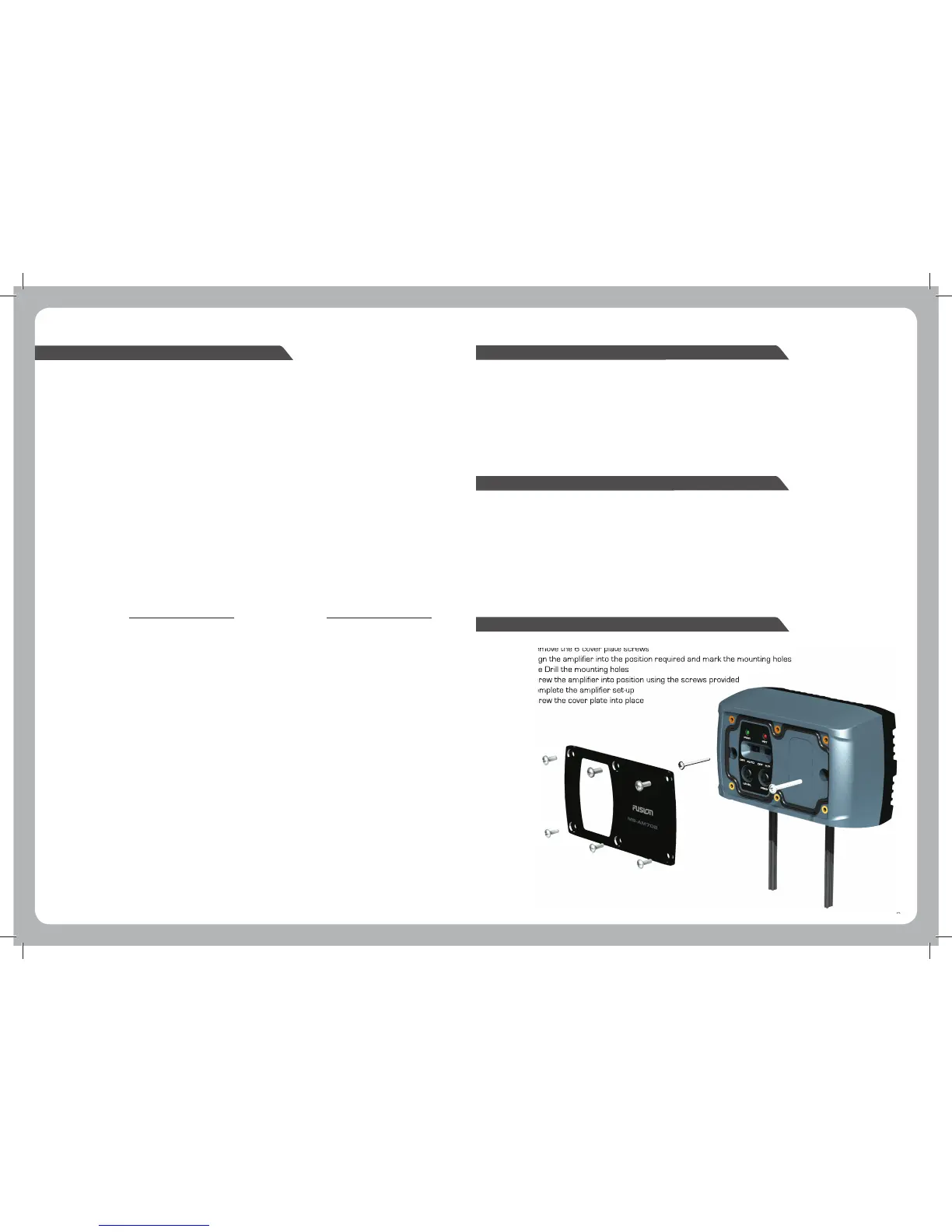

MOUNTING
1: Remove the 6 cover plate screws
2: Align the amplifier into the position required and mark the mounting holes
3: Pre Drill the mounting holes
4: Screw the amplifier into position using the screws provided
5: Complete the amplifier set-up
6: Screw the cover plate into place
RECORD YOUR PRODUCT DETAILS HERE:
MODEL NUMBER DATE OF PURCHASE
AFFIX RECEIPT HERE
CONTENTS
• INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 3
•
INSTALLATION WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg 3
• MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 3
• WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 4
• CONTROL DESCRIPTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 6
• SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 7
