Garland Master Series User Manual

Gas Input ratings shown here are for installations up to 2,000-ft. (610m) above sea level.

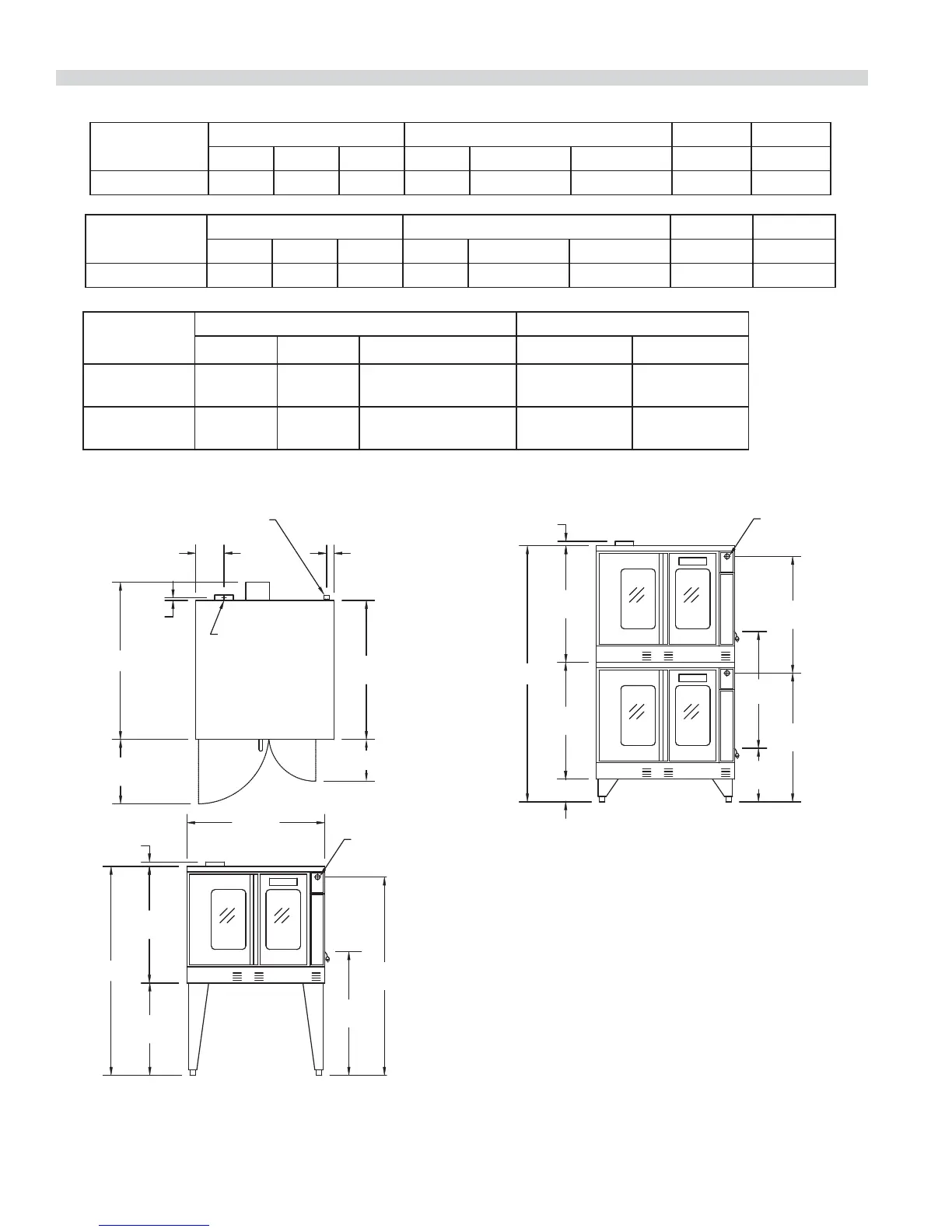

7-3/4"
[197mm]
38-1/4"
[972mm]
3/4"
[19mm]
17-3/4"
[451mm]
TOP VIEW
2"
[51mm]
FLUE: 2-3/8" x 5"
[60mm x 127mm]
3/4" N.PT.
GAS INLET
11-1/2"
[292mm]
38"
[965mm]
32-1/8"
[816mm]
25-3/8"
[645mm]
SINGLE DECK
FR ONT VIEW
1-1/4"
[32mm]
34"
[864mm]
54-9/16"
[1386mm]
3/4" REAR
GAS INLET
32-1/8"
[816mm]
32-1/8"
[816mm]
6-1/4"
[159mm]
14-3/4"
[375mm]
32-1/8"
[816mm]
35-7/16”
[900mm]
32-1/8"
[816mm]
1-1/4"
[32mm]
DOUBLE DECK
FR ONT VIEW
D
H
H
1" REAR
GAS INLET
Single-Deck
Models
Int. Dimensions :In (mm) Ext. Dimensions: In (mm) Ship Wt Ship Dim.
W H D W H * D Lbs/kg Cubic Ft.
MCOGS10ESS 29 (736) 24 (610) 24 (610) 38 (965) 57-1/2 (1461) 41-1/4(1048) 515/230 64
Double-Deck
Models
Int. Dimensions: In (mm) Ext. Dimensions: In (mm) Ship Wt. Ship Dim.
W H D W H * D 2@Lbs/kg Cubic Ft.
MCOGS20ESS 29 (736) 24 (610) 24 (610) 38 (965) 70-1/2 (1791) 41-1/4(1048) 1030/465 128
* Height with legs or with standard casters. Height with low profile casters (double deck) is 68-1/2” (1740mm).
Models
Input Ratings, Natural Gas Electrical Speci cations
BTU/hr kW Equiv. Gas Inlet 120V/1Ph. 240V/1Ph.
Single Deck
MCOGS10ESS
60,000 17. 6 (1 )@ 3/4" NPT (1)@9.8A (1)@ 5.2A
Double Deck
MCOGS20ESS
120,000 35.2 (1 )@1" NPT (2)@9.8A (2)@ 5.2A
Manifold Pressure:
Natural: 4.1" WC
NOTE: Data applies only to
North America
Notes:
1. Standard electrical speci cations include motor requirements.
2. (120V units) 115V 3/4 HP, 2-speed motor; 1140 and 1725 rpm 60Hz
3. (240V units) 200-240V, 3/4 HP, 2-speed motor; 1140 and 1725 rpm, 60Hz
4. A 6 ft. line cord is provided for each 120V deck with a (NEMA #5-15P) plug.
5. Garland recommends a separate 15 AMP circuit for each 120V unit.
(includes
fan motor)
DIMENSIONS & SPECIFICATIONS
Part Number 260BGS rev B 4/156

Garland Master Series Specifications
