Specications

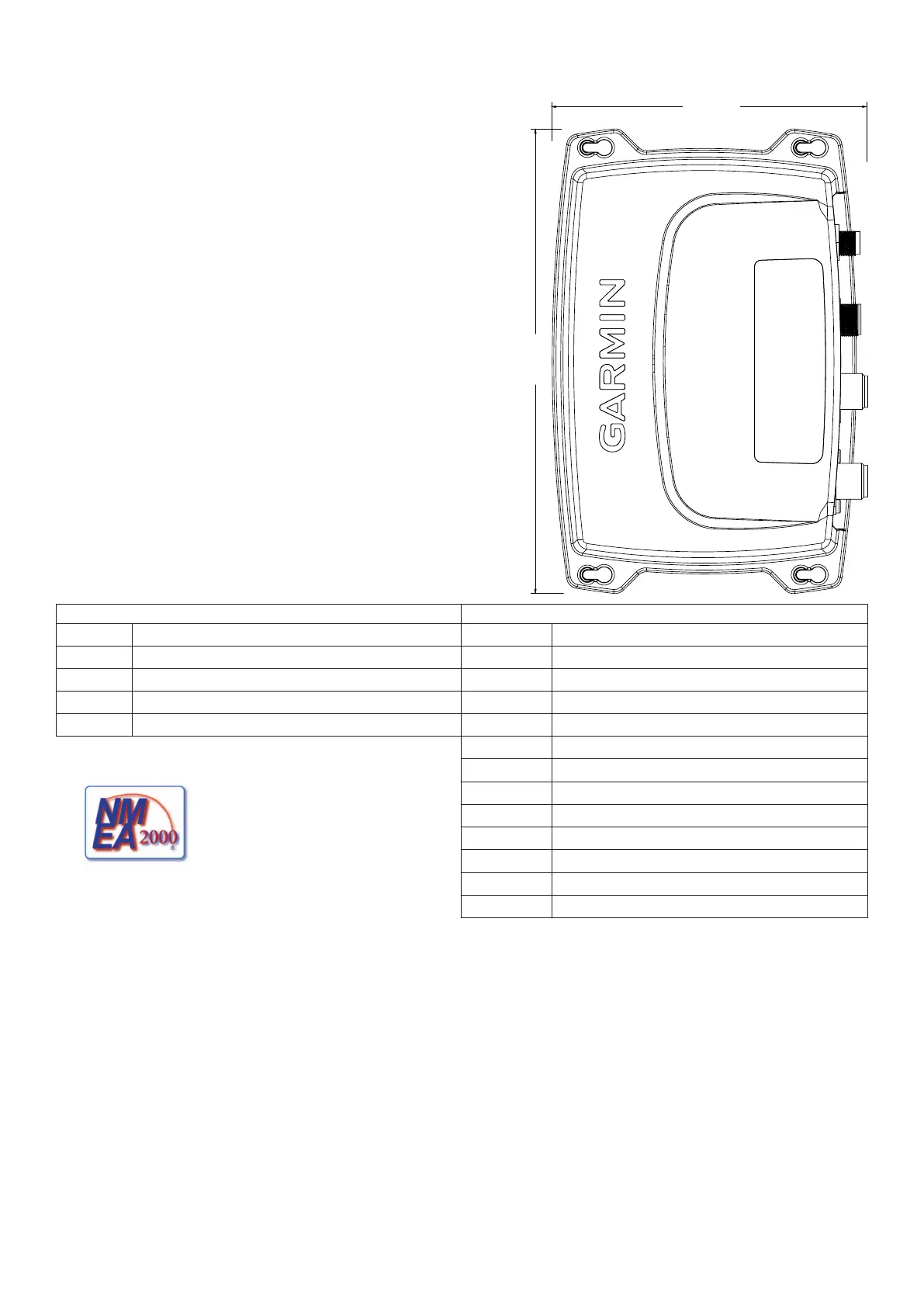

Dimensions: W × H × D: 8
5
/
32
× 5
17
/
32
× 1
25
/
32
in. (207 × 140.6 × 45.7 mm)
Weight: 1 lb. 7.6 oz. (670 g)
Temperature Range: from -4ºF to 158ºF (from -20ºC to 70ºC)
Compass-safe Distance: 15
3
/
4
in. (40 cm)
Waterproof Rating: IEC 60529 IPX7 (Immersion in 1 meter of standing
water for 30 minutes)
Power
Source: 9.6–31.2 Vdc (12 Vdc or 24 Vdc boat battery)
Usage: 2.5 W max
Fuse: 5 A fast-acting
NMEA 2000 Power Usage: LEN=2
Antenna
Antenna Connector: PL259
Antenna Port Impedance: 50 Ω
NMEA 2000 PGN Information
Receive Transmit
059392 ISO Acknowledgment 059392 ISO Acknowledgment
059904 ISO Request 060928 ISO Address Claim
060928 ISO Address Claim 126208 NMEA Request/Command/Acknowledge Group Function
126208 NMEA - Command/Request/Acknowledge Group Function 126464 PGN List
126992 System Time 126996 Product Information
129038 AIS Class A Position Report
129039 AIS Class B Position Report
129040 AIS Class B Extended Position Report
TheGarminAIS300isNMEA2000certied.
129794 AIS Class A Static and Voyage Related Data
129798 AIS SAR Aircraft Position Report
129802 AIS Safety Related Broadcast Message
129809 AIS Class B “CS” Static Data Report, Part A
129810 AIS Class B “CS” Static Data Report, Part B
NMEA 0183 Communication Information
When connected to a NMEA 0183 device, the AIS 300 transmits the VDM sentence.
Product Registration
Help us better support you by completing our online registration today. Go to http://my.garmin.com. Keep the original sales receipt, or a
photocopy, in a safe place.
Contact Garmin
Contact Garmin Product Support if you have any questions while using the AIS 300. In the USA, go to www.garmin.com/support, or
contact Garmin USA by phone at (913) 397.8200 or (800) 800.1020.
In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000.
In Europe, go to www.garmin.com/support and click Contact Support for in-country support information, or contact Garmin (Europe) Ltd.
by phone at +44 (0) 870.8501241.
8
5
/
32
in.
(207 mm)
5
17
/
32
in.
(140.6 mm)

Garmin AIS Specifications

General

Waterproof	Yes
NMEA 2000	Yes
NMEA 0183	Yes
Waterproof Rating	IPX7
GPS	Yes
Operating Temperature Range	-15°C to 55°C
Storage Temperature Range	-20°C to 70°C
Power Supply	9.6-31.2 Vdc
