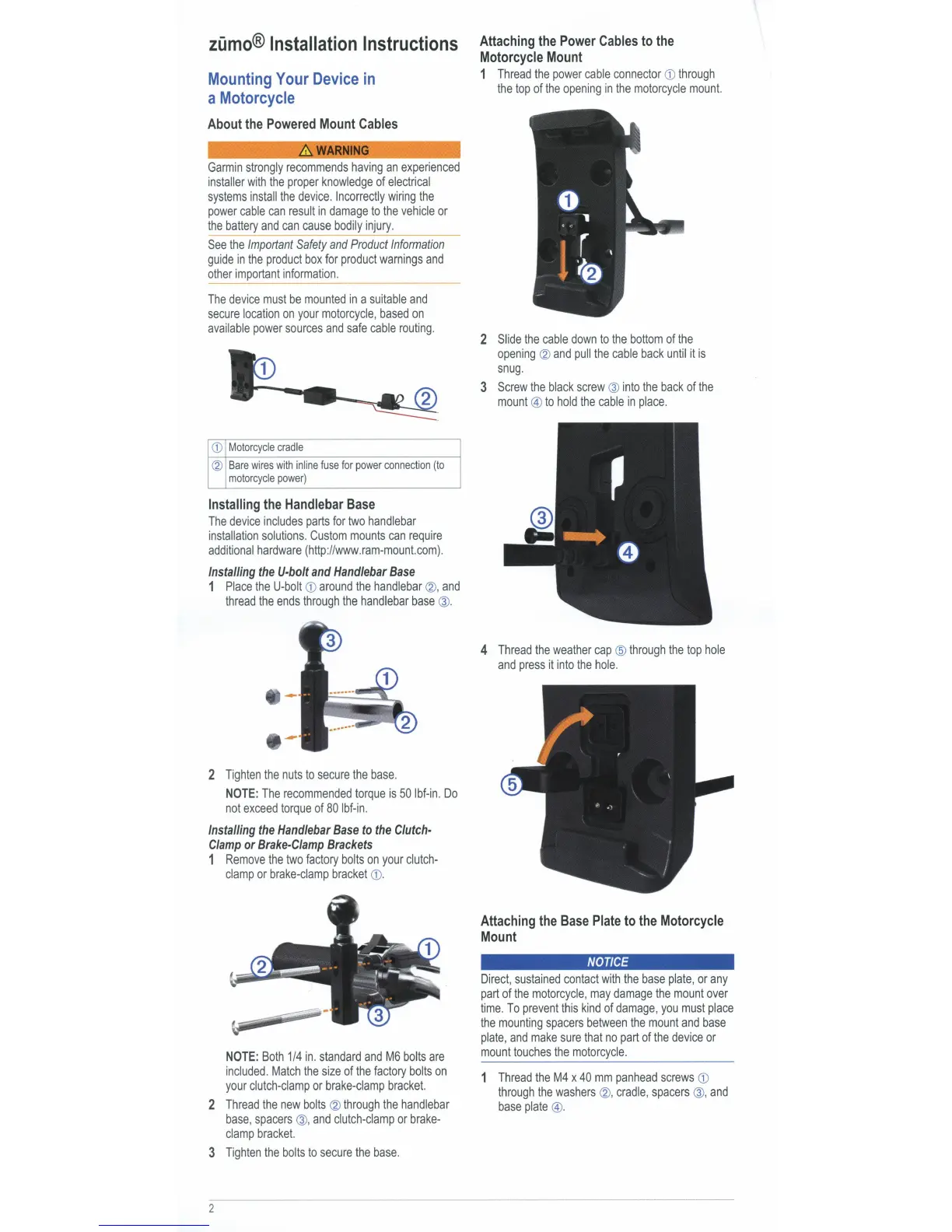

zumo® Installation Instructions
Mounting Your Device in
a Motorcycle
About the Powered Mount Cables
/1. WARNING
Garmin strongly recommends having an experienced
installer with the proper knowledge of electrical
systems install the device . Incorrectly wiring the
power cable can result in damage to the vehicle or
the battery and can cause bodily injury.
See the Important Safety and Product Information
guide in the product box for product warnings and
other important information.
The device must be mounted in a suitable and
secure location on your motorcycle, based on
available power sources and safe cable routing .
CD
Motorcycle cradle
@
Bare wires with in line fuse for power connection (to
motorcycle power)
Installing the Handlebar Base
The device includes parts for two handlebar
installation solutions. Custom mounts can require
additional hardware (http://www.ram-mount.com).
Installing the U-bolt and Handlebar Base
1 Place the U-bolt CD around the handlebar @, and
thread the ends through the handlebar base @.
2 Tighten the nuts to secure the base.
NOTE: The recommended torque is 50 lbf-in . Do
not exceed torque of 80 lbf-in.
Installing the Handlebar Base to the Clutch-
Clamp or Brake-Clamp Brackets
1 Remove the two factory bolts on your clutch-
clamp or brake-clamp bracket CD .
NOTE: Both 1/4 in. standard and M6 bolts are
included. Match the size of the factory bolts on
your clutch-clamp or brake-clamp bracket.
2 Thread the new bolts @ through the handlebar
base , spacers @, and clutch-clamp or brake-
clamp bracket.
3 Tighten the bolts to secure the base.
Attaching the Power Cables to the
Motorcycle Mount
1 Thread the power cable connector CD through
the top of the opening in the motorcycle mount.
2 Slide the cable down to the bottom of the
opening @ and pull the cable back until it is
snug.
3 Screw the black screw @ into the back of the
mount @ to hold the cable in place.
4 Thread the weather cap @ through the top hole
and press it into the hole.
Attaching the Base Plate to the Motorcycle
Mount
NOTICE
Direct, sustained contact with the base plate, or any
part of the motorcycle , may damage the mount over
time. To prevent this kind of damage, you must place
the mounting spacers between the mount and base
plate, and make sure that no part of the device or
mount touches the motorcycle.
Thread the M4 x 40 mm panhead screws CD
through the washers @, cradle, spacers @, and
base plate @.
