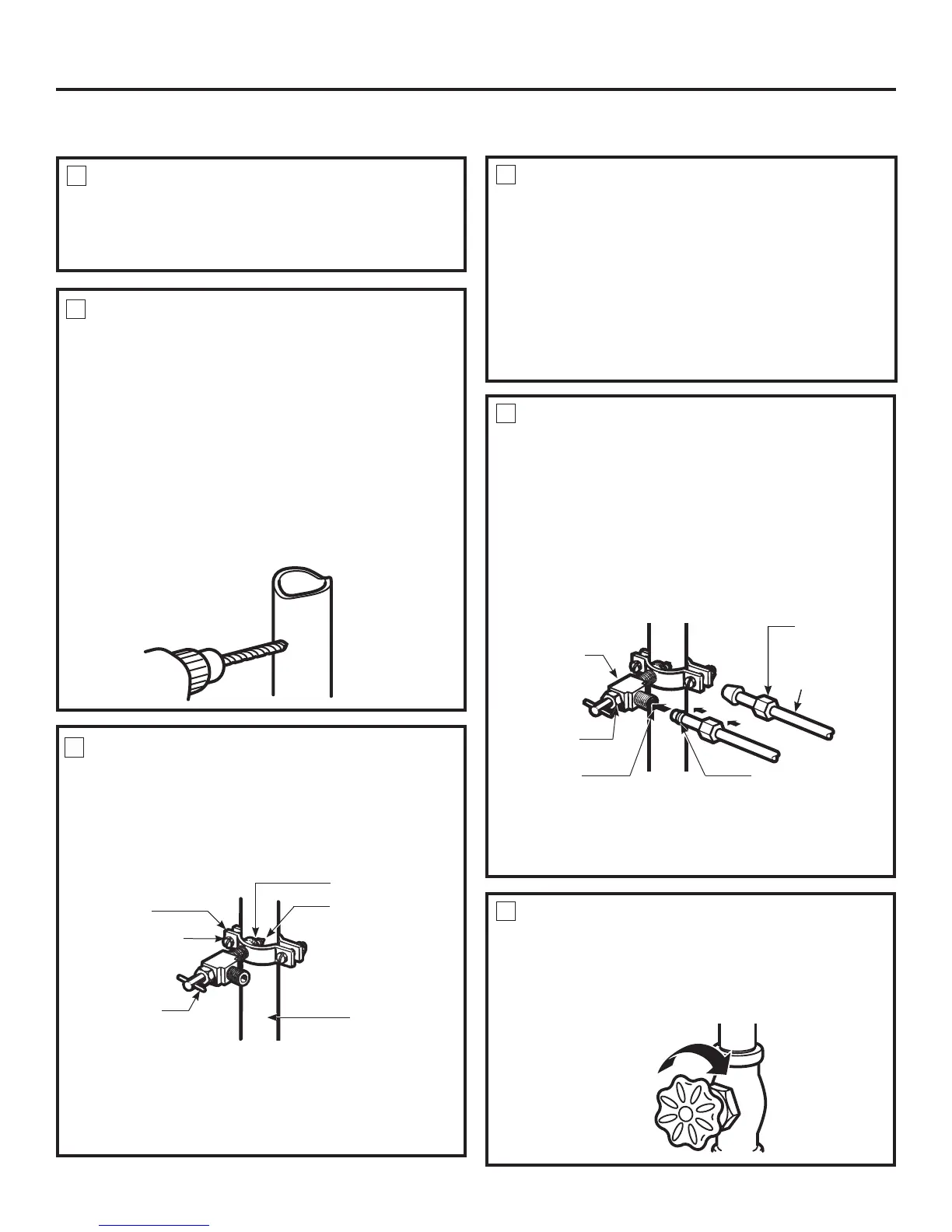

Installation Instructions
Install the shuto valve on the nearest frequently used drinking water line.
1
SHUT OFF THE MAIN WATER SUPPLY
AND UNPLUG REFRIGERATOR
Turn on the nearest faucet (counterclockwise) long
enough to clear the line of water.
11
Choose a location for the valve that is easily
accessible. It is best to connect into the side of a
vertical water pipe. When it is necessary to connect
into a horizontal water pipe, make the connection to
the top or side, rather than at the bottom, to avoid
drawing o any sediment from the water pipe.
Drill a 1/4” hole in the water pipe (even if using a self-
piercing valve), using a sharp bit. Remove any burrs
resulting from drilling the hole in the pipe. Take care
not to allow water to drain into the drill. Failure to
drill a 1/4” hole may result in reduced ice production
or smaller cubes.
DRILL THE HOLE FOR THE VALVE
2
Fasten the shuto valve to the cold water pipe with the
pipe clamp.
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the tubing.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
FASTEN THE SHUTOFF VALVE
3
Washer
Inlet End
Clamp
Screw
Vertical Cold
Water Pipe
Saddle-Type
Shuto Valve
Pipe Clamp
6
FLUSH OUT THE TUBING
Turn the main water supply on (counterclockwise) and
ush out the tubing until the water is clear.
Shut the water o at the water valve after about
one quart (1 liter) of water has been ushed through
the tubing.
5
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve) for
copper tubing onto the end of the tubing and connect
it to the shuto valve.
Make sure the tubing is fully inserted into the valve.
Tighten the compression nut securely.
For plastic tubing from a GE SmartConnect
™
Refrigerator Tubing kit, insert the molded end of the
tubing into the shuto valve and tighten compression
nut until it is hand tight, then tighten one additional
turn with a wrench. Overtightening may cause leaks.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
Saddle-Type
Shuto Valve
Compression
Nut
SmartConnect
™
Tubing
Packing Nut
Outlet Valve
Ferrule (sleeve)
4
ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
oor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sucient extra tubing (about 8
feet [244 cm] coiled into 3 turns of about 10” [25 cm]
diameter) to allow the refrigerator to move out from
the wall after installation.
To Next Page
