GE 700 VA User Manual

7 Programmer plug-in

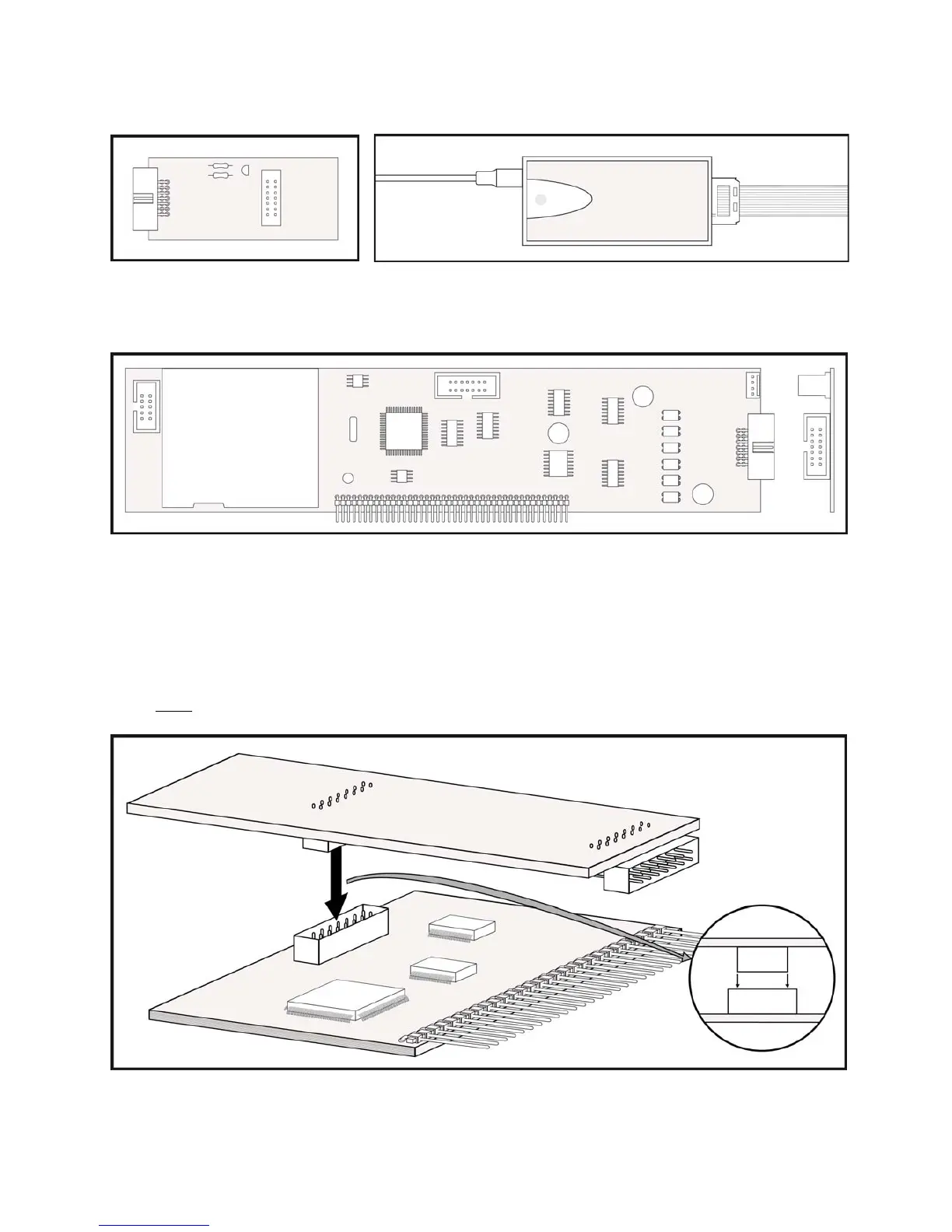

Top view of the VH Prog. Board Top view of the E8a Programmer
Top view of the IM0128A5 Board
• 1 Insert the J1 connector of the VH Prog. Board in mid-position of J4 connector of the IM0128A5.
NOTE
: Pay attention that J1 pins are correctly fixed on J4 connector.
Fig. 1
Modifications reserved 9 ISG_VHS_FRM_UPD_XGB_V010.doc
