INSTALLATION, OPERATIONS AND MAINTENANCE MANUAL 21
Ref. ReliaGear/Evolution
horizontal bus
Splice
hardware
Ref. Spectra
offset splice
Ref. Spectra
horizontal bus
Horizontal offset splice bus
bracing typical both sides
Ref. ReliaGear/Evolution
horizontal bus
—
40

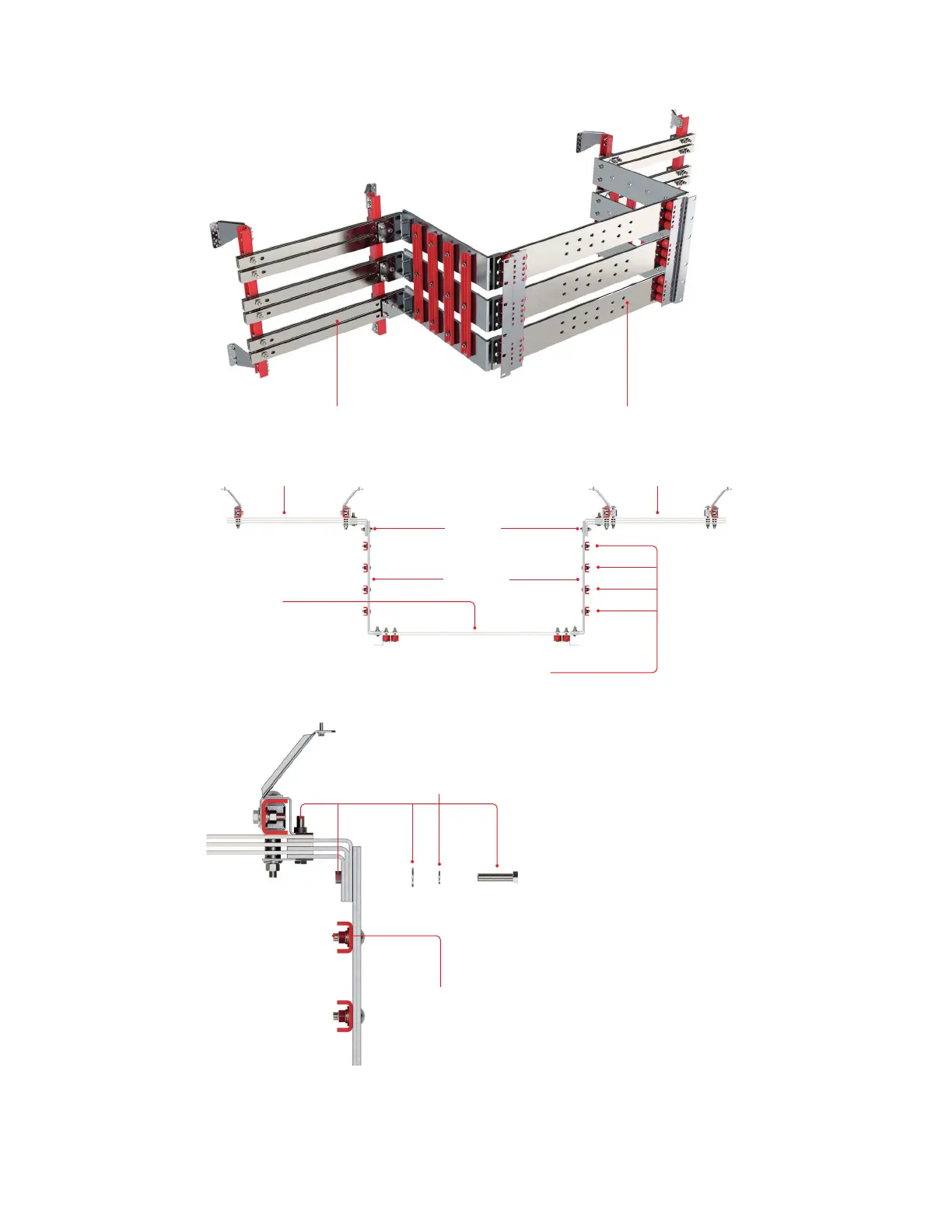

Splicing ReliaGear/
Evolution and Spectra
bus – ISO View of 3000A
offset bus configuration
(shown for reference)
—
41
Splicing ReliaGear/
Evolution and Spectra
bus – Top View of 3000A
offset bus configuration
(shown for reference)
—
42
Splicing ReliaGear/
Evolution and Spectra
bus – 3000A offset
bus configuration
splice components
—
40
Isometric view offset splicing assembly
Ref. Spectra horizontal busRef. ReliaGear/Evolution horizontal bus
—
41
Offset splice hardware:
½"-13 Hex bolt
½" Split rock washer (CU) or
½" Belleville washer (AL or CU)
½" Flat washer
½"-13 Press net
Ref. offset splice bus brace:
½"-13 Carriage bolt
½" Flat washer
½" Split rock washer (CU) or
Belleville washer (AL or CU)
½"-13 Nut
—
42
