13
Service Manual
T
echnical Information
(1)Models:AEE07KP
,AEE09KP
,AEE12KP
,AEE18KP
,AEE24KP
Over
150
Over
150
Over 500
W
D
H
Model
W
H
D
AEE07KP
450
350
580
AEE09KP
560
375
618
AEE12KP
560
375
618
AEE18KP
660
428
770
AEE24KP
660
428
770
Unit:mm

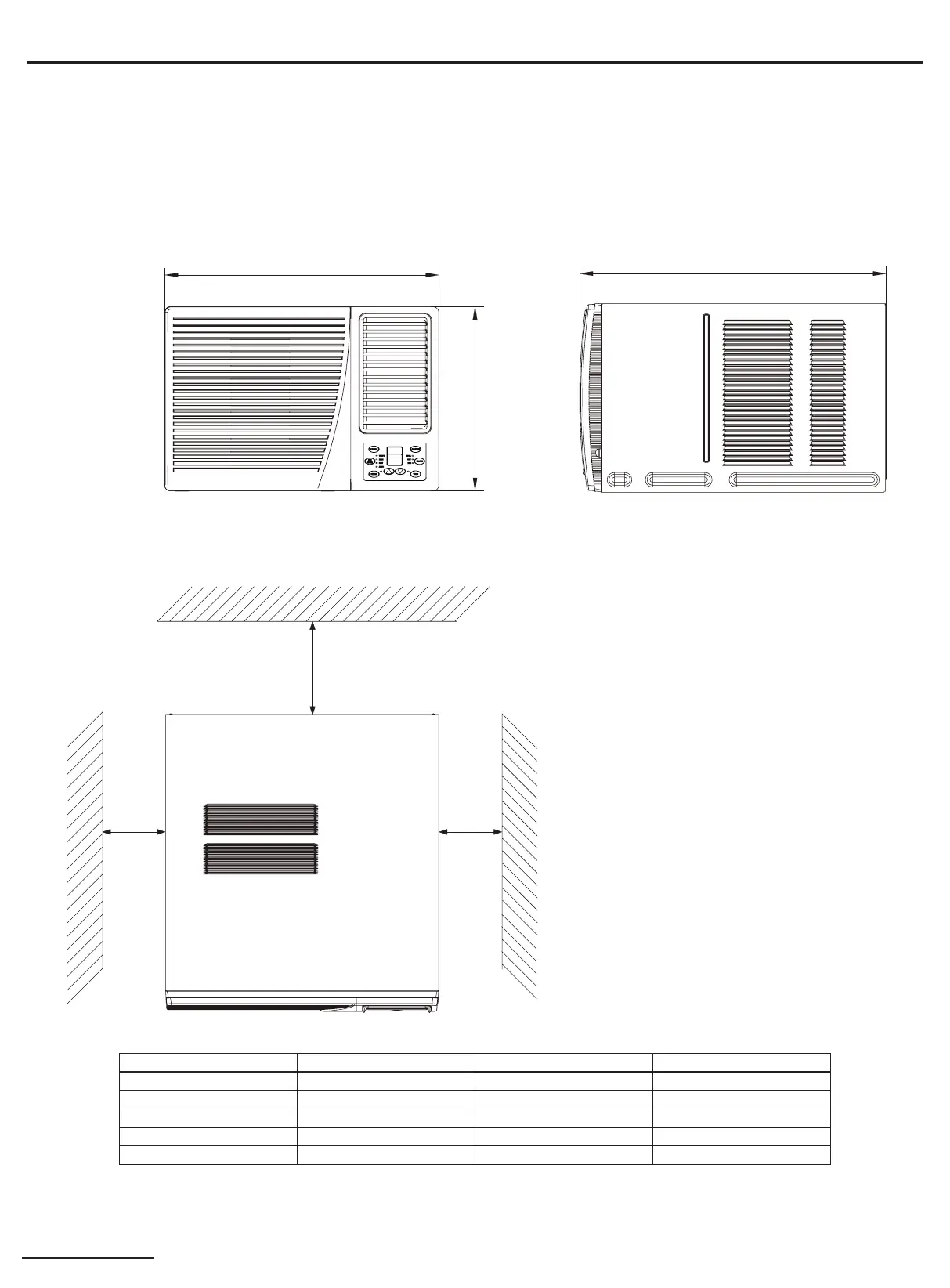

3. Construction V
iews
14
16
Table of Contents
Default Chapter
2
Table of Contents
2
Product View
3
Summary and Features
3
1 Safety Precautions
4
2 Specifications
5
3 Construction Views
15
4 Refrigerant System Diagram
17
5 Schematic Diagram
18
Electrical Wiring
18
Electrical Data
18
Printed Circuit Board
20
6 Function and Control
21
Remote Control Operations
21
Cool Mode
22
Cooling Descriptions
22
Auto Fan Speed
22
Power Outage Recovery Feature
22
Replacement of Batteries
23
Name and Function of Wireless Remote Control
24
General Operation
26
Optional Operation
26
Introduction for Special Function
26
About AUTO Mode/About Lock/Switch between Fahrenheit and Centigrade
26
Changing Batteries
27
Operation Introduction of Remote Controller
28
Buttons on Remote Controller
28
Icon Display on Remote Controller
28
Simple Operation
29
Replacement of Batteries in Remote Controller
30
Remote Control Panel
31
Description of each Control Operation
33
Cooling Mode
33
Dry Mode
33
Energy Saving Mode/Fan Mode
33
Swing/Buzzer/Sleep/Auto Wind
34
Warning Function of Filter
34
Memory Function
34
LED, Dual 8 Nixietbe
34
Temperature Setting
35
Function Setting for Buttons
35
Protection Function
35
Malfunction Detection for Temperature Sensor
35
System Basis Function
36
Cooling Mode/Auto Mode
36
Fan Mode/Dry Mode
36
Button Function Setting
36
7 Installation Instructions
37
Location
37
Installation of Accessories
37
Drain Water
38
Relocation
38
Noise
38
Notes on Electrical Wiring
38
Model AEE07KP Exploded View and Parts List
39
Models AEE09KP, AEE12KP Exploded View and Parts List
42
Model AEE18KP Exploded View and Parts List
45
Model AEE24KP Exploded View and Parts List
48
Model AED07KP Exploded View and Parts List
51
Model AED09KP Exploded View and Parts List
54
Model AED12KP Exploded View and Parts List
57
9 Troubleshooting
60
10 Removal Procedure
64
Appendix
70
Appendix 1: Reference Sheet of Celsius and Fahrenheit
70
Appendix 2: List of Resistance for Temperature Sensor
71
Over
72
