Installation Instructions

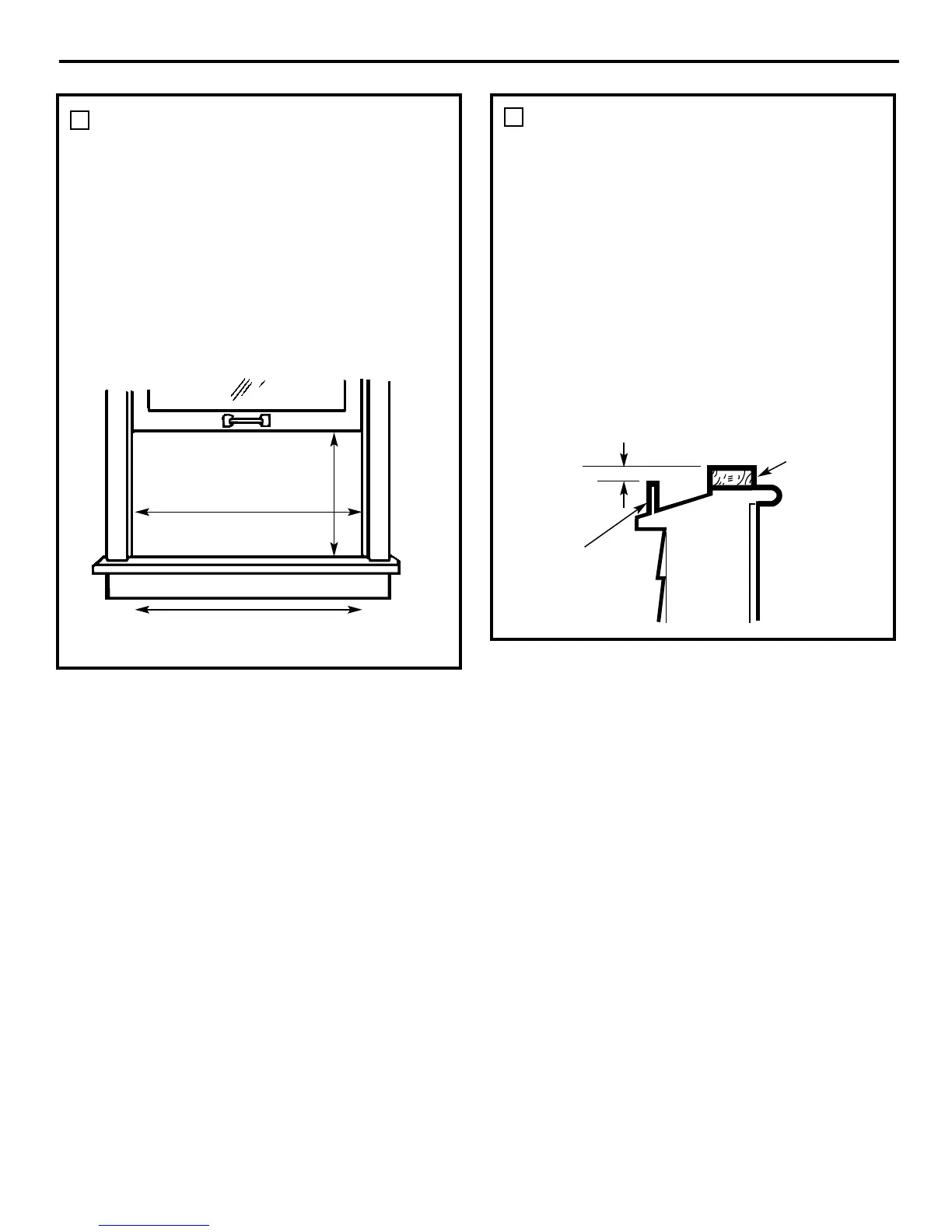

WINDOW REQUIREMENTS
• These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
• The air conditioner can be installed
without the accordion panels if needed
to fit in a narrow window. See the
window opening dimensions.
• All supporting parts must be secured
to firm wood, masonry or metal.
• The electrical outlet must be within
reach of the power cord.
1
STORM WINDOW REQUIREMENTS
A storm window frame will not allow the
air conditioner to tilt toward the outside,
and will keep it from draining properly.
To adjust for this, attach a piece of wood
to the stool.
WOOD PIECES–
WIDTH: 2″
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the stool to
make it 1/2″ higher than the top of the
storm window frame.
Attach securely with nails or screws
provided by the installer.
1/2″ higher
than frame
Storm
window
frame
Wood
Stool
2
11
18″ min.
29″ to 41″
(With accordion panels)
26
1
⁄4″ min.
(Without accordion panels)
To Next Page
