330400 and 330425 Accelerometer Operation Manual
PART NUMBER 16925 — (SEE NOTE)
.B. "A" CONNECTOR
.,.. I:
"C"
22 AWG CABLE
PART NUMBER
0.160 DIA (4.1 mm)
NOTE
NCREMENTS OF 1.0 FOOT (0.30 Metres)
EXAMPLE: 2 = 2 FEET (0.61 Metres)0
12151= 25 FEET (7.62 Metres)
MIN LENGTH = 2.0 FEET (0.61 Metres)
MAX LENGTH = 99 FEET (30.18 Metres)
*ALL DIMENSION ARE IN INCHES (MIWMETRES) UNLESS OTHERWISE SPECIFIED.
"A" WHT
0 "B" RED
'C" BLK

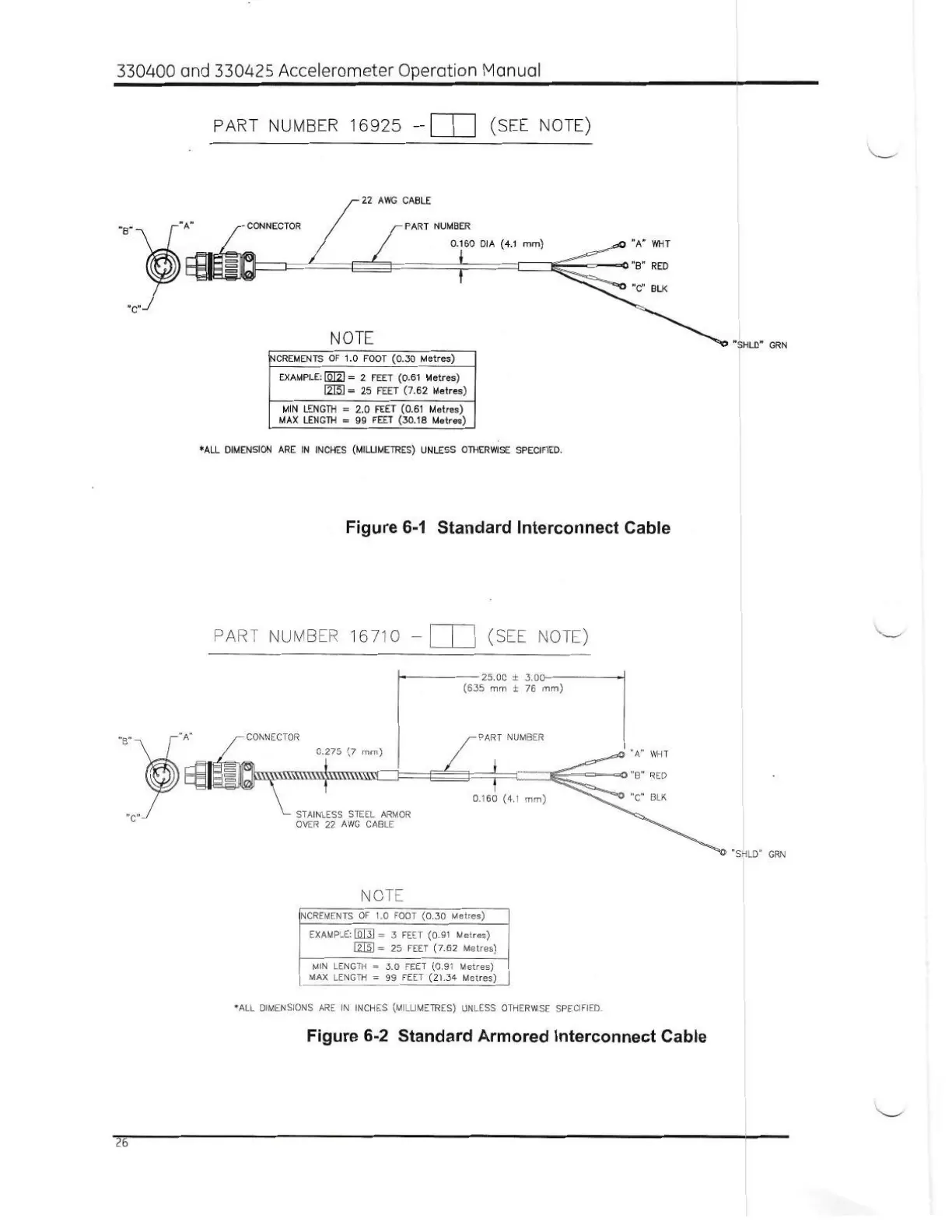

Figure 6-1 Standard Interconnect Cable
PART NUMBER 16710 —
(SEE NOTE)
CONNECTOR
0.275 (7 mm)
STAINLESS STEEL ARMOR
OVER 22 AWG CABLE
NOTE
25.00 ± 3.0
(635 mm ± 76 mm)
PART NUMBER
0.160 (4.1 mm)
NCREMENTS OF 1.0 FOOT (0.30 Metres)
EXAMPLE:10
3
12151
= 3 FEET (0.91 Metres)
25 FEET (7.62 Metres)
MIN LENGTH = 3.0 FEET (0.91 Metres)
MAX LENGTH = 99 FEET (21.34 Metres)
*ALL DIMENSIONS ARE IN INCHES (MILLIMETRES) UNLESS OTHERWISE SPECIFIED.
"A" WHT
"B" RED
"C" BLK
Figure 6-2 Standard Armored Interconnect Cable
"SHLD" GRN
"SHLD" GRN
26
