GE Built-In Dishwasher User Manual

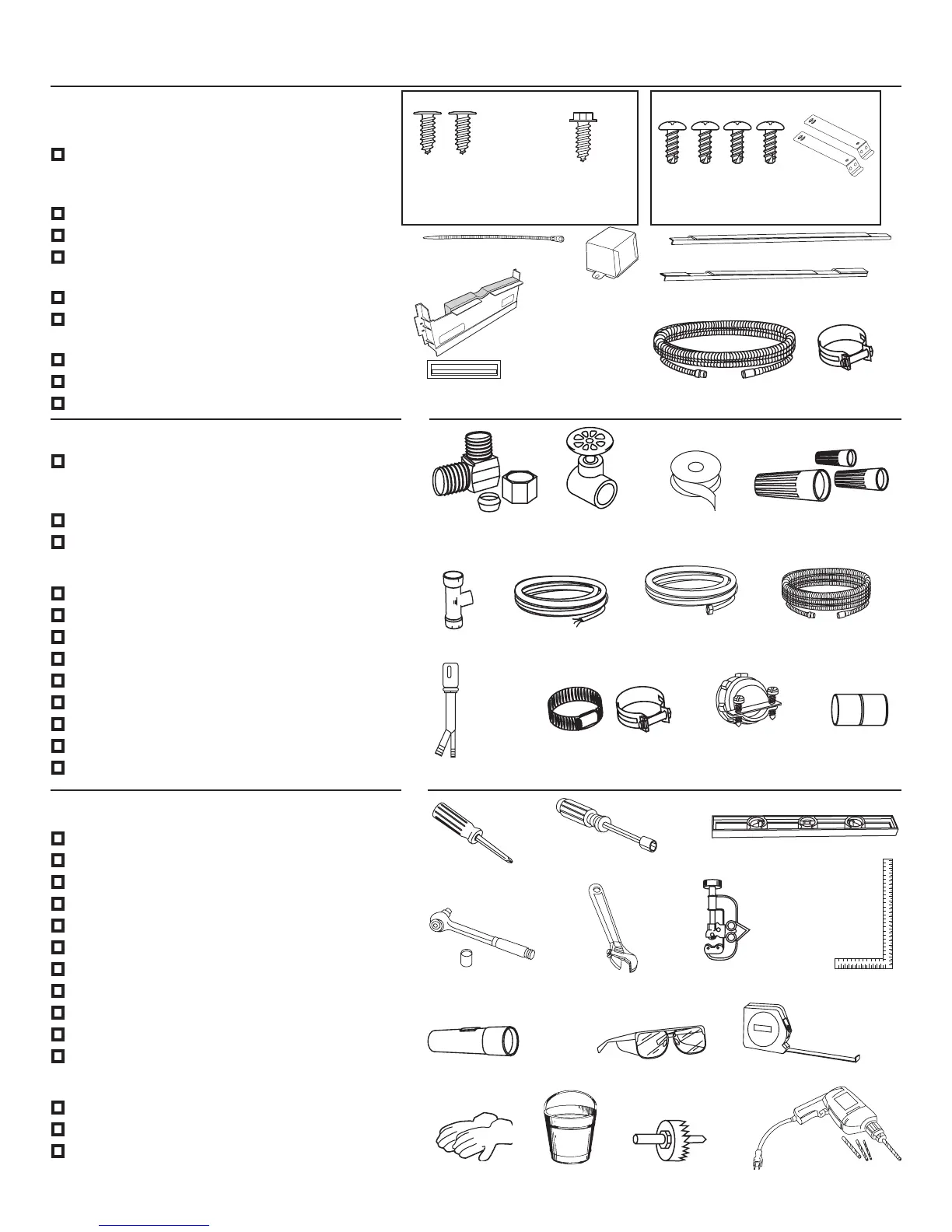

PARTS SUPPLIED WITH
INSTALLATION KIT:
■ Two #8-18 x 5/8" Phillips special head screws, to
secure dishwasher to underside of countertop or
sides of cabinets.
■ Junction box cover and #10-1/2" hex-head screw
■ Side and top trim
■ Trim Panel Accessory Kit (not shown)
(Custom panel models only)
■ Sound upgrade kit (some models)
■ Drain hose (78") , drain hose hanger and hose
clamp
■ Literature, product samples and/or coupons
■ Hard water test strip (Models with Bulk Dispenser)
■ Countertop Bracket Kit
Installation Preparation
TOOLS YOU WILL NEED:
■ Phillips-head screwdriver
■ 1/4" and 5/16" nutdriver
■ 6" Adjustable wrench
■ Level
■ Carpenter’s square
■ Measuring tape
■ Safety glasses
■ Flashlight
■ Bucket to catch water when flushing the line
■ 15/16" socket
■ Gloves
For New Installations Only:
■ Tubing cutter
■ Drill and appropriate bits
■ Hole saw set
MATERIALS YOU WILL NEED:
■ Ferrule, compression nut and 90° Elbow (3/8" NPT
external thread on one end, opposite end sized to
fit water supply)
■ Thread seal tape
■ UL-listed wire nuts (3)
Materials For New Installations Only:
■ Air gap for drain hose, if required
■ Waste tee for house plumbing, if applicable
■ Electrical cable or power cord, if applicable
■ Screw-type hose clamps
■ Strain relief for electrical connection
■ Hand shut-off valve
■ Water line 3/8" min. copper
■ Coupler for extending drain line, if applicable
■ GPF10L 10' drain hose, if needed
90 ° Elbow
Air Gap
Carpenters Square
Coupler
Drill & Bits
Electrical Cable
Flashlight
Hole Saw Bit
Level 2
Measuring Tape
Nutdriver
Ratchet & Socket
Safety Glasses
Screw Driver II
Tape
Tubing Cutter
Wire Nuts
#8 Phillips
Special Head Screws
5/8” long
Hose Clamp
Drain Hose (78")
Hand
Shut-Off
Valve
90° Elbow,
Ferrule and
Compression Nut
Thread
Seal Tape
Wire Nuts (3)
Hot Water Line
Electrical Cable
(or Power Cord, if applicable)
Waste Tee
Coupler
Air
Gap
Screw-Type
Hose Clamps
Strain Relief
Phillips-
Head
Screwdriver
1/4" and
5/16" Nutdriver
Level
Carpenter’s
Square
1/4" and
15/16" Socket
6" Adjustable
Wrench
Tubing Cutter
Measuring Tape
Safety GlassesFlashlight
Gloves
Bucket Hole Saw Set Drill and Bits
#8 Phillips Special
Head Screws
Drain Hose
Waste Tee
Strain Relief
Hot Water Line
GLOVES
Bucket
2
Drain Hose Hanger
Crescent Wrench
#10 hex screw
#10 Hex-Head
J-Box Screw
1/2" long
Sound Upgrade Kit
(Some Models)
GPF10L
10' Drain Hose
junction box
Junction Box Cover
Drain Hose 10ft.
Screw Kit
1865 Art A.eps
Hard Water Test Strip
(Models with
Bulk Dispenser)
Top Trim
Side Trim (2)
05A-1182M
Countertop Bracket Kit
#8 Phillips Pan-head
Screws 3/8" long for
top-mounting
Top-Mounting
Brackets
