Preparing of Installation
INSTALLATION
Read these instructions completely and carefully.
Freezer Location
Your freezer should be conveniently located for
day-to-day use in a dry, well-ventilated room.
'RQRWLQVWDOOWKHIUHH]HUZKHUHWKHWHPSHUDWXUHZLOOJR
EHORZ)&RUDERYH)&EHFDXVHLWZLOO
not maintain proper temperatures.
'RQRWLQVWDOOWKHIUHH]HULQDORFDWLRQH[SRVHGWRUDLQ
water or direct sunlight.
Be sure to install your freezer on a floor strong enough
to support it when it is fully loaded.
Level Freezer
Level the freezer from side to side and front to back
VRWKDWWKHOLGZLOOVHDOSURSHUO\8VHVKLPVWROHYHOWKH
freezer if necessary.
NOTE: It should not be necessary to remove the lid
during installation. If, for some reason, the hinges need
adjustment, call a professional service company..
Clearances and Ventilation
$OORZDWOHDVW´PPFOHDUDQFHRQERWKVLGHVRI
WKHIUHH]HUDQG´PPEHWZHHQWKHEDFNRIWKH
freezer and the wall. Leave room above the freezer to
open the lid.
.HHSIODPPDEOHPDWHULDOVDQGYDSRUVVXFKDVJDVROLQH
away from freezer.
'RQRWFRYHUWKHIUHH]HUZLWKLWHPVVXFKDVEODQNHWV
sheets, tablecloths, etc. This reduces air circulation.
Lid Removal
CAUTION
LIFTING HAZARD
7KHOLGLVKHDY\8VHERWKKDQGVWRVHFXUHWKHOLGEHIRUH
lifting.
CAUTION
HINGE SPRING UNDER TENSION

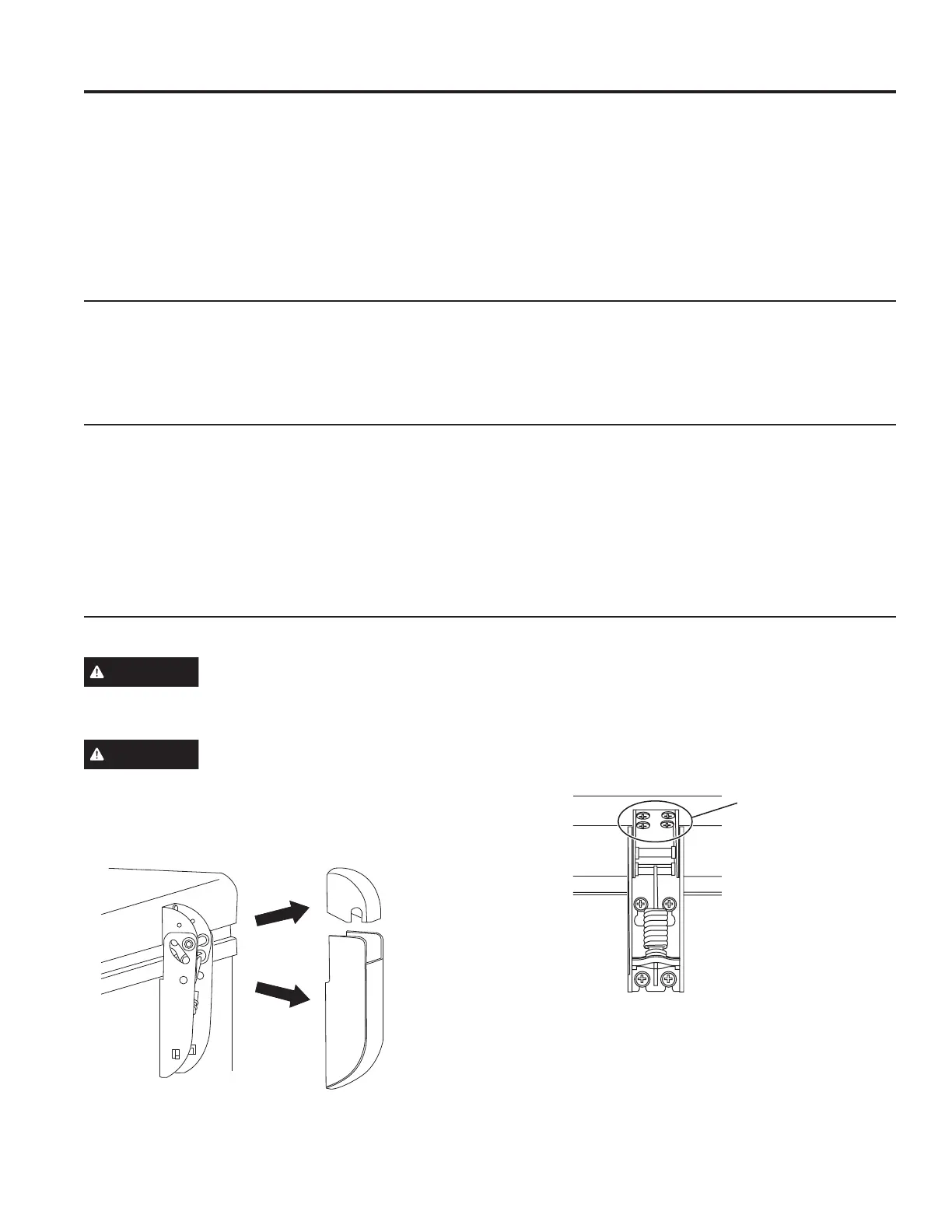

If it is necessary to remove the lid, follow these steps:
1. Remove the lower part of the hinge cover and then
remove the upper part.
2. Open the lid to the maximum position. (The hinges are
loosest at this position.)
3. Remove the 4 screws from the upper part of the hinge
and lid. The 16' freezer has 3 hinges and the 22'
freezer has 4 hinges total.
4. To reinstall lid follow steps in reverse. Tighten all
hinge screws but avoid over-tightening to prevent
stripping. Reinstall hinge covers.
8SSHU+LQJH
Cover
Lower Hinge
Cover
Hinge Screws to
be Removed
