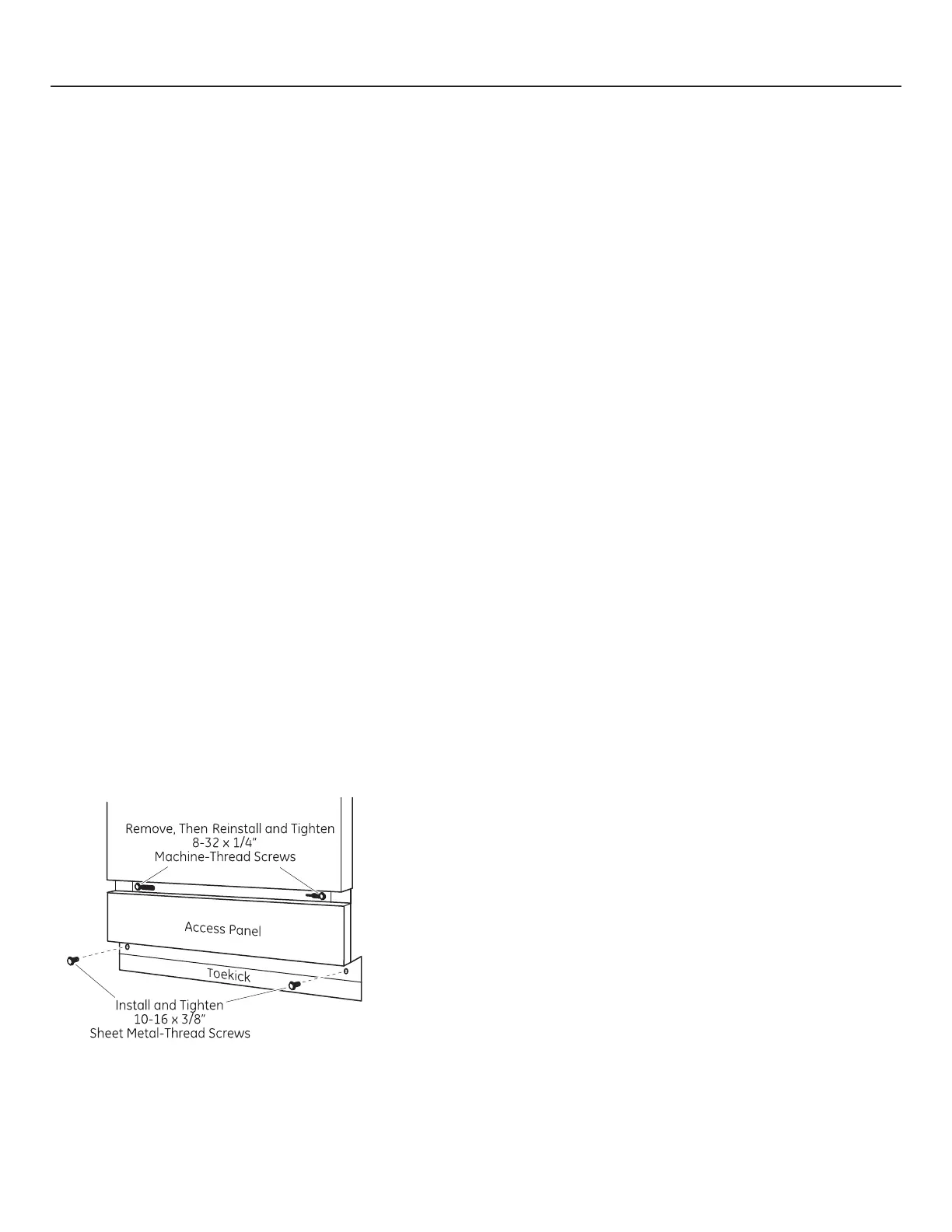

Figure AA
Dishwasher Installation
STEP 20: REPLACE ACCESS PANEL AND
TOEKICK
In this step you will need the panels and the two
screws set aside in Step 4.
There are two types of screws used. The 8-32 x 1/4"
screws are used at the top of the access panel and
should still be in place. The 10-16 x 3/8" screws are
used at the bottom of the access panel and secure
both the access panel and toekick.
IMPORTANT – Screws are not
interchangeable. To prevent damage to your
dishwasher, use the proper screw in the proper
location. Do not mix screw types or lengths.
• Place the toekick against the legs of the
dishwasher.
• Remove the two 8-32 x 1/4" machine-thread
screws.
• Align the access panel to the dishwasher.
• Select the two 8-32 x 1/4" machine-thread screws
just removed and insert them through the top
holes in the access panel and into the dishwasher
frame.
• Tighten these screws.
• Align the toekick and make sure the bottom edge
LVDJDLQVWWKHÀRRU
• Insert and tighten the two 10-16 x 3/8" sheet metal
thread screws, making sure the bottom edge of
WKHWRHNLFNVWD\VLQFRQWDFWZLWKWKHÀRRU
STEP 21: LITERATURE
• Leave the Owners’ Manual, Installation
Instructions, samples and/or coupons with
consumer.
15
Tip: Prevent tub damage and reduce sound from
under the dishwasher.
Use the machine-thread screws in the top holes and
the sheet metal-thread screws in the bottom holes.
Make sure the toekick is against the floor.
