16 49-90587
Installation Instructions

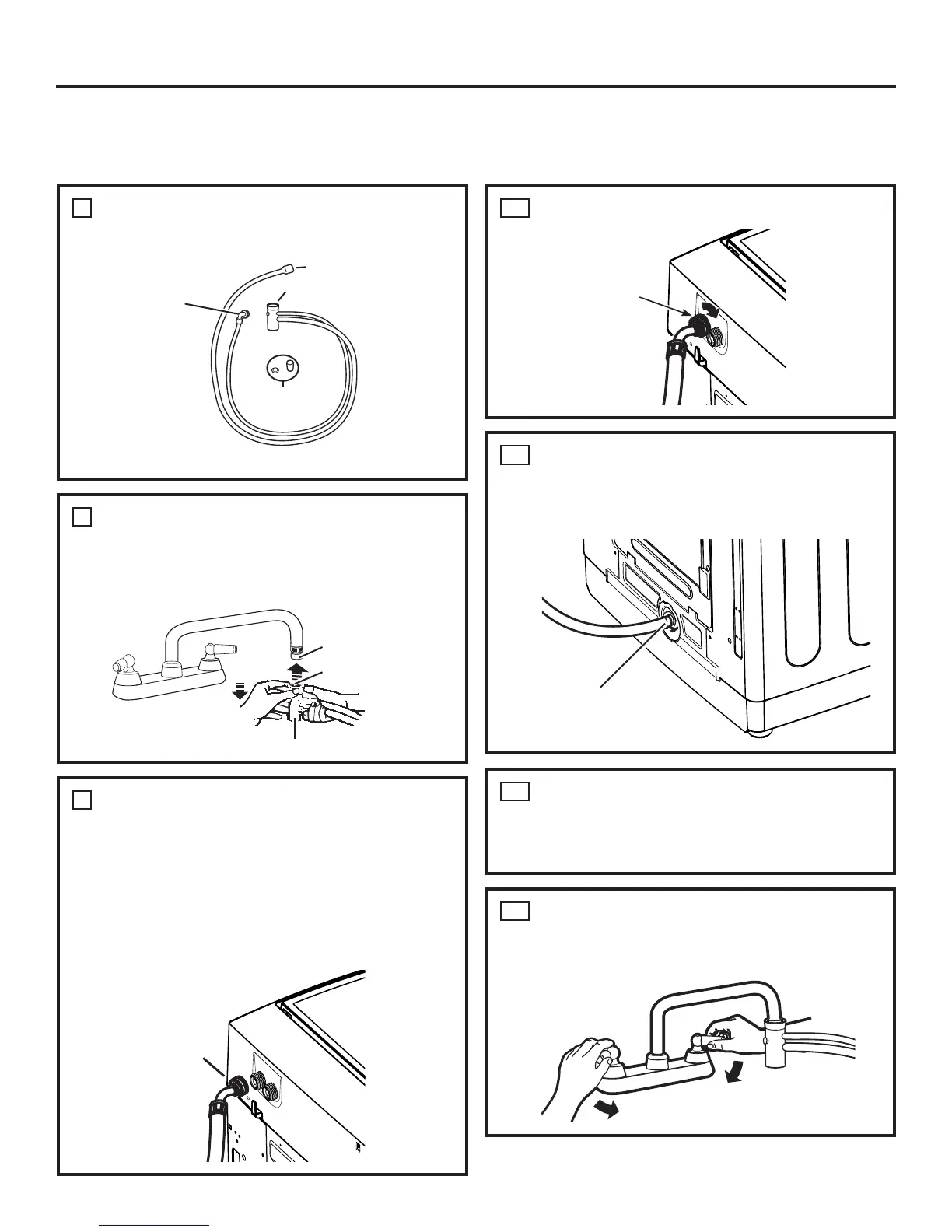

Water and drain connections for Portable Model (GNW128P) using one faucet
connection only.
NOTE: If have Stationary Model (GNW128S) or Portable Model (GNW128P), and will use with two faucet connections,
then follow the connection instructions on the previous page and skip this one faucet connection section.
7
REMOVE THE UNI-COUPLE
®
HOSE
FROM INSIDE THE WASHER
BASKET
Uni-Coupler Hose
Faucet Connector
Drain Connection
Cold Water
Supply Connector
Faucet Adapter
8
CONNECT TO WATER LINE
Attach the hose connector to the faucet adapter by
pulling down on the locking collar while lifting up on the
connector until it snaps into place. Make sure the water
filter provided is in place.
Hose Connector
Locking Collar
Lift up
and
lock on
Pull down
Faucet Adapter
9
CONNECT TO VALVE INLET
Unplug electrical cord before installing water hose. If not
installed, install rubber washer in one end of cold water
hose. Thread cold water hose onto BLUE connection
(left side).
NOTE: Only the cold valve will be connected for this
installation. Hot valve should NOT be connected.
Hand tighten and use pliers to tighten hoses between 1/8
and 1/4 turn beyond hand tight.
Attach to left
cold/blue
10
TIGHTEN CONNECTOR
Tighten
11
CONNECT DRAIN HOSE
Attach the drain connection side of the uni-couple hose
to the rear of the washer. Install the clamp on the drain
connection and tighten to prevent leakage of water.
Attach uni-couple hose drain
connection and clamp
12
SET THE WASHER CONTROLS
Make sure that the Water Temp setting on the washer
control panel is set to Cold since only the cold inlet is
connected.
13
SLOWLY TURN ON THE WATER
FAUCET ALL THE WAY TO THE
DESIRED WASH TEMPERATURE
To Next Page
