GE GUD24GSSMWW Installation Instructions

Installation Instructions
Tilt the appliance sideways and remove the
foam shipping pads by pulling at the sides
and breaking them away from the appliance
legs. Be sure to remove all of the foam pieces
around the legs.
After the machine is in the home, remove
remaining packing material/carton from the
appliance.
UNPACKING YOUR APPLIANCE
2
Remove the bag containing the washer
hoses and parts from tub.
2-3/4”
NOTE: With feet set at mid position,
feet can be adjusted ± 3/8”.
* Dimension represents door closed
including handle and knobs.
FOR GAS DRYERS ONLY
Gas Inlet
Rear View of Appliance
2”

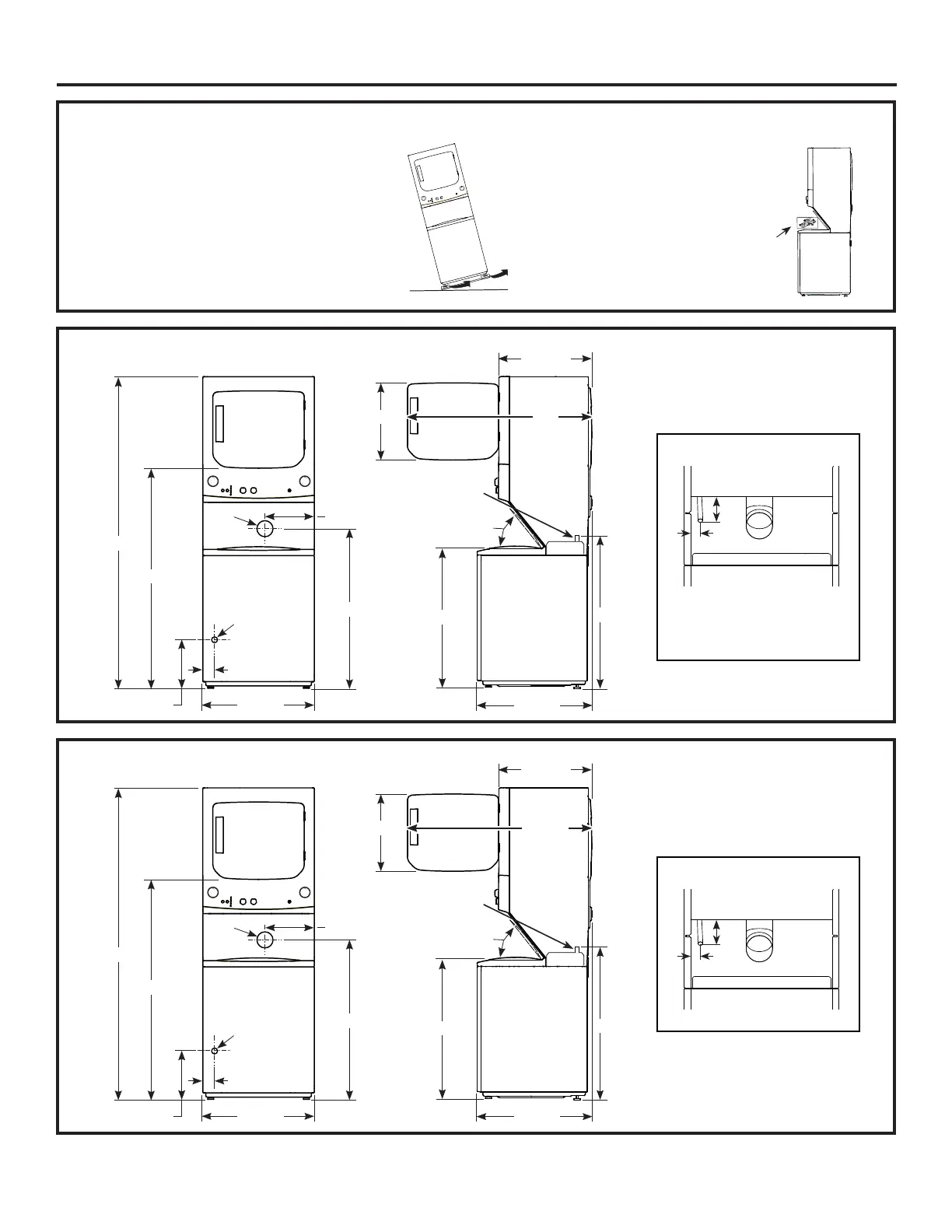

24” NOMINAL PRODUCT DIMENSIONS
*24
-
5/8”
43”
33
-
7/8”
27
-
3/8”
32
-
3/4”
51
°
18”
Water Inlets
(rear)
Drain outlet
(rear)
Vent
23
-
3/4”
37-1/4”
4
-
1/4”
21
-
1/8”
74-7/8”
51-3/8”
8
-
5/8”
3”
NOTE: With feet set at mid position,
feet can be adjusted ± 3/8”.
* Dimension represents door closed
including handle and knobs.
FOR GAS DRYERS ONLY
Gas Inlet
Rear View of Appliance
3”
27” NOMINAL PRODUCT DIMENSIONS
*26
-
1/8”
47-1/2”
34-7/8”
30
-
7/8”
34
-
3/8”
51
°
18
-
5/8”
Water Inlets
(rear)
Drain outlet
(rear)
Vent
26
-
3/4”
36-7/8”
3
-
7/8”
22
-
1/4”
75-7/8”
53-1/4”
13
-
1/4”
NOTE: 24” Gas supply
connection has a flexible hose
thus dimensions will vary.
Washer
hoses
and parts
NOTE: All dimensions are within ± 1/8”.
NOTE: All dimensions are within ± 1/8”.

GE GUD24GSSMWW Specifications

General

Brand	GE
Model	GUD24GSSMWW
Category	Washer/Dryer
Language	English
