29
Troubleshooting TipsInstallation Instructions Customer ServiceOperating InstructionsSafety Information

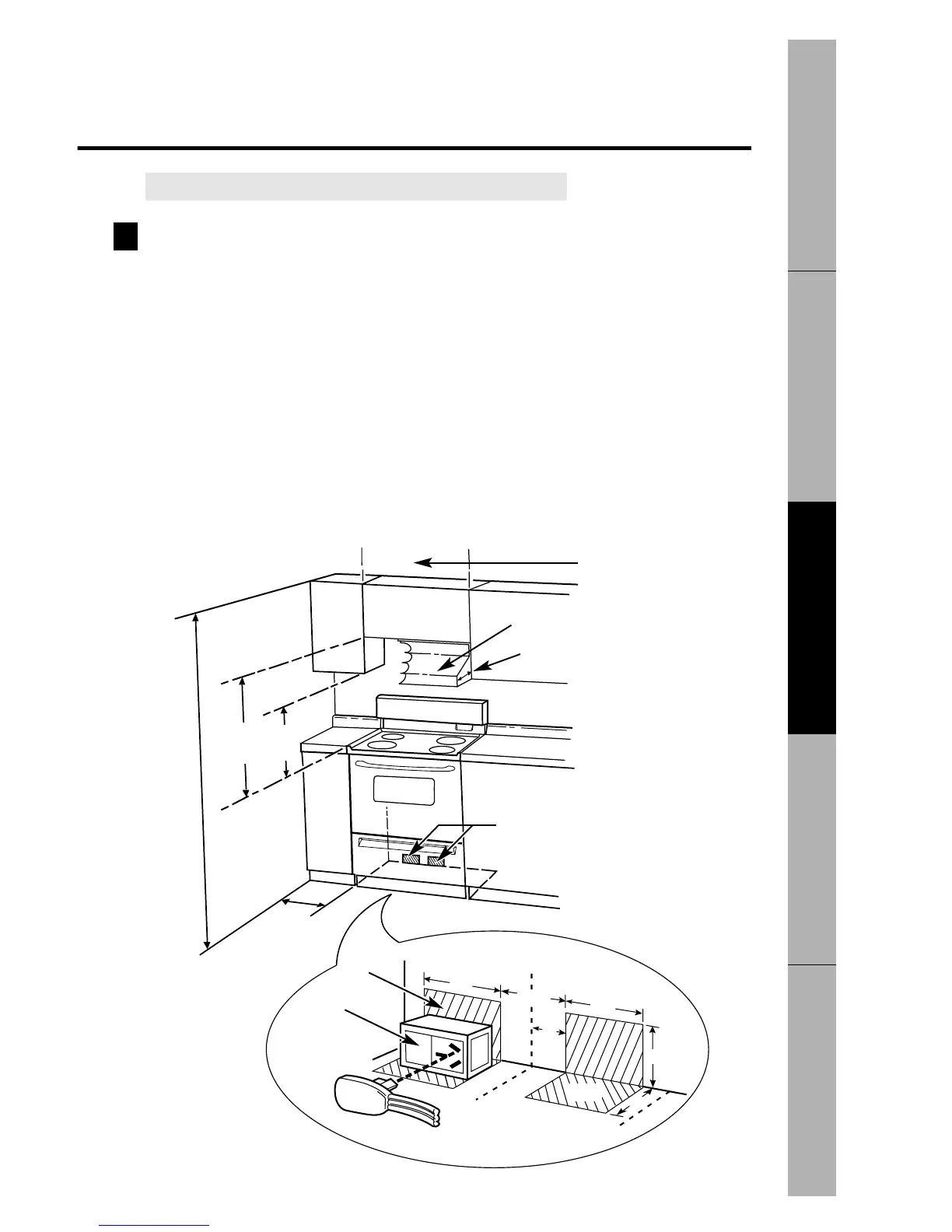

Prepare the Opening
Allow 1
1
⁄2″spacing from the range to adjacent vertical walls above cooktop surface.
Allow 30″ minimum clearance between surface units and bottom of unprotected
wood or metal top cabinet, and 15″ minimum between countertop and adjacent
cabinet bottom.
EXCEPTION: Installation of a listed microwave oven or cooking appliance over the cooktop shall
conform to the installation instructions packed with that appliance.
If cabinet storage is installed, reduce risk by installing a range hood that projects
horizontally a min. of 5″ beyond the bottom of the cabinets. Make sure the wall
covering, countertops and cabinets around the range can withstand heat
generated by the range, oven or cooktop up to 200°F.
1
Read these instructions completely and carefully.
Cord
Wall
Floor
7″
5″
C of range
L
L
Outlet box
Hood
Wall
Not less than the width
of the range
5″ Min.
30″
Min.
15″
Min.
1
1
⁄2″
Min.
Locate the outlet box within either shaded area.
Install the
outlet box
on either
side of the C
2
1
⁄4″
7
1
⁄2″
7
1
⁄2″
3
1
⁄2″
To Next Page
