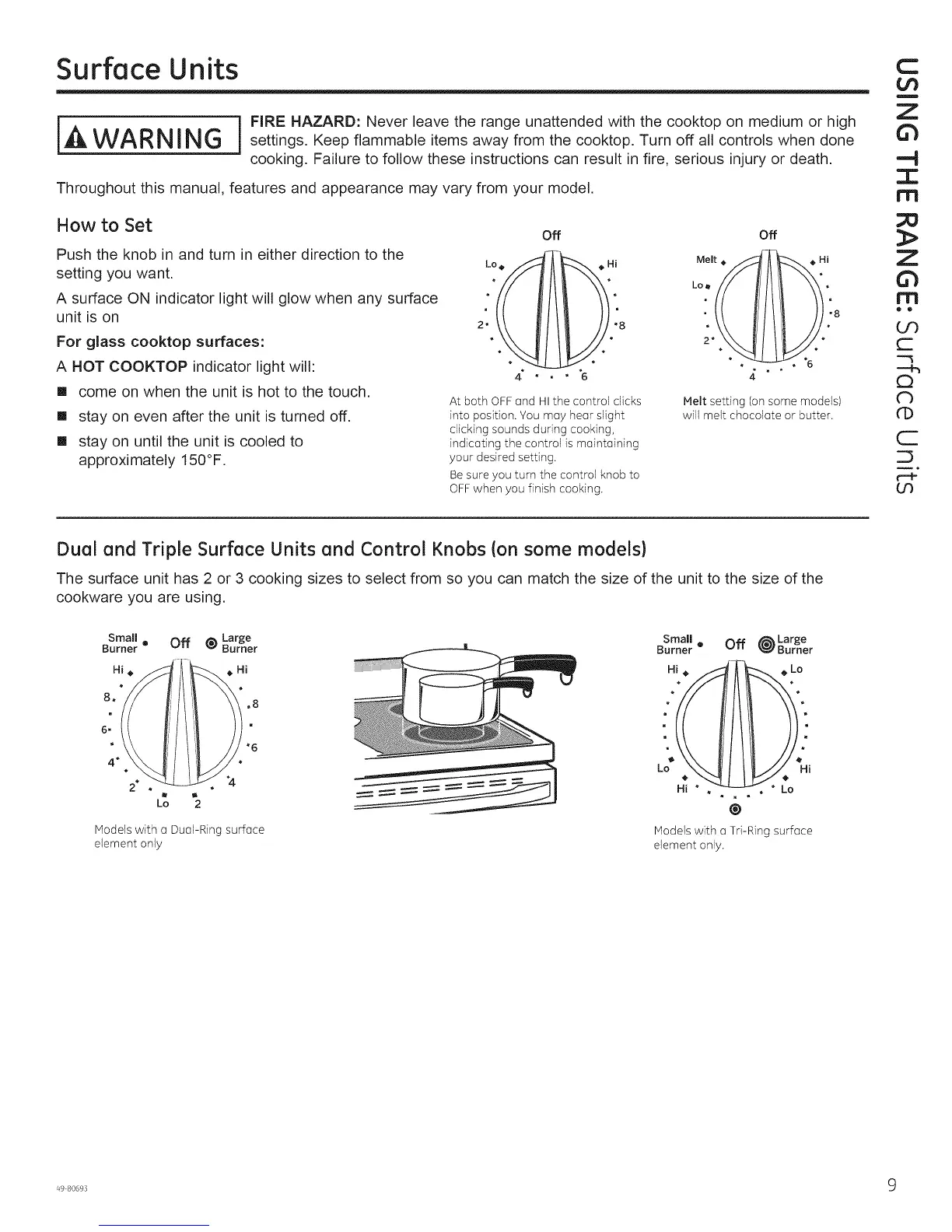

Surface Units
i i FIRE HAZARD: Never leave the range unattended with the cooktop on medium or high
WARNING ] settings. Keep flammable items away from the cooktop. Turn off all controls when done
cooking. Failure to follow these instructions can result in fire, serious injury or death.
Throughout this manual, features and appearance may vary from your model.
How to Set
Push the knob in and turn in either direction to the
setting you want.
A surface ON indicator light will glow when any surface
unit is on
For glass cooktop surfaces:
A HOT COOKTOP indicator light will:
[] come on when the unit is hot to the touch,
[] stay on even after the unit is turned off.
[] stay on until the unit is cooled to
approximately 150°F.
Off
%
At both OFF and HI the control clicks
into position. You may hear slight
clicking sounds during cooking,
indicating the control is maintaining
your desired setting.
Be sure you turn the control knob to
OFFwhen you finish cooking.
off
Melt
Co
2 •
4_ _
Hi
"8
°6
Melt setting Ion some models)
will melt chocolate or butter.
C
!
Z
GI
-4
3=
rn
Z
GI
rn
o •
tO
¢-
--h
Q
n
C
U3
Dual and Triple Surface Units and Control Knobs (on some models)
The surface unit has 2 or 3 cooking sizes to select from so you can match the size of the unit to the size of the
cookware you are using,
Small Large
Burner • Off _ Burner
; i "0
2. ---aa_< .4
ko 2
Models with a Dual-Ring surface
element only
Small _ Large
Burner • Off _Burner
Hi _ _, Lo
Models with a Tri-Ring surface
element only.
49 80693 9
