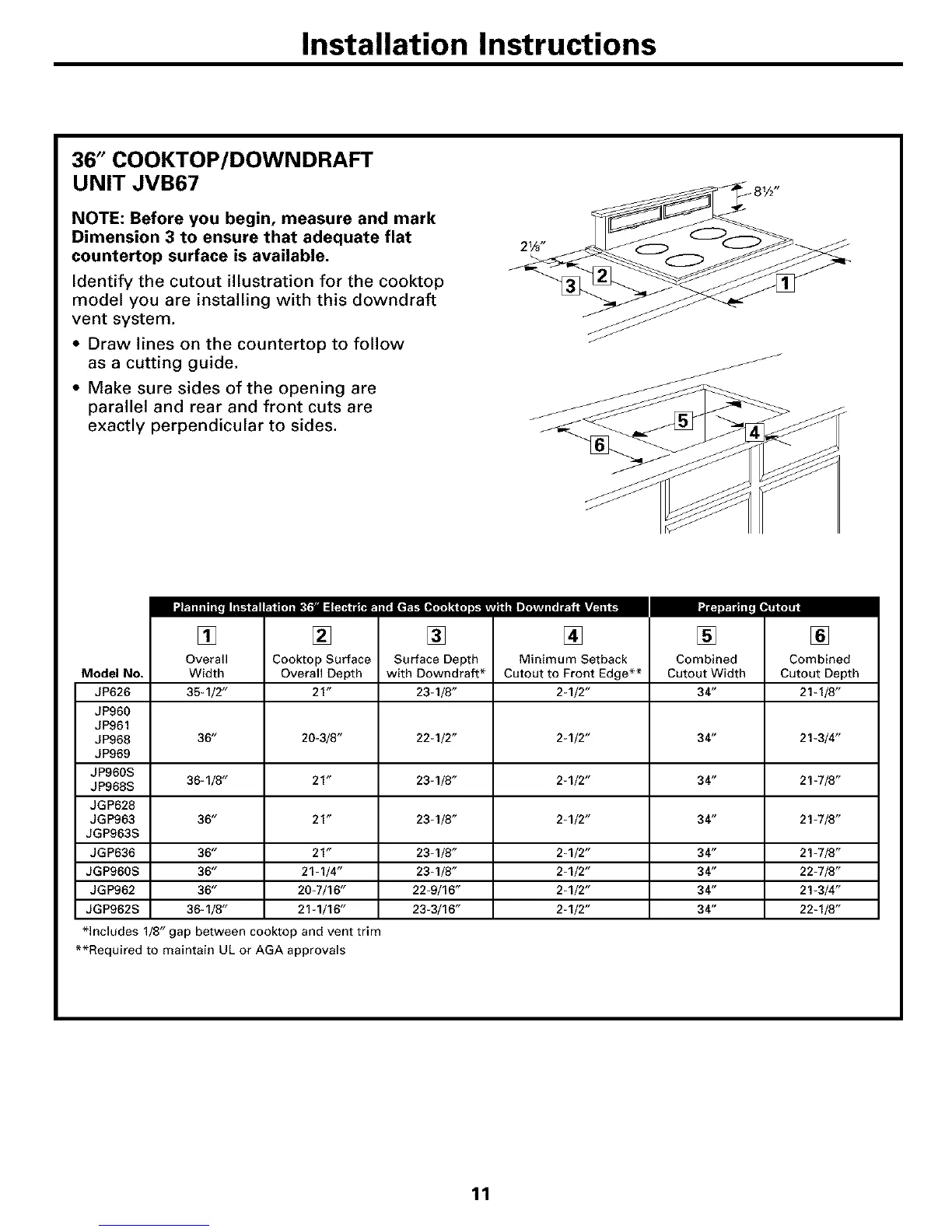

Installation Instructions
36" COOKTOP/DOWNDRAFT
UNIT JVB67
NOTE: Before you begin, measure and mark
Dimension 3 to ensure that adequate flat
countertop surface is available.
Identify the cutout illustration for the cooktop
model you are installing with this downdraft
vent system.
• Draw lines on the countertop to follow
as a cutting guide.
• Make sure sides of the opening are
parallel and rear and front cuts are
exactly perpendicular to sides.
J
|l_J]ll_l,l.l|_H I |l_l_.l LIOiw* r. 1.1_ 011J _,lJ] 0 }.ITJ f E_,r.ll_| LJl_|l,ll
m
[] [] [] [] [] []
Overall Cooktop Surface Surface Depth Minimum Setback Combined Combined
Model No. Width Overall Depth with Downdraft* Cutout to Front Edge** Cutout Width Cutout Depth
JP626 35-1/2" 21" 23-1/8" 2-1/2" 34" 21-1/8"
JP960
JP961
JP968 36" 20-3/8" 22-1/2" 2-1/2" 34" 21-3/4"
JP969
JP960S
JP968S 36-1/8" 21" 23-1/8" 2-1/2" 34" 21-7/8"
JGP628
JGP963 36" 21" 23-1/8" 2-1/2" 34" 21-7/8"
JGP963S
JGP636 36" 21" 23-1/8" 2-1/2" 34" 21-7/8"
JGP960S 36" 21-1/4" 23-1/8" 2-1/2" 34" 22-7/8"
JGP962 36" 20-7/16" 22-9/16" 2-1/2" 34" 21-3/4"
JGP962S 36-1/8" 21-1/16" 23-3/16" 2-1/2" 34" 22-1/8"
*includes 1/8" gap between cooktop and vent trim
**Required to maintain UL or AGA approvals
11
