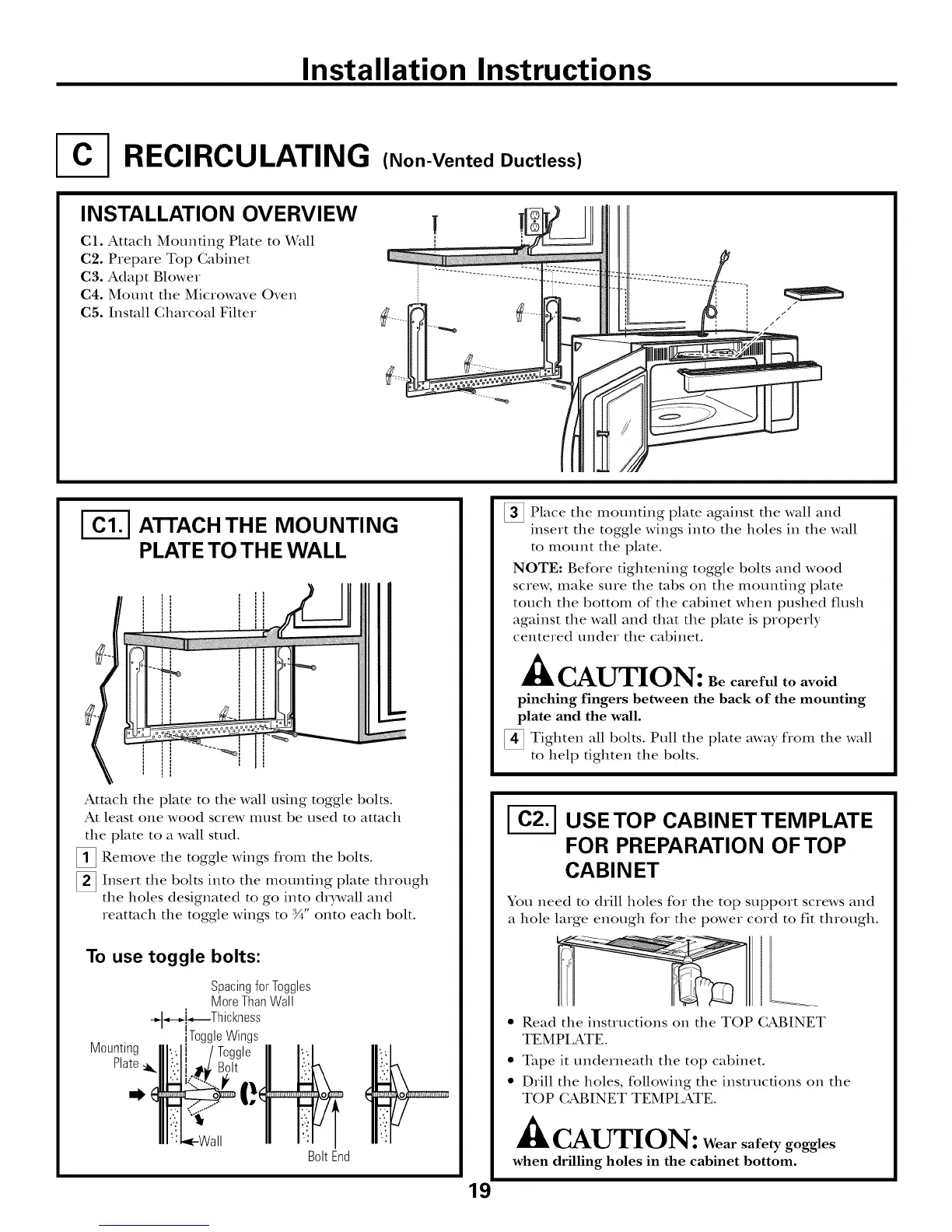

Installation Instructions
RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Adapt Blower
C4. Mount the Microwave Oven
C5. Install Charcoal Filter
I_ A]WACHTHE MOUNTING
PLATE TO THE WALL
\
!!
l
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
[]Remove the toggle wings flom the bolts.
[]Insert the bolts into the mounting plate through
the boles designated to go into drDvall and
reatmch the toggle wings to :_A"onto each bolt.
To use toggle bolts:
Spacingfor Toggles
MoreThanWall
-+-_-i_Thckness
ToggleWings
Mounting
Plate_.
BoltEnd
19
_ Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to inount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the robs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid
pinching fingers between the back of the mounting
plate and the wall.
_ Tighten all bolts. Pull the plate away flom the wall
to help tighten the bolts.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP (;ABINET
TEMPI_ATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTI ON: Wearsafety goggles
when drilling holes in the cabinet bottom.
To Next Page
