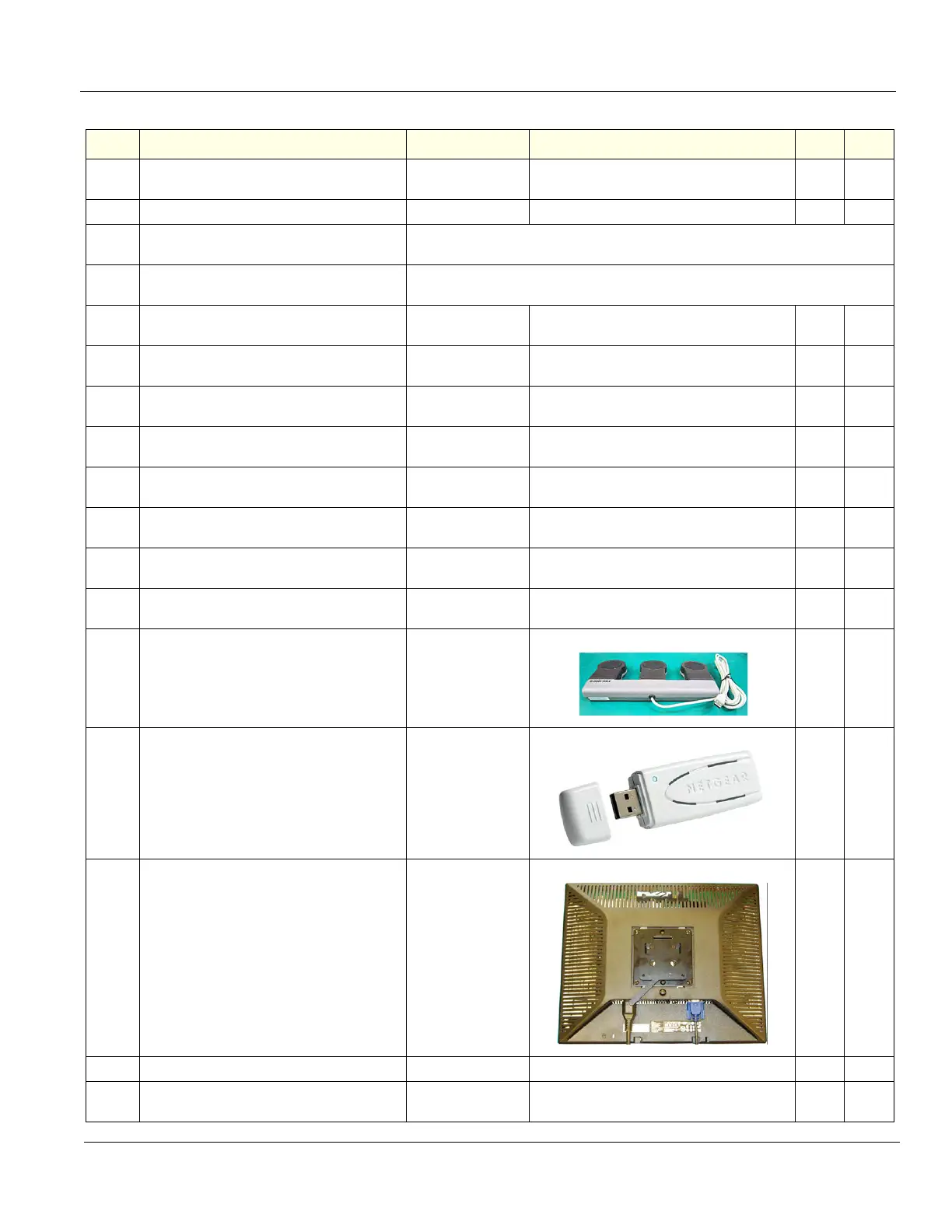

IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 107
16. On Board VNav Stand Pole with mounting hard-
ware
5451260 1Y
17. On Baord VNav Stand arm soare part 5456232 1Y
18. CW Board (GRX)
(R2.x.x)
See: Table 9-21 - Card Rack parts
19.
CW Adapter
(R2.x.x)
See: Table 9-40 - Card Rack Cables
20. Patient I/O (ECG Module)
(R2.x.x)
GA200240 Replaced by GB200010 1 Y
21. Patient I/O (ECG Module)
(R2.x.x)
GB200010
Replaces by GA200240
GB200010 is backward compatible.
1Y
22. ECG Cables AHA Style
(R2.x.x)
164L0025 Americas 1 Y
23. Lead Wires ECG AHA
(R2.x.x)
164L0027 Americas 1 Y
24. ECG Cables, Short IEC
(R2.x.x)
2304616
Europe and Asia
(includes 164L0026 and 164L0028)
1Y
25. ECG Cables, IEC
(R2.x.x)
2304615
Europe and Asia
(includes 164L0026 and lead wire, port “B1“)
1Y
26. ECG Cable IEC, Short
(R2.x.x)
164L0026 Part of 2304616 1 Y
27. Lead Wires IEC, Short
(R2.x.x)
164L0028 Part of 2304616 1 Y
28.
USB Footswitch
R2.x.x and later
H46732LF 1Y
29.
WLAN Dongle
R2.x.x and R3.x.x
5340249 1Y
30.
External Display (LCD)
(R2.x.x)
KTZ220525 1Y
31. BEP6.x Wireless Parts Spare Part 5433408-110 1Y
32. DVI Cable for External Display
(R2.x.x)
KTZ220527 1Y
Table 9-47 Options 2 of 3 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
