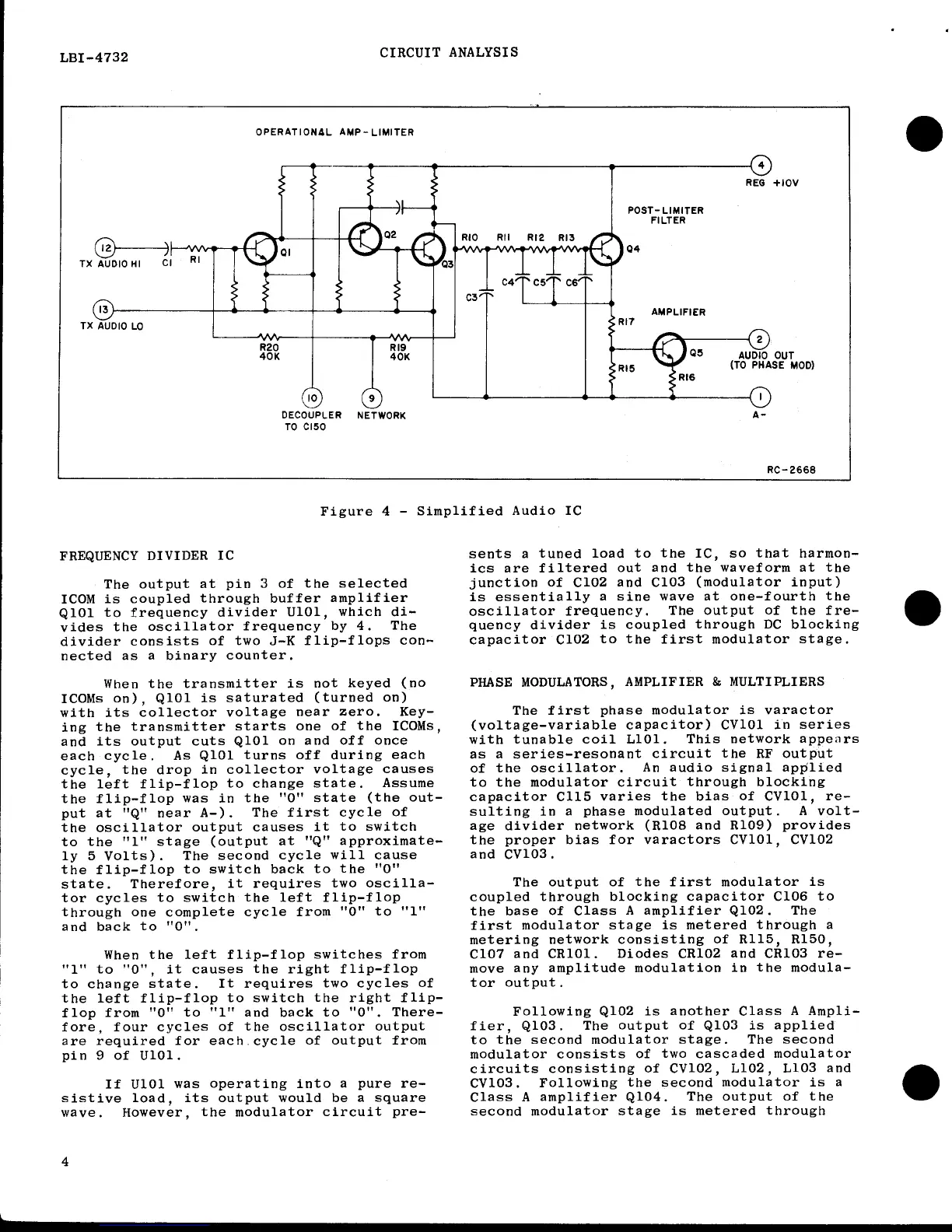

LBI-4732
CIRCUIT
ANALYSIS
OPERATIONAL
AMP-
LIMITER
--~~----.-----~~------------------+-------------~4
13r-----------+-~--~----+-_.
______
._
__
_.
TX
AUDIO
LO
R20
40K
10
9
Rl9
40K
DECOUPLER NETWORK
TO
Cl50
POST-LIMITER
FILTER
04
AMPLIFIER
Rl7
Rl5
REG
+IOV
A-
RC-2668
Figure
4 -
Simplified
Audio
IC
FREQUENCY
DIVIDER
IC
The
output
at
pin
3
of
the
selected
ICOM
is
coupled
through
buffer
amplifier
QlOl
to
frequency
divider
UlOl,
which
di-
vides
the
oscillator
frequency
by
4.
The
divider
consists
of
two
J-K
flip-flops
con-
nected
as
a
binary
counter.
When
the
transmitter
is
not
keyed
(no
ICOMs
on),
QlOl
is
saturated
(turned
on)
with
its
collector
voltage
near
zero.
Key-
ing
the
transmitter
starts
one
of
the
ICOMs,
and
its
output
cuts
QlOl
on
and
off
once
each
cycle.
As
QlOl
turns
off
during
each
cycle,
the
drop
in
collector
voltage
causes
the
left
flip-flop
to
change
state.
Assume
the
flip-flop
was
in
the
"O"
state
(the
out-
put
at
"Q"
near
A-).
The
first
cycle
of
the
oscillator
output
causes
it
to
switch
to
the
"1"
stage
(output
at
"Q"
approximate-
ly
5
Volts).
The
second
cycle
will
cause
the
flip-flop
to
switch
back
to
the
"O"
state.
Therefore,
it
requires
two
oscilla-
tor
cycles
to
switch
the
left
flip-flop
through
one
complete
cycle
from
"O"
to
"1"
and
back
to
"0".
When
the
left
flip-flop
switches
from
"1"
to
"0",
it
causes
the
right
flip-flop
to
change
state.
It
requires
two
cycles
of
the
left
flip-flop
to
switch
the
right
flip-
flop
from
"O"
to
"1"
and
back
to
"0".
There-
fore,
four
cycles
of
the
oscillator
output
are
required
for
each
cycle
of
output
from
pin
9
of
UlOl.
If
UlOl
was
operating
into
a
pure
re-
sistive
load,
its
output
would
be
a
square
wave.
However,
the
modulator
circuit
pre-
4
sents
a
tuned
load
to
the
IC,
so
that
harmon-
ics
are
filtered
out
and
the
waveform
at
the
junction
of
Cl02
and
Cl03
(modulator
input)
is
essentially
a
sine
wave
at
one-fourth
the
oscillator
frequency.
The
output
of
the
fre-
quency
divider
is
coupled
through
DC
blocking
capacitor
Cl02
to
the
first
modulator
stage.
PHASE
MODULATORS,
AMPLIFIER & MULTIPLIERS
The
first
phase
modulator
is
varactor
(voltage-variable
capacitor)
CVlOl
in
series
with
tunable
coil
LlOl.
This
network
appeHrs
as
a
series-resonant
circuit
the
RF
output
of
the
oscillator.
An
audio
signal
applied
to
the
modulator
circuit
through
blocking
capacitor
Cll5
varies
the
bias
of
CVlOl,
re-
sulting
in
a
phase
modulated
output.
A
volt-
age
divider
network
(Rl08
and
Rl09)
provides
the
proper
bias
for
varactors
CVlOl,
CV102
and
CV103.
The
output
of
the
first
modulator
is
coupled
through
blocking
capacitor
Cl06
to
the
base
of
Class
A
amplifier
Ql02.
The
first
modulator
stage
is
metered
through
a
metering
network
consisting
of
Rll5,
Rl50,
Cl07
and
CRlOl.
Diodes
CR102
and
CR103
re-
move
any
amplitude
modulation
in
the
modula-
tor
output.
Following
Ql02
is
another
Class
A
Ampli-
fier,
Ql03.
The
output
of
Ql03
is
applied
to
the
second
modulator
stage.
The
second
modulator
consists
of
two
cascaded
modulator
circuits
consisting
of
CV102,
Ll02,
Ll03
and
CV103.
Following
the
second
modulator
is
a
Class
A
amplifier
Ql04.
The
output
of
the
second
modulator
stage
is
metered
through
