Installation Instructions
MOUNT THE MICROWAVE OVEN
(cont.)
C5
5
Cabinet Front
4

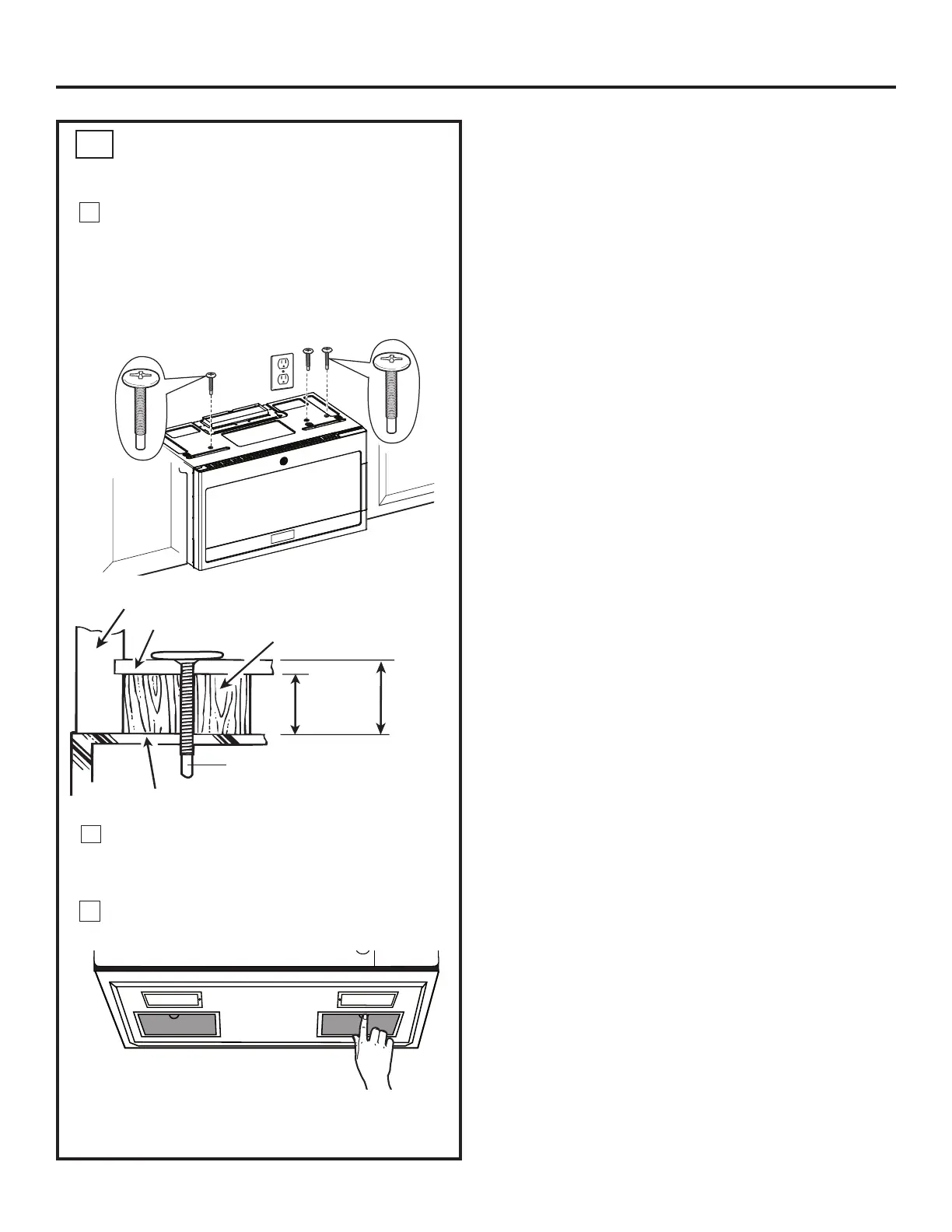

Tighten the three screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall
and the top cabinet.)
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the microwave
oven by turning the screw at least two full
turns after the threads have engaged. (It will be
completely tightened later.) Insert 2 self-aligning
screws (
1
»4Ǝ[2
1
»4
Ǝ
) through outer top cabinet
holes. Turn two full turns on each screw.
Install grease filters. See the Owner’s Manual
packed with the microwave oven.
Cabinet Bottom Shelf
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
This
distance can
NOT exceed
2” to ensure
proper
installation
3
To Next Page
