This microwave oven is shipped assembled for top
exhaust. You will need the exhaust adaptor for
installation in the rear wall opening. To remove the
exhaust adaptor from the microwave oven:
Remove tape securing damper.
2
OUTSIDE BACK EXHAUST (Horizontal Duct)
Lift off the
blower plate
and attached
adaptor from
the microwave.

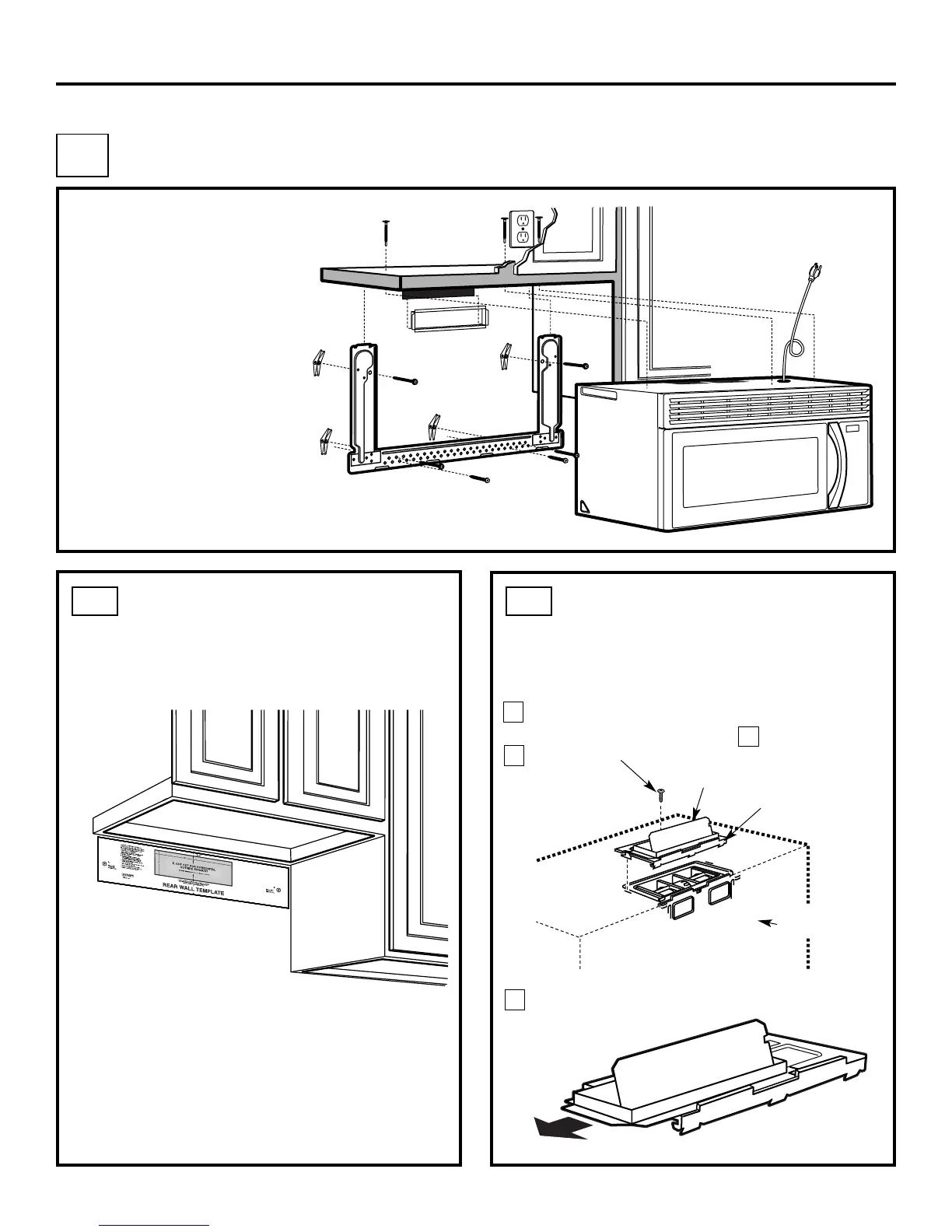

INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Remove Exhaust Adaptor
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven
Slide exhaust adaptor to one side and remove it.
Back of
Microwave
Remove and
save screw
that holds
blower plate
to microwave.
Installation Instructions
B
15
3
4
Damper
1
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
B1.
You need to cut an opening in the rear wall for
outside exhaust.
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall
plate.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
REMOVE EXHAUST ADAPTOR
B2.
