EN: Installation Sheet
Introduction
The VE1012 series consists of models VE1012 and
VE1012AM. These detectors use PIR or PIR-AM sensors.
They have a patented mirror, pyro, and signal processing
technology.
Installation guidelines
The technology used in these detectors resists false alarm
hazards. However, avoid potential causes of instability such as
(see Figure 1):
• Direct sunlight on the detector
• Strong draughts onto the detector
• Heat sources within the detector field of view
• Large animals within the detector field of view
• Obscuring the detector field of view with large objects,
such as furniture
• Objects within 50 cm (20 in.) of the anti-masking (AM)
detector
• Installing two detectors facing each other and less than
50 cm (20 in.) apart
Installing the detector

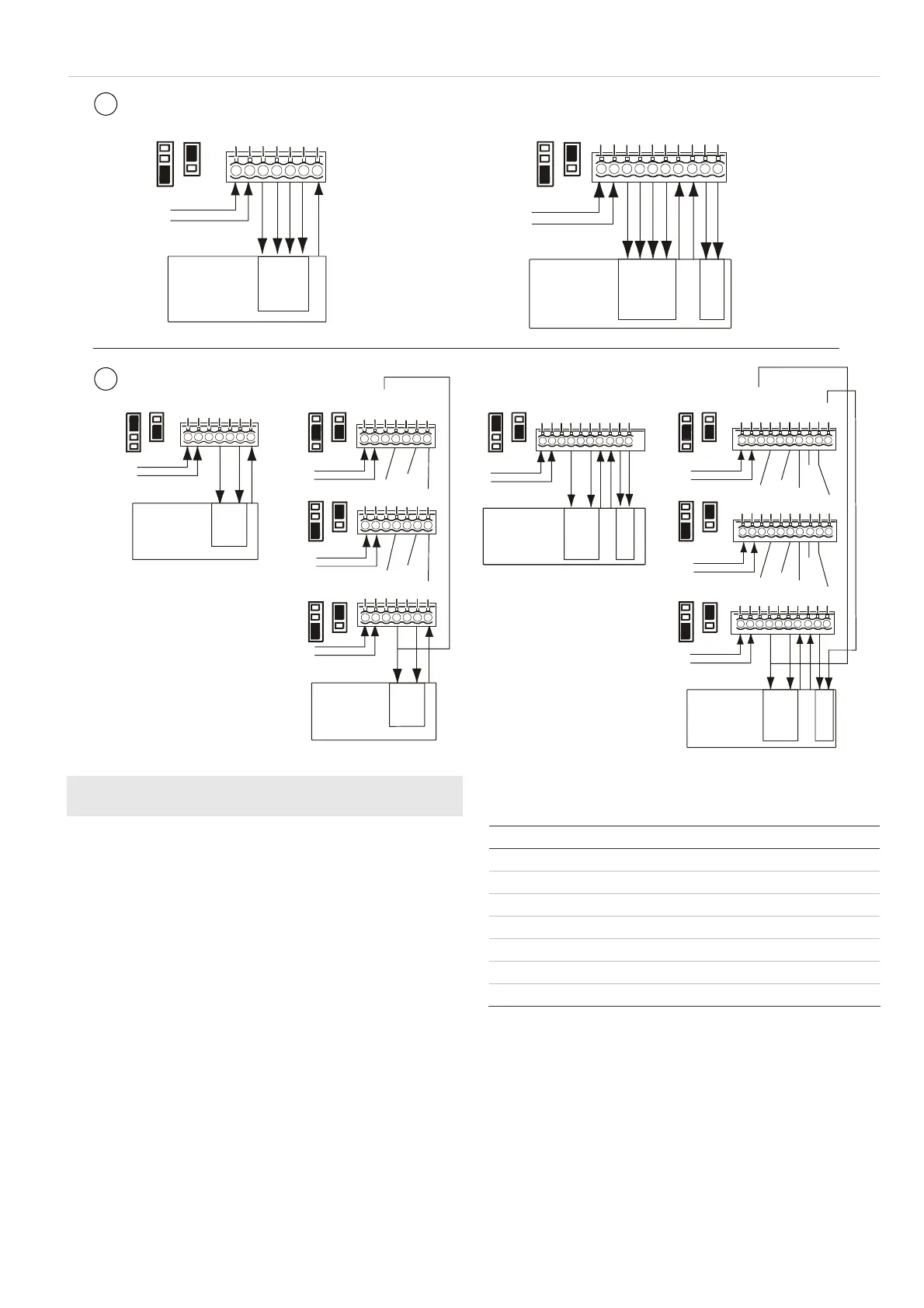

Figure 7 legend
Item Description
1. Standard connection (factory default)
2. Dual loop connection
CP Control panel
WT Walk test
AM Antimasking
D/N Day/night
Rtest Remote test
To install the detector:
1. Lift off the custom insert and remove the screw
(see Figure 2, step 1).
2. Using a screwdriver, carefully prise open the detector (see
Figure 2, steps 2 and 3).
3. Fix the base to the wall between 1.8 m and 3.0 m (5.9 and
9.8 ft.) from the floor. For flat mounting use a minimum of
two screws (DIN 7998) in positions A. For corner-mounting
use screws in positions B or C (Figure 4). To install a pry-
off tamper, use position A or B.
P/N 146414999-2 • REV 2.0 • ISS 20JUL10 3 / 20
