– 13 –
Water Pressure Switch
The water pressure is sensed through pressure from
the take off at the lower portion of the tub. Terminal
connectors are marked (NC) normally closed and
(NO) normally open, and (C) common terminal on the
switch.
Tech Tip Before disconnecting hose from water
level Switch, be sure water level in machine is below
bottom of wash basket. After reconnecting hose,
put machine in spin for at least one minute before
checking operation of switch.
1. If water level is below basket, remove control
panel, and pressure switch hose.
2. Disconnect terminal connectors note (NC) Violet,
(NO) Brown, (CO) Yellow- Black.
3. Check terminals for continuity.
4. If defective replace by inserting a small screw-
driver under locking tab, rotating the switch
counterclockwise, and lifting switch out of switch
bracket to remove.
5. Reverse steps to reassemble, put machine in spin
for at least one minute before checking operation
of switch.
ECONOMY WATER SAVER SETTING
The pressure switch is set in the factory for the
medium water level and usage.
To Change setting from medium water level to high
or low:
1. Make sure washer is unplugged from electrical
outlet.
2. Remove 4 screws from top of control panel, and
lay control panel front on cover.

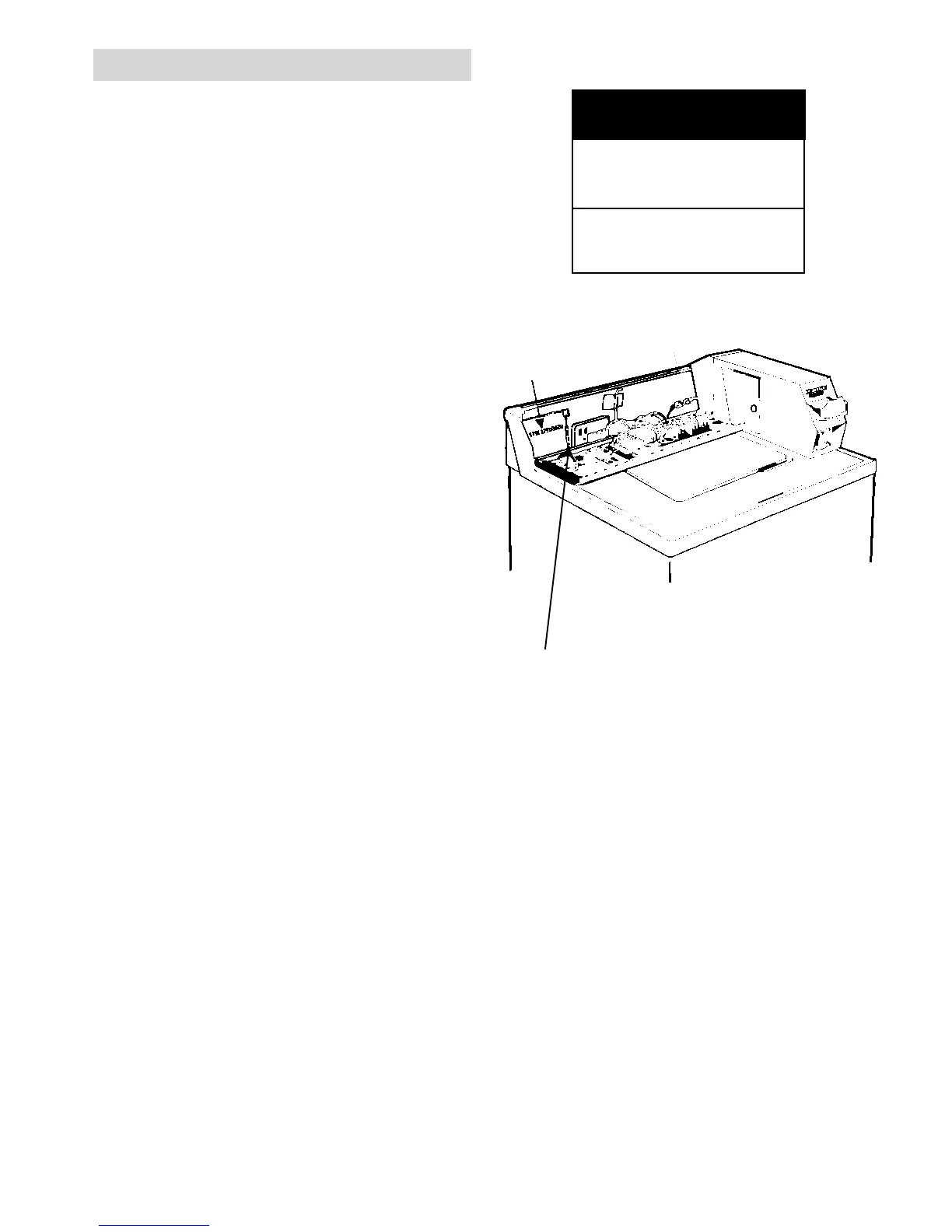

3. Locate pressure switch in backsplash, and per
illustration move white plastic cam on pres-
sure switch to the clockwise position with your
finger, until it clicks into position, to select the
economy water saver (low water level). To
select high water level, move the white plastic
cam counter-clockwise until it clicks into
position. Pressure switch does not have to be
removed to change the setting.
WATER LEVELS
L – 21 Gallons
M – 23 Gallons
H – 25 Gallons
Washers are shipped from the
factory pre-set to 23 gallons,
the middle setting.
MINI-
MANUAL
PRESSURE
SWITCH
