39

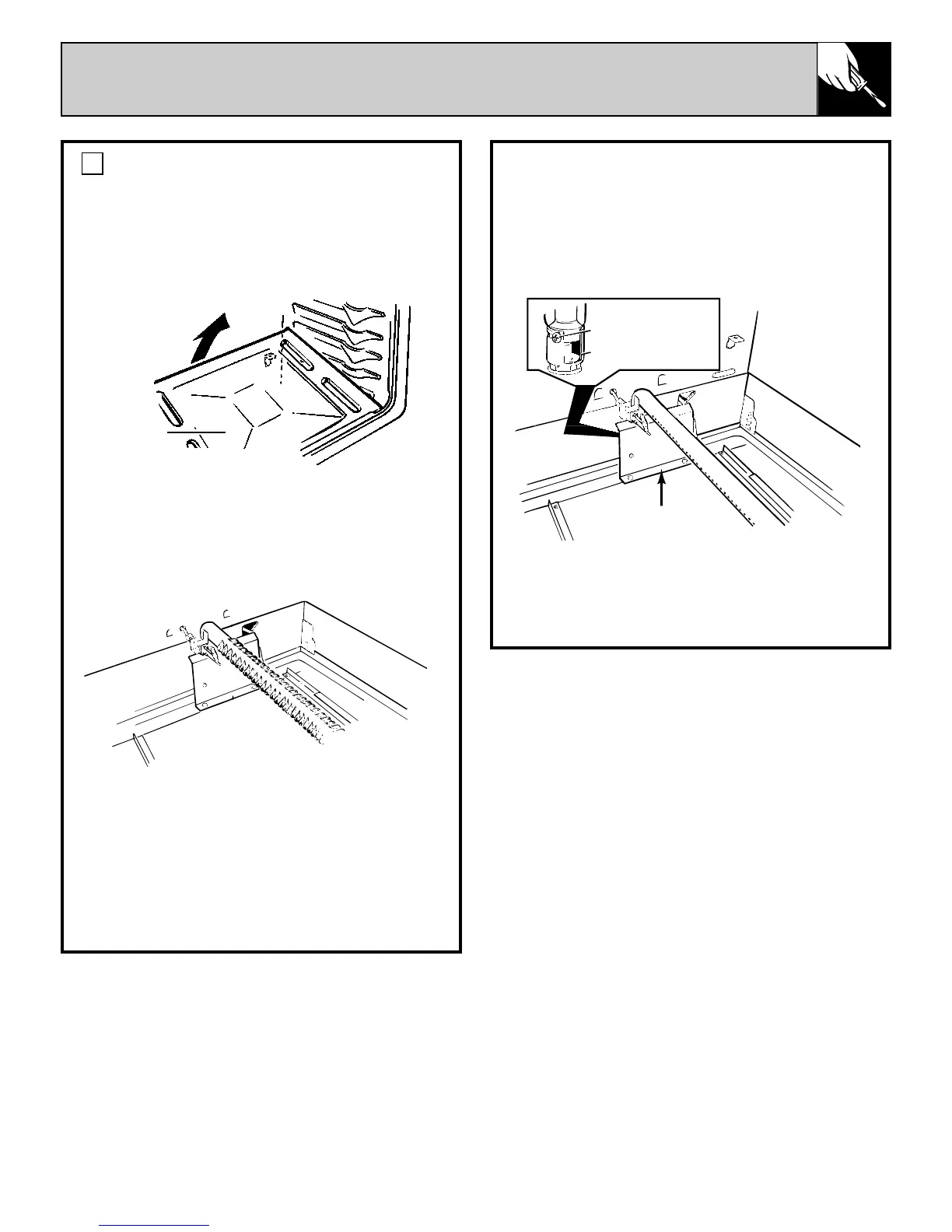

The shutter for the oven burner is near the back
wall of the oven and behind the broiler drawer.
To remove the broiler drawer:
1. Pull the drawer out until it stops, then push it
back in about one inch.
2. Grasp handle, lift and pull broiler drawer out.
Remove the metal shield at the rear of the cavity.
The air adjustment shutter is behind this shield.
To adjust the flow of air to the burner, loosen the
Phillips-head screw and rotate the shutter to
allow more or less air into the burner tube.
ADJUST BROIL BURNER AIR ADJUSTMENT
SHUTTER ON MODELS WITH A BROILER
DRAWER, IF NECESSARY
(See Step 8 if your
range is equipped with a storage drawer.)
To determine if the bottom burner flames are
burning properly, first remove the oven bottom.
To remove the oven bottom:
1. Remove knurled screws holding down rear of
oven bottom.
2. Grasp oven bottom at finger slots on each side.
3. Lift rear of oven bottom enough to clear the
lip of range frame, then pull out.
With the oven bottom removed, properly
adjusted flames should have approximately 1″
blue cones and, if range is supplied with natural
gas, should burn with no yellow tipping.
(With most LP gas, small yellow tips at the
end of outer cones are normal.) Flames should
not lift off burner ports. If lifting is observed,
gradually reduce air shutter opening until
flames are stabilized.
9
Oven bottom
Loosen
Air adjustment shutter
Metal shield
