GE Zoneline User Manual

14
Air Flow Table
ALL I
2
R (All Electric Heat) (Heat-pump models only)
FREEZ S (Freeze Sentinel)
CONST FAN (Constant ON Fan)
TL1 (H) (Temp. Limit 1–Heat)
TL2 (H) (Temp. Limit 2–Heat)
TL3 (H) (Temp. Limit 3–Heat)
TL3 (C) (Temp. Limit 3–Cool)
TL2 (C) (Temp. Limit 2–Cool)
TL1 (C) (Temp. Limit 1–Cool)
No Function (Reserved for future use)
DUCT (Blower Fan)
OCCUPIED (Occupancy Sensor)

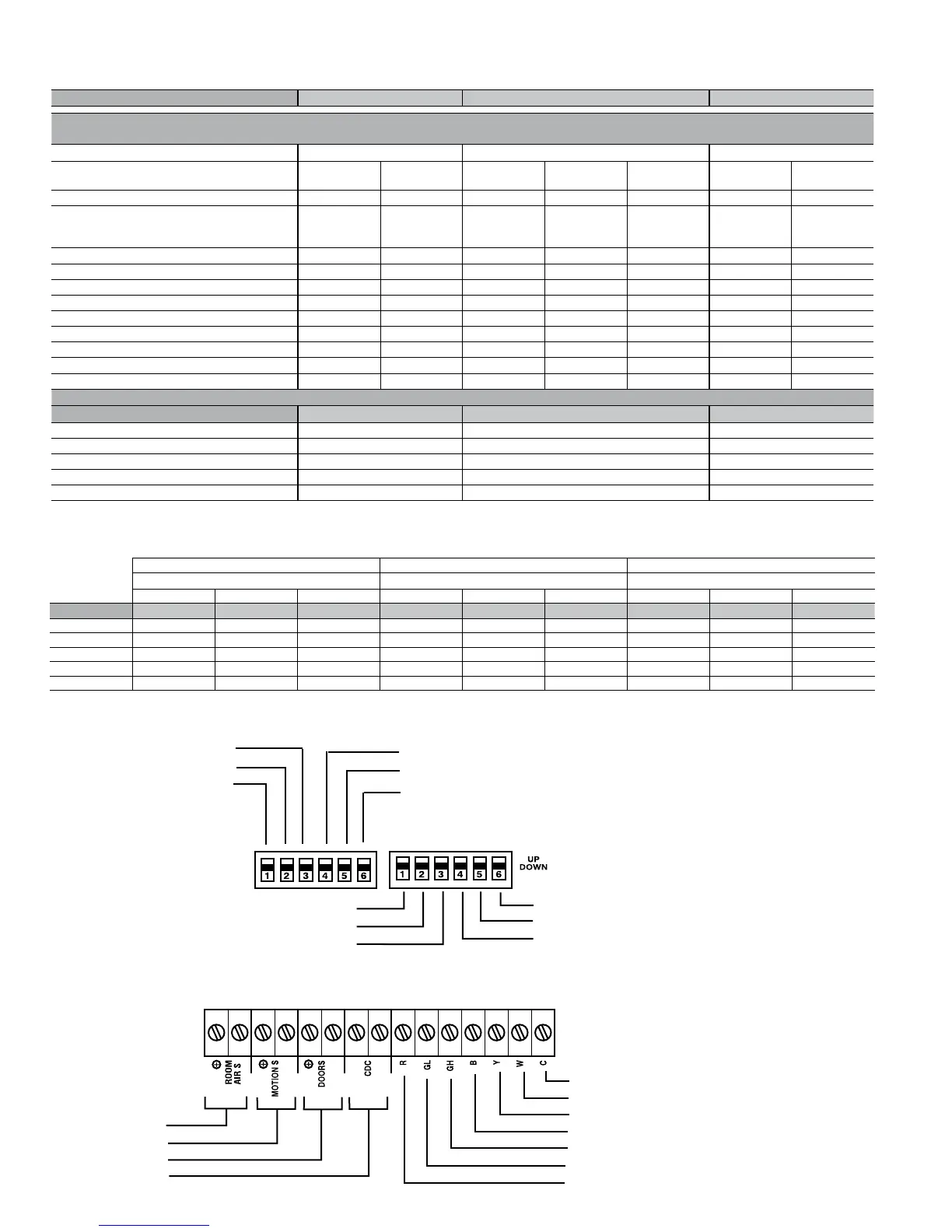

Dip Switch Locations
Terminal Block Location
AZ85(H/E)09 AZ85(H/E)12 AZ85(H/E)18
Duct select switch Duct select switch Duct select switch
Up Down Up Down Up Down
ESP High CFM Medium CFM Low CFM High CFM Medium CFM Low CFM High CFM Medium CFM Low CFM
0.0 520 460 360 590 500 380 600 520 400
0.1 500 415 290 570 465 325 585 485 340
0.2 480 370 220 550 430 270 570 450 280
0.3 440 265 — 480 345 — 510 375 —
0.4 400 160 — 410 260 — 450 300 —
ZVAC Hydronic Kit Specifications
RAVHW1 RAVHW2 RAVHW3
Performance specifications for hydronic heating kits applied to AZ85W-series ZVAC models: The ZVAC hydronic heat kits are matched up (applied) to the
AZ75W-series models as shown below:
RAVHW1 (1-Row Kit) RAVHW2 (2-Row Kit) RAVHW3 (3-Row Kit)
ZVAC cool-only PTAC model—matched to hydronic
kit as shown
AZ85W09DAC AZ85W12DAC AZ85W09DAC AZ85W12DAC AZ85W18DAC AZ85W12DAC AZ85W18DAC
Voltage (60 Hertz) 230/208 230/208 230/208 230/208 230/208 230/208 230/208
Heating capacity designed to meet standard ARI
rating conditions of 200°F water entering temp/
180°F water exiting temp/70°F entering air temp 17,300/16,200 200,200/19,100 25,900/23,500 29,400/27,600 34,700/32,900 33,200/31,100 39,600/37,300
External static pressure 0.25" 0.25" 0.25" 0.25" 0.25" 0.25" (Max.) 0.25" (Max.)
Air flow (SCFM) 297/256 385/344 297/256 364/328 470/430 362/330 467/426
Water flow rate (GPM) 1.8/1.7 2.1/2.0 2.7/2.4 3.0/2.8 3.5/3.3 3.4/3.2 4.1/3.8
Water press drop* (ft. of water) 2.7/2.4 3.6/3/3 3.7/3.1 5.0/4.3 6.7/6.0 6.5/5.7 9. 2/ 7.9
Face velocity (ft./min.) 238/205 308/275 238/205 291/262 376/262 290/264 374/341
Heat exchanger fin height (in.) 12 12 12 12 12 12 12
Heat exchanger finned length (in.) 15 15 15 15 15 15 15
Heat exchanger – fin per inch 11 11 11 11 11 10 10
Heat exchanger – fin material Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Weight/Dimensions for hydronic kits:
Hydronic heat kit model # RAVHW1 RAVHW2 RAVHW3
Hydronic heat kit height, inches 13-5/8 13-5/8 13-5/8
Hydronic heat kit width, inches 19 19 19
Hydronic heat kit depth, inches 22 22 22
Shipping weight, pounds 32 35 38
Net weight, pounds 27 30 33
Room Air Sensor
Motion Sensor
Door Sensor
Central Desk Control
Common–Ground
White–Heater
Yellow–Compressor
Black–Reversing Valve
Green–High Speed Fan
Green–Low Speed Fan
Red–24V AC only
