ADL500 • Quick installation guide - Specifications and connection 17
4.10 Weights and dimensions

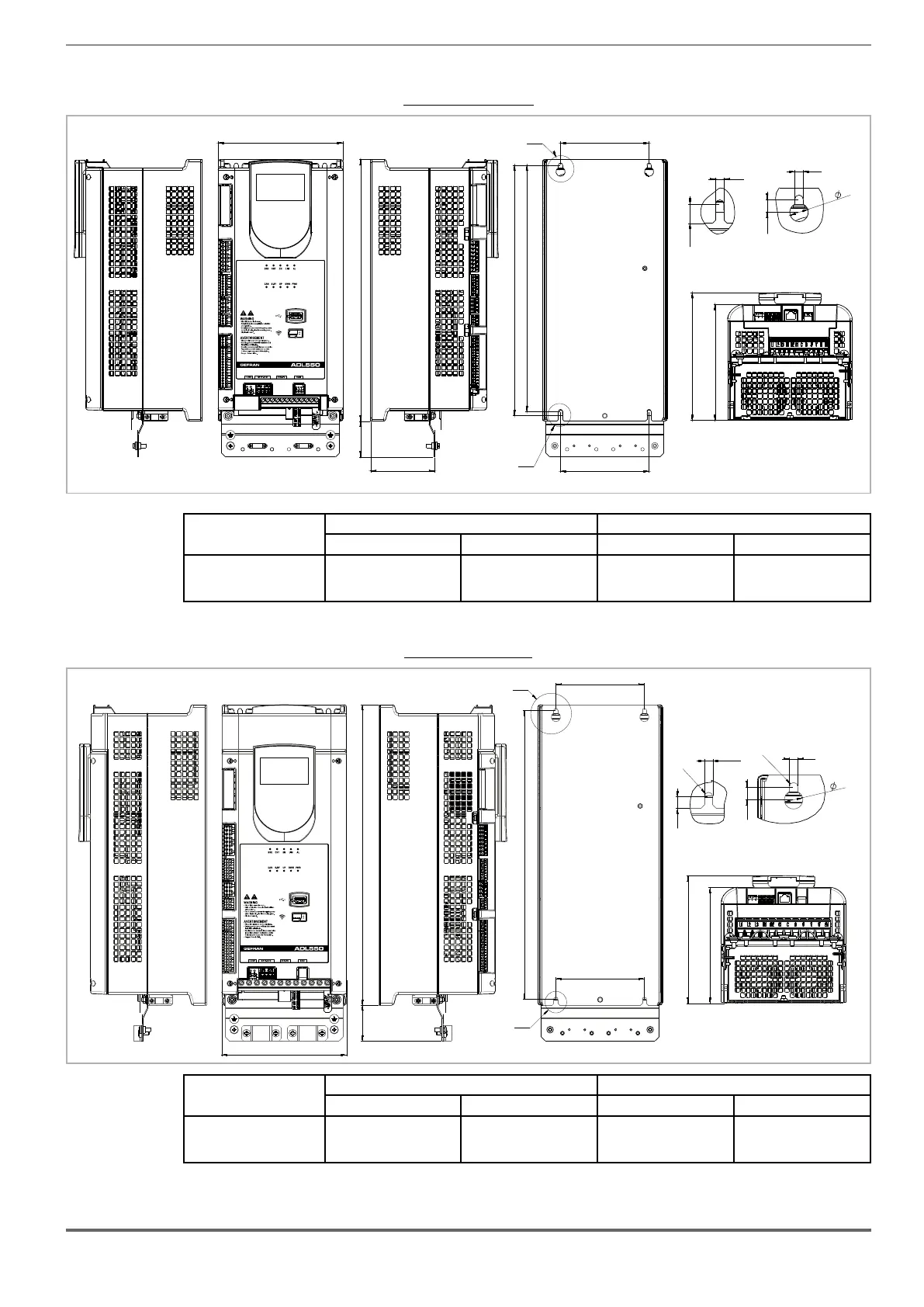

Figure 4.9.1: Size 1 dimensions
34046.5
162
115
320
115
83
325
A
B
5.5
12.5
5.5
8.5
12
(1:1)A
(1:1)B
166
WITH KEYPAD
151
Sizes
Dimensions: Width x Height x Depth Weight
(mm) (inches) (kg) (lbs)
ADL510-1...
ADL530-1...
ADL550-1...
162 x 340 x 151 6.38 x 13.38 x 5.9 5.5 12.1
Figure 4.9.2:Size 2 dimensions
162
390
46.5
115
375
115
A
B
5.5
7.5
5.5
8.5
12
R2.75
R2.75
(1:1)A
(1:1)B
151
166
WITH KEYPAD
Sizes
Dimensions: Width x Height x Depth Weight
(mm) (inches) (kg) (lbs)
ADL510-2...
ADL530-2...
ADL550-2...
162 x 390 x 151 6.38 x 15.35 x 5.94 7.0 15.4
