EN GEMAS PURITRON INSTRUCTION MANUAL V1.8

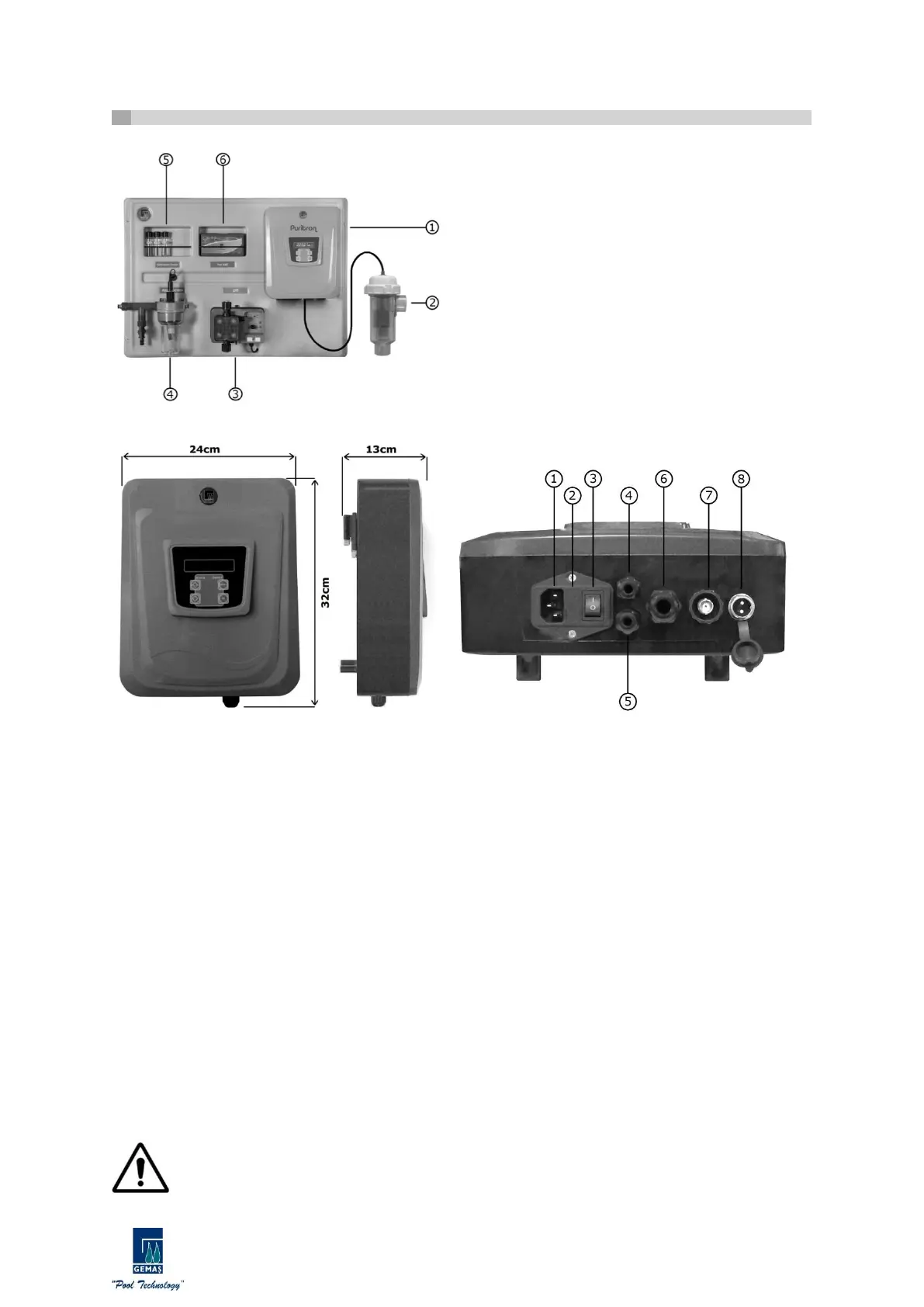

1. Control unit
2. Electrode Cell
3. pH Dosing Pump
4. Flow Cell and pH Sensor
5. Calibration Fluids
6. Test Kit
2.1. Control Unit Installation
1.Power Cord Input Socket
2.Glass Fuse Slot
3.Device On / Off (On / Off) Switch
4.pH Reducer / Booster Dosing Pump Cable Outlet Gland
5.pH Reducer / Booster Fluid Tank Level Sensor Inlet Fitting
6.Electrode Cable Outlet Gland
7.pH BNC Socket
8.Pool Cover Closing Control Connection Socket (Dry Contact Switch)
The control unit is mounted on the panel. There are auxiliary elements on the panel that vary depending on
the model of the device. On the board; control unit, flow cell, pH sensor, pH booster/reducer fluid dosing pump,
sensor calibration fluids, and test kit.
• A place that will provide easy access and reading must be determined for mounting the control panel.
• The control panel must be in a place with airflow, protected from rain, and without any water leakage
hazard.
• If there are acid tanks in the area where the control panel is located, there must be airflow in the
environment. Otherwise, electronic components may corrode with the effect of acid.
• The control panel must be thought to be at most 1.5m away from the electrode cell.
• Mark the hole locations on the wall that you will mount for mounting.
• Drill holes in the marked places, fix the control board with the help of dowels and screws.
• Connect the ground wire (yellow and green) of the 220V AC power unit cable to the grounding line of the
installation. Connect the phase (brown) and neutral (blue) wires to the outputs of the pump contactor.
Salt - Water Chlorinator must be used parallel to the pump and while the water is
circulating in the cell. The device must not be operated without water flow in the cell.
