63
Front Panel Assy 9312172085
65
Flow Control Panel-Z 9306058043
69
Louver-A 9306055028
74
Filter 9305444014
108
Base 9309755062
109
Casing 9306052027
122
Shaft Holder-B 9303066010
127
Drain Hose Assy 9305550029
146
Evaporator Assy 9373044017
151
Control Box 9330007017
158
Connecting Pipe Assy 9306416010
164
Fan Motor Assy-IN 9601844013
169
Cross-Flow Fan Assy 9307836015
184
Thermistor Spring 313728262708
196
Clamp SKB-150 313035356905
233
Power Transformer 9701803026
236
Controller PCB Assy
(EZ-00205WSE-C)
9704865045
240 Remote Control Unit 9312058037
281 BRACKET(PIPE) 9330011014
283 Bushing-A 9303529010
323 Louver-B 9306056025
401 Wall Hook Bracket 9304358008
440 Flow Control Panel-U 9306057046
522-1 Gear-A 9306062002
523 Gear Bracket 9306407001
652-1 Thermistor Holder Pipe 313714262805
668 Screw w/Washer 9372808023
759-1 Intake Grille 9330002012
764 Drain Cap Assy 9304150008
767-1 Bottom Cover 9330004016
777 CLAMPER(GRILL) 9306755010
815 Terminal 9900040055
850 Window (Receiver) 9330003019
872 Indicator Case 9330009011
873 Lamp Cover 9330014015
874 Control Box Cover 9330008014
875 PCB Assy (Power+Indicator) 9704871053
876 Step Motor 9900139018
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.

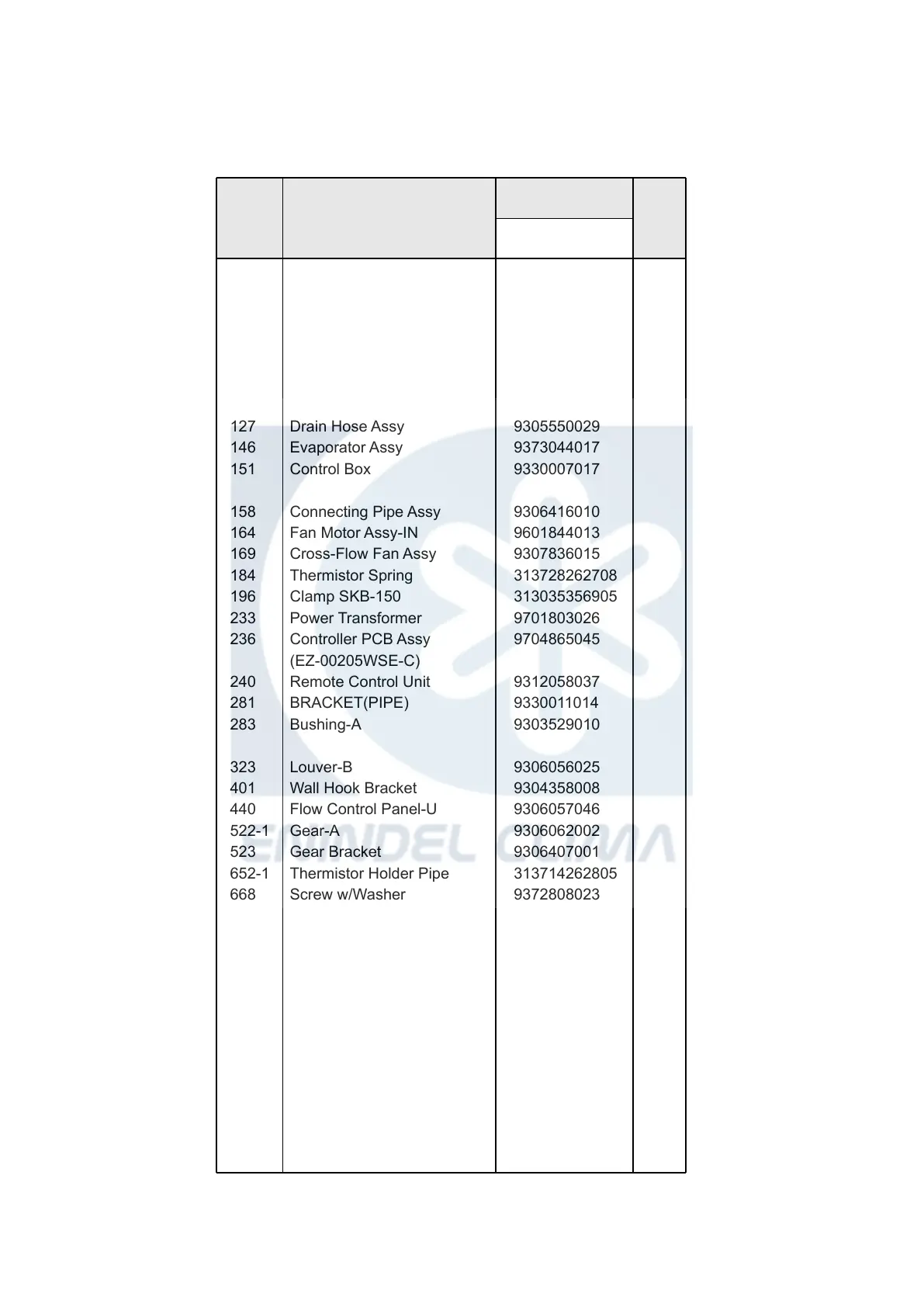

INDOOR UNIT
Ref.
No.
Description
Ord.
Q'ty
Part No.
ASH9FMBD
PARTS LIST
152006.03.01
To Next Page
