Gigabyte B365M GAMING HD User Manual

- 4 -

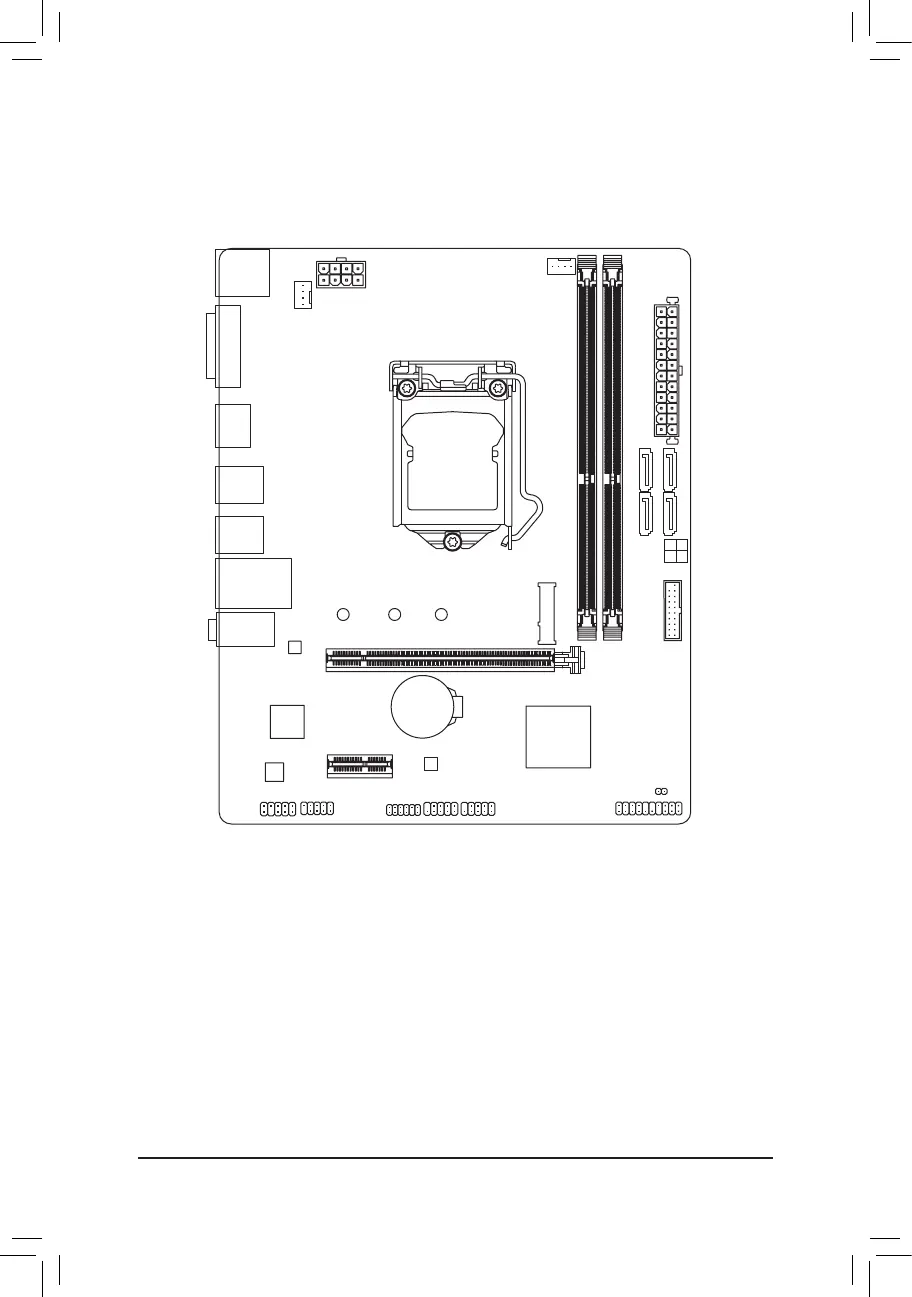

B365M GAMING HD Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 B365M GAMING HD Motherboard 5 Two SATA cables
5 Motherboard driver disk 5 I/O Shield
5 User's Manual
KB_MS
CPU_FAN
SYS_FAN
LGA1151
ATX
B365M GAMING HD
F_AUDIO
AUDIO
BAT
ATX_12V_2X4
Intel
®
B365
R_USB30_1
CODEC
CLR_CMOS
M_BIOS
VGA
USB_LAN
PCIEX16
PCIEX1
iTE
®
Super I/O
Realtek
®
GbE LAN
F_USB1
F_USB2
F_PANEL
COM
F_USB30
R_USB30_2
TPM
DDR4_1
DDR4_2
M2M
6080 42
HDMI
SATA3
5 4
3 2

Gigabyte B365M GAMING HD Specifications

General

Form Factor	Micro ATX
Chipset	Intel B365
CPU Socket	LGA 1151
Memory Type	DDR4
Memory Slots	2
Max Memory	32 GB
Memory Speed	2666/2400/2133 MHz
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA 6Gb/s Ports	6
M.2 Slots	1
USB 3.1 Gen1 Ports	6
USB 2.0 Ports	6
Audio	Realtek ALC887
LAN	Realtek GbE LAN chip (10/100/1000 Mbit)
RAID Support	Yes
