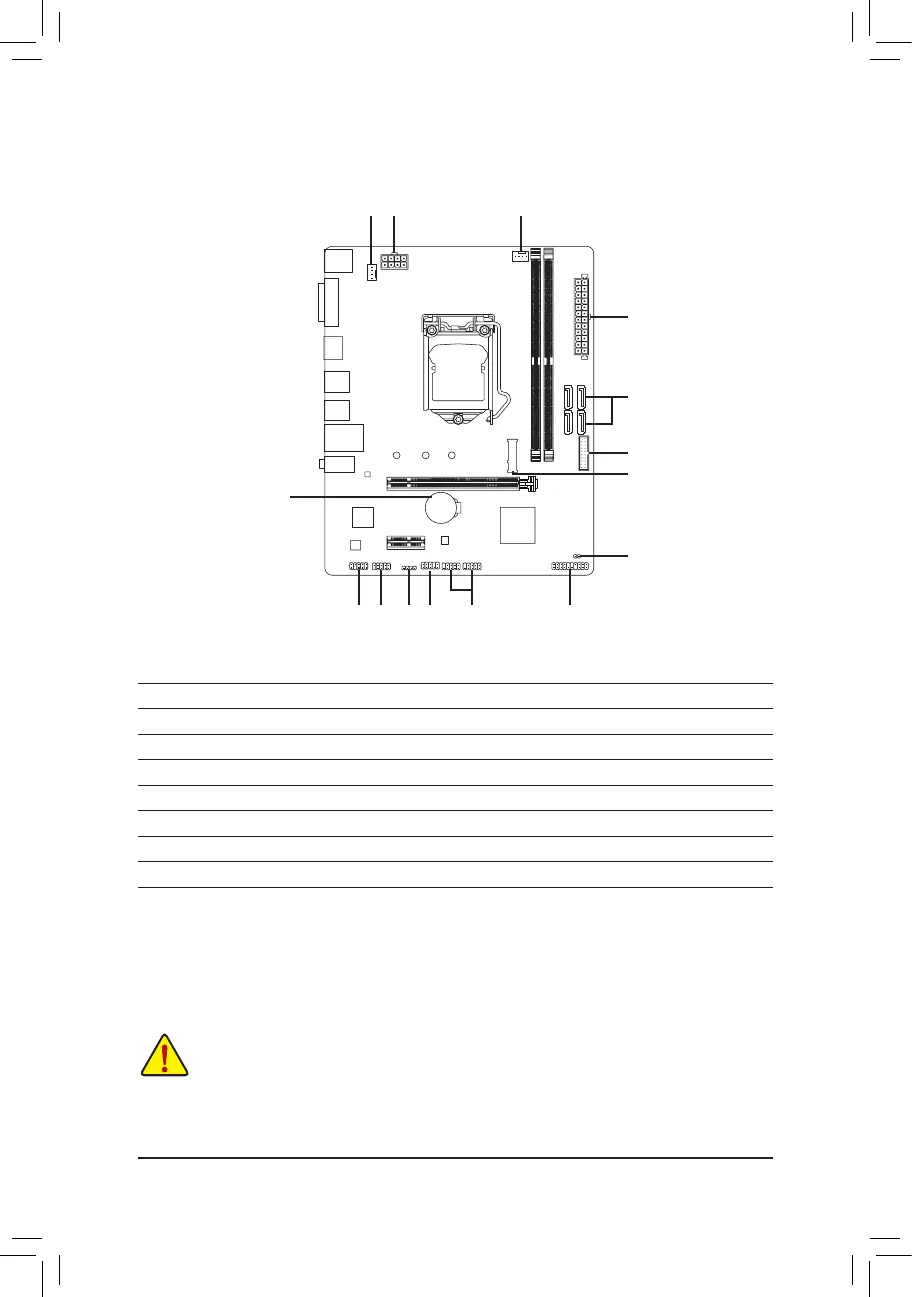

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN
5) LED_C
6) M2M_SB
7) SATA3 0/1/2/3
8) F_PANEL
9) F_AUDIO
10) F_U32
11) F_USB1/F_USB2
12) COM
13) SPI_TPM
14) CLR_CMOS
15) BAT
8
10
2
14
7
1113129
14
5
6
15
3
- 12 -

Gigabyte B460M H Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	Intel B460
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2933 MHz
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x16 slots	1
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of SATA III connectors	4
Number of Parallel ATA connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported

Weight and Dimensions

Depth	185 mm
Width	226 mm
