Gigabyte B760M AORUS PRO AX User Manual

- 21 -

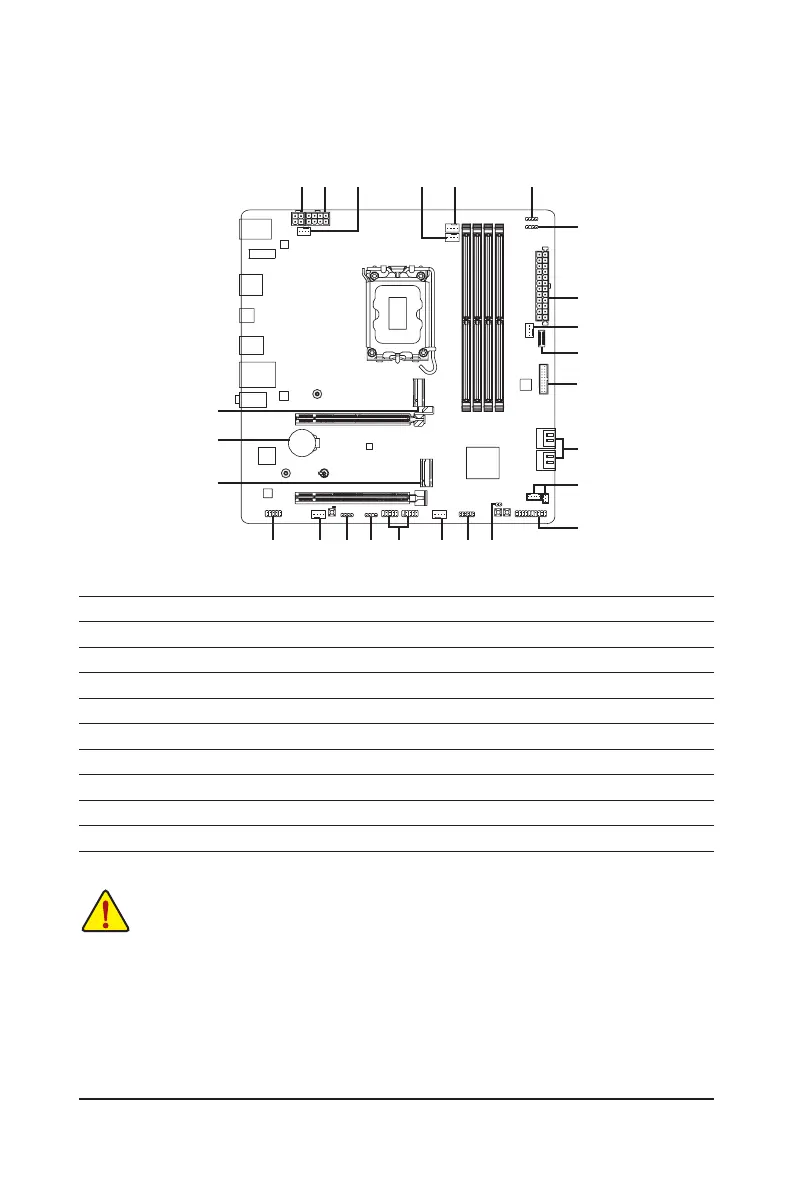

2-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
2
9
412 8
1 3
10
14
4
7 15
13
1) ATX_12V_2X2/ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SYS_FAN4_PUMP
6) CPU_OPT
7) LED_C1/LED_C2
8) D_LED1/D_LED2
9) SATA3 4/5/6/7
10) M2A_CPU/M2P_SB
11) F_PANEL
12) F_AUDIO
13) F_U32C
14) F_U32
15) F_USB1/F_USB2
16) SPI_TPM
17) THB_C1/THB_C2
18) BAT
19) RST
1
5
6
8
7
10
16
17
19
4
18
11
B760M AORUS PRO AX/B760M AORUS PRO
