Gigabyte GA-EP35C-DS3R User Manual

GA-EP35C-DS3R Motherboard - 22 -

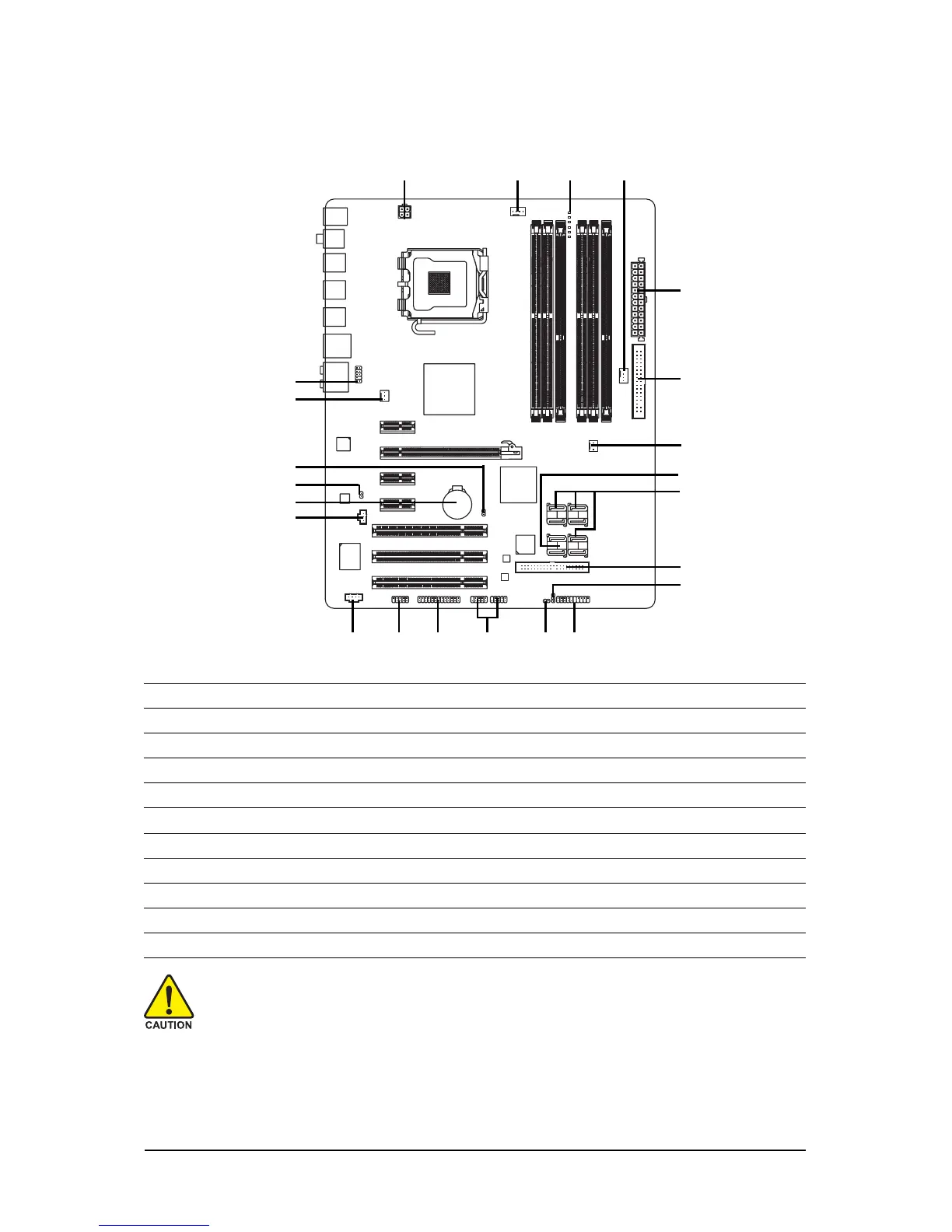

1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE1
8) PWR_LED
9) SATAII0/1/2/3/4/5
10) GSATAII0/1
11) BAT
12) F_PANEL
13) F_AUDIO
14) CD_IN
15) SPDIF_O
16) SPDIF_I
17) F_USB1/F_USB2
18) COMA
19) LPT
20) CLR_CMOS
21) CI
22) PHASE LED
2
1
17
6
9
7
13
16
21
3
12
11
20
4
8
4
5
15
191814
10
22
