Appendix- 73 -
B. Configuring Sound Effect:
You may configure an audio environment on the Sound Effect tab.

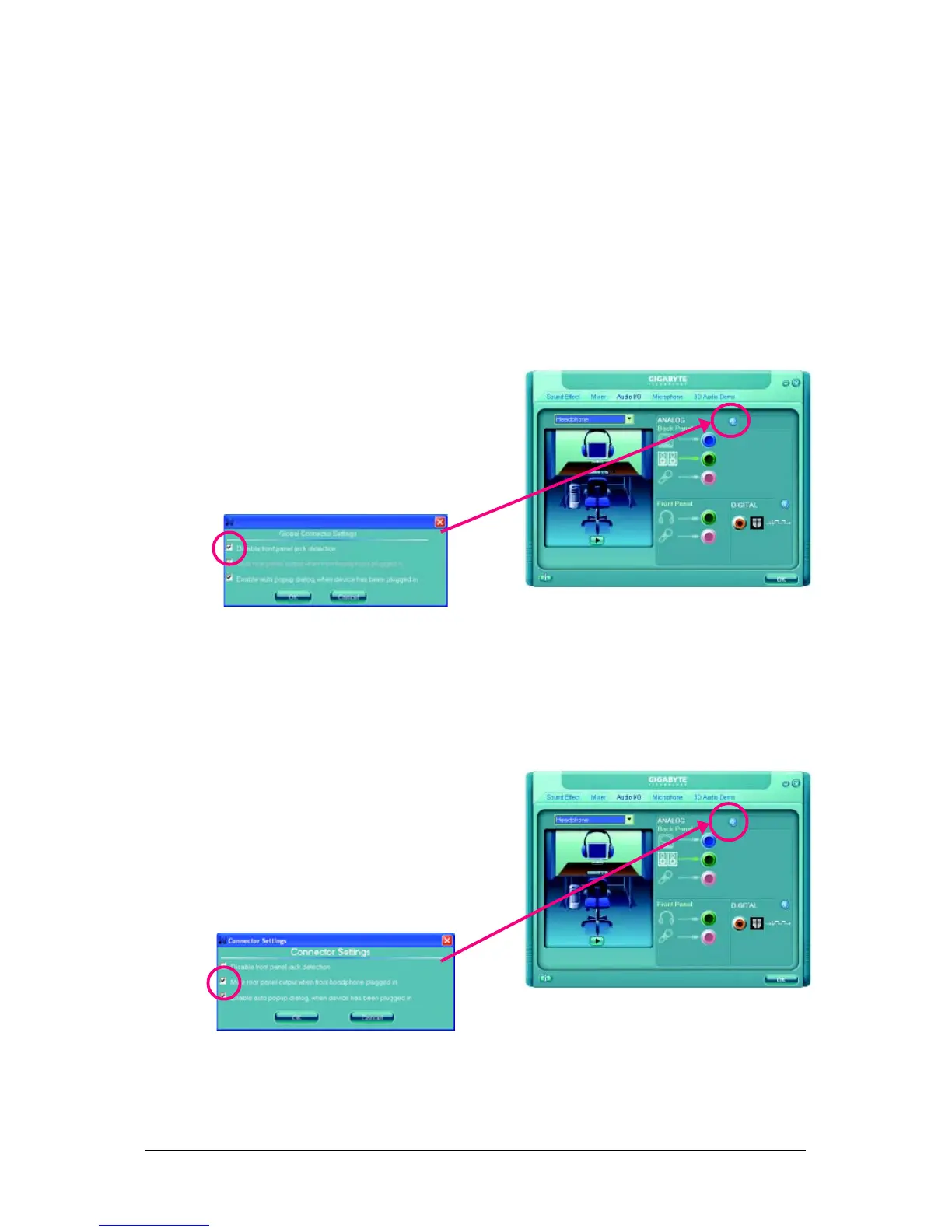

C. Activating an AC'97 Front Panel Audio Module:
If your chassis provides an AC'97 front panel audio
module, to activate the AC'97 functionality, click the
tool icon on the Audio I/O tab. On the Connector
Settings box, select the Disable front panel jack
detection check box. Click OK to complete.
D. Muting the Back Panel Audio (For HD Audio Only):
Click the tool icon on the Audio I/O tab. On the
Connector Settings box, select the Mute rear
panel output when front headphone plugged
in check box. Click OK to complete.

Gigabyte GA-G31M-ES2C Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	1
S/PDIF out port	No
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista, XP
Trial software	Norton Internet Security
Networking features	10/100 Mbit
BIOS type	AWARD

Weight and Dimensions

Depth	194 mm
Width	244 mm
