Gigabyte GA-G31M-S2L User Manual

GA-G31M-S2L/S2C Motherboard - 22 -

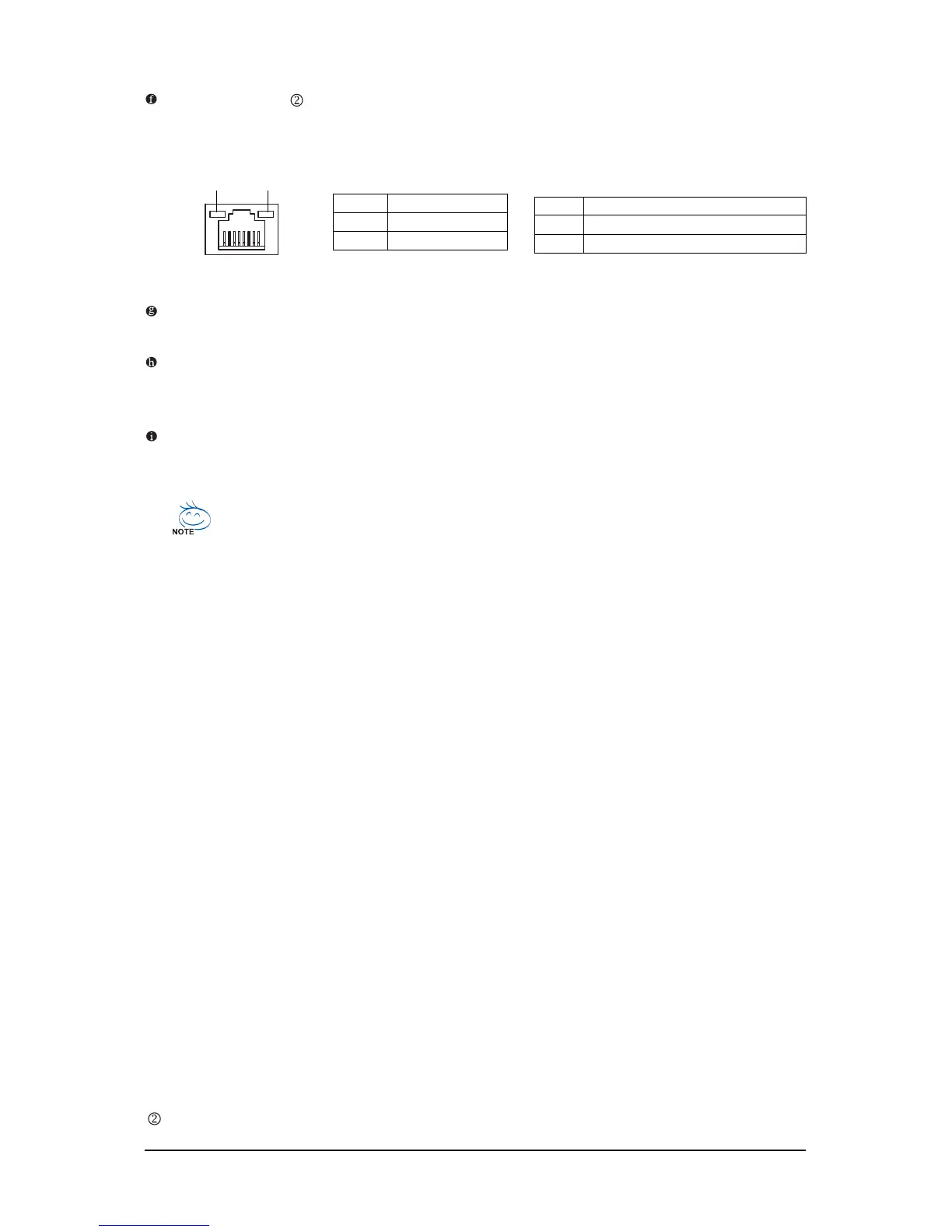

RJ-45 LAN Port
The Fast Ethernet LAN port provides Internet connection at up to 100 Mbps data rate. The following
describes the states of the LAN port LEDs.
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can
be used to connect front speakers in a 4/5.1-channel audio configuration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
Refer to the instructions on setting up a 2/4/5.1-channel audio configuration in Chapter 5,
"Configuring 2/4/5.1-Channel Audio."
Activity LED
Connection/
Speed LED
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Green 100 Mbps data rate
Off 10 Mbps data rate
LAN Port
Only for GA-G31M-S2C.

Gigabyte GA-G31M-S2L Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	1
Special features	-@BIOS -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 -Virtual Dual BIOS
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista/XP/2000
Graphics card	-

Weight and Dimensions

Depth	193 mm
Width	243 mm
